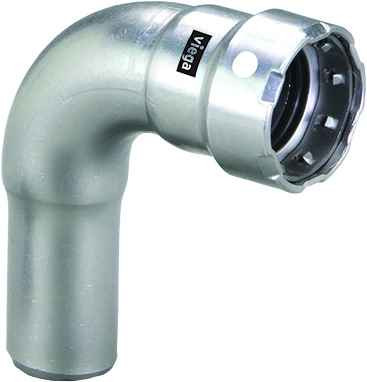

95050 Viega MegaPress 90° street elbow Smart Connect technology 304 stainless steel, 2'' x 2''
Manufacturer Resources
Product Specs
- Connection Type:
- P x FTG
- Country Of Origin:
- Made In Germany
- Material Type:
- 304 Stainless Steel
- Product Dimension:
- 2'' x 2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Elbows
- Product Type:
- Elbow
- Product Length:
- 6.528"
- Product Height:
- 2.894"
- Product Weight:
- 2.063 lbs
- Product Width:
- 6.016"
Viega 95050 – Frequently Asked Questions
1) Will the Viega MegaPress 95050 elbow work on 2 inch carbon steel pipe?
The 95050 is a 2 inch x 2 inch press elbow, so it presses onto 2 inch nominal pipe on the press end. The body is 304 stainless steel. MegaPress is a cold press system, no threading, no welding, and no open flame on the joint.
2) What is Smart Connect on Viega press fittings and why does it matter on a large job?
Smart Connect is a feature of the sealing element that leaves an unpressed fitting detectably leaking during pressure test, so a connection somebody skipped shows itself before the walls close up. On a run with dozens of 2 inch joints, that is the difference between finding one missed press at test and finding it after drywall.
3) Is the Viega 95050 elbow stainless or carbon steel, and where can I use it?
304 stainless steel body. Stainless MegaPress is the line you use where a carbon steel fitting would corrode, and it should be matched to stainless pipe rather than mixed casually with carbon steel in the same wet run, since dissimilar metals in contact invite galvanic corrosion. The fitting is made in Germany.
4) What part number do I order for a Viega 2 inch stainless MegaPress 90 degree street elbow?
Viega part number 95050. One model, 2 inch x 2 inch, P x FTG, 304 stainless. No handing, no finish, and no size options to specify, so the number is all your counter or PO needs.
5) Does a 2 inch stainless press elbow come with a sealing element, or do I buy that separately?
The sealing element is factory installed in the press socket of the 95050, so nothing separate is ordered for the joint itself. What is not included is the tooling: you need a press tool with the correct 2 inch jaw or ring for the connection.
6) How heavy is a 2 inch MegaPress elbow for overhead work and hanger spacing?
2.063 lbs each. Light enough that a single fitting is not driving your support layout, but on a run of 2 inch stainless with several street elbows the fitting weight adds up against the filled pipe load, so count them when you space hangers near the turns.
