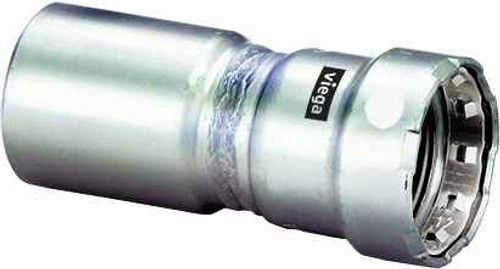

95345 Viega MegaPress reducer Smart Connect technology 304 stainless steel, 1-1/2'' x 1''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2
- Material Type:
- 304 Stainless Steel
- Product Dimension:
- 1-1/2'' x 1''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 4.614"
- Product Height:
- 2.437"
- Product Weight:
- 0.849 lbs
- Product Width:
- 2.437"
- Product Material:
- 304 stainless steel
Viega 95345 – Frequently Asked Questions
1) What size pipe does the Viega 95345 MegaPress fitting connect?
The MegaPress 95345 is a 1-1/2 inch by 1 inch reducing fitting, so it joins 1-1/2 inch pipe on one end and 1 inch on the other. Both ends are press connections (P1 x P2), not threaded or grooved, so you press them with a MegaPress jaw sized to each diameter.
2) Do I need to cut threads or weld to install the Viega 95345?
No. Both ends of the 95345 are press connections, so the install is cut, deburr, mark depth, and press. No threading, no cutting oil, no hot work permit, which is why these get specified for occupied buildings and retrofit work in healthcare and multi-family.
3) Can I use the Viega 95345 MegaPress on black iron pipe, or is it only for stainless?
The 95345 is built from 304 stainless steel, which is the body material of the fitting, not a restriction on the pipe. MegaPress press fittings are made for black iron and carbon steel pipe systems. The stainless body is what gives you corrosion resistance at the joint.
4) What is Smart Connect on the Viega 95345 and why does it matter on an install?
Smart Connect is a feature of the sealing element on the MegaPress 95345 that lets an unpressed connection leak visibly during pressure testing. On a run with a lot of joints, that is how you find the one you missed before the ceiling closes up.
5) How much room do I need to fit the 1-1/2 x 1 MegaPress reducer in a tight chase?
The 95345 measures 4.614 inches long and 2.437 inches in both height and width. Plan on more than that in clear space, because the press tool jaw has to close fully around the collar on each end before the joint is made.
6) Is the Viega 95345 MegaPress reducer a tee or a straight reducing coupling?
The 95345 is catalogued by Viega as a reducer in the 1-1/2 inch by 1 inch size, and the part weighs 0.849 lbs. If your drawing calls for a branch takeoff rather than a size change in a straight run, you want a reducing tee instead, which is a different part number in the MegaPress line.
7) Where is the Viega 95345 manufactured?
The MegaPress 95345 reducer is made in Germany. That matters on government and institutional jobs where country of origin has to be documented on the submittal.
