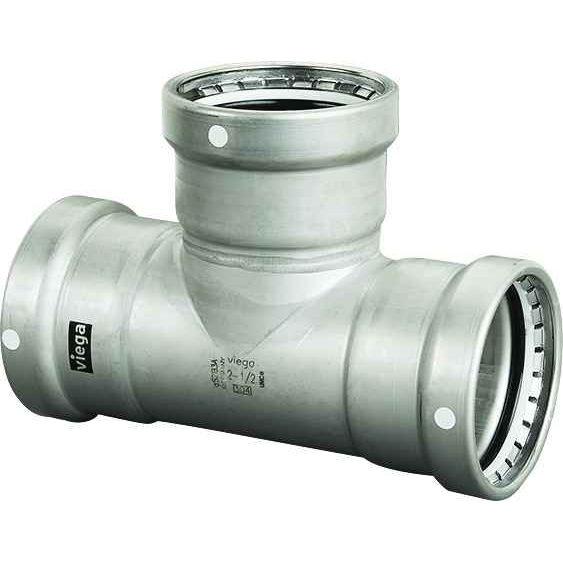

95595 Viega MegaPress tee Smart Connect technology 304 stainless steel, 3'' x 3'' x 2-1/2''
Manufacturer Resources
Product Specs
- Connection Type:
- P1 x P2 x P3
- Country Of Origin:
- Made In Germany
- Material Type:
- 304 Stainless Steel
- Product Dimension:
- 3'' x 3'' x 2-1/2''
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Length:
- 9.252"
- Product Height:
- 4.181"
- Product Weight:
- 4.351 lbs
- Product Width:
- 6.382"
Viega 95595 – Frequently Asked Questions
1) What size pipe does the Viega 95595 MegaPress tee connect?
The Viega 95595 MegaPress tee is a 3 inch x 3 inch x 2-1/2 inch reducing tee. The run is 3 inch on both ends and the branch reduces to 2-1/2 inch, so you get a 2-1/2 inch takeoff off a 3 inch main without adding a separate reducer or bushing.
2) Are all three ends of the Viega 95595 tee press connections?
Yes. The connection type is P1 x P2 x P3, meaning all three outlets are press ends. There is no threaded or grooved end on this fitting, so every joint gets made with a press tool and jaw sized for the corresponding pipe diameter.
3) How much room do I need to fit a 3 x 3 x 2-1/2 inch MegaPress tee in a ceiling or chase?
Plan around a 9.252 inch overall length, 6.382 inch width and 4.181 inch height for the fitting body. On top of that you need clearance for the press jaw or ring to swing around each of the three ports, so tight joist bays and boxed chases should be checked before you commit the layout.
4) Is the Viega 95595 MegaPress tee carbon steel or stainless?
It is 304 stainless steel. That matters when you are branching a line where carbon steel MegaPress would be the wrong call, and it also means you should confirm the rest of the run is compatible material so you are not creating a dissimilar metal joint you did not plan for.
5) What does Smart Connect technology do on this Viega tee?
Smart Connect is Viega's unpressed-joint detection feature. On the 95595 MegaPress tee it is built into the sealing element so that if a connection is left unpressed during pressure testing, it leaks noticeably rather than holding and failing later. On a three-outlet fitting like this it is worth walking each of the three ports after pressing, since a missed press on a branch is easy to overlook.
6) What part number and manufacturer should I put on a submittal for this stainless MegaPress tee?
Specify Viega MegaPress 304 stainless tee, part number 95595, 3 inch x 3 inch x 2-1/2 inch. It is made in Germany. That part number plus the size string is what a distributor or spec reviewer needs to match the fitting.
7) Does the Viega 95595 MegaPress tee come with sealing elements installed, or do I order them separately?
The sealing element is factory installed in each of the three press ports as part of the Smart Connect design. What you do need to supply separately is the press tool with jaws or rings sized for 3 inch and 2-1/2 inch, since a fitting this size typically needs the larger ring-and-actuator setup rather than standard small-diameter jaws.
8) How heavy is the Viega 95595 tee, and does it need supporting?
The fitting weighs 4.351 lbs on its own. At 3 inch stainless with a 2-1/2 inch branch, the fitting plus the water-filled pipe on either side is enough that hangers should land close to the tee rather than letting the branch cantilever off the main.
