Altronix ALTV2416ULX CCTV Powe...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$430.51
$338.14

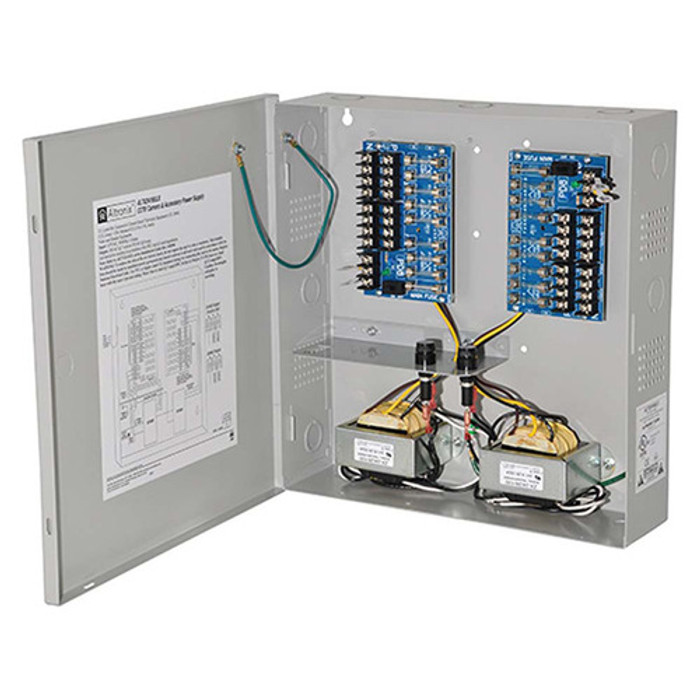

Altronix ALTV2416ULX CCTV Power Supply, Input 115VAC 50/60Hz at 1.8A, 16 Fuse Protected Outputs, 24VAC at 7A or 28VAC at 6A, Grey Enclosure

Altronix ALTV2416ULX CCTV Power Supply, Input 115VAC 50/60Hz at 1.8A, 16 Fuse Protected Outputs, 24VAC at 7A or 28VAC at 6A, Grey Enclosure

(No reviews yet) Write a Review

Model: ALTV2416ULX

In Stock (leaves warehouse same day if ordered before 3pm ET)

$430.51
$338.14
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Power Supply/Charger, Input 115VAC 60Hz at 3.5A, 8 Fused Outputs, 12/24VDC at 6A, Grey Enclosure

AL600ULPD8 is a multi-output power supply/charger that converts a 115VAC, 60Hz input into eight (8) 12VDC or 24VDC non power-limited outputs.

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP.



A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.



Altronix Power Supplies are ideal for a multitude of purposes, including:

  • General Use
  • CCTV
  • Fire Alarm
  • POIP

Manufacturer Resources

Product Specs

Warranty:
Lifetime
Subcategory:
Access Power Controller With Power Supplies
Commercial/Residential:
Commercial
Product Group:
Electronic Access Controls
Product Subgroup:
Power Supplies
Product Type:
Power Supplies
Current:
6A
Product Voltage:
120V
Product Category:
Electronic Access Controls
Department:
Door Hardware

Altronix ALTV2416ULX – Frequently Asked Questions

1) Does the Altronix ALTV2416ULX run off standard 120V building power?
Yes. The ALTV2416ULX is a 120V unit, so it lands on a standard single-phase 120VAC branch circuit in a North American building. No step-down transformer or dedicated high-voltage feed is needed ahead of it, but the circuit should be a dedicated one so a nuisance trip elsewhere doesn't drop your cameras.
2) How much current does the Altronix ALTV2416ULX put out, and how do I size a camera load to it?
Rated output current is 6A. Size by adding the draw of every camera you intend to land on it, including heater and blower loads on outdoor housings, which are usually the largest part of the number. Keep the total comfortably under the 6A figure rather than right at it so inrush on power-up doesn't push you over.
3) I need to power maglocks and electric strikes, not cameras. Is this the right Altronix unit?
No, look at a DC access control supply instead. The ALTV2416ULX is a CCTV-oriented supply on a 120V input. For locking hardware, the Securitron AQS1210 is a 12VDC 10 amp switching supply, and the Von Duprin PS902 is a 2A 12/24VDC base supply that's field selectable for access control. Pick the voltage your lock hardware calls for before you pick the amperage.
4) Which power supply should I use for a multi-door access control system instead of the Altronix ALTV2416ULX?
The ALTV2416ULX distributes AC power to CCTV devices. For multi-door access control, look at multi-output DC units: the RCI DKPS-2A provides 8 outputs at 12/24VDC and 2A for access control systems, and the BEST PS161-6 takes a 120V input and provides 12/24V output at 6A capacity for delayed egress exit devices. The Detex 10-800 Series pairs a 120VAC/24VDC power supply with a universal logic controller and battery backup if you also need sequencing and standby power.
5) What else could I look at if 6 amps is more capacity than my camera run needs?
Step down the amperage rather than paying for headroom you won't use. The SDC 634 is a 4 amp regulated and filtered low voltage supply with dual voltage selection, the SDC 632 is the 2 amp version, and the RCI DKPS-2A gives you 8 outputs at 12/24VDC at 2A if you still want the load split across multiple fused runs. Match output voltage type to your devices first, then the amperage.
6) I only need to power a couple of devices, not sixteen cameras. What is a smaller alternative to the Altronix ALTV2416ULX?
The ALTV2416ULX is built for large camera counts, with 16 individually fuse protected outputs and 6A of capacity at 120V input. For a one or two device job there are much smaller units: the Command Access PS1 is a 24VDC linear supply with a 1 amp output, the SDC 620 Series is a 1 amp regulated and filtered low voltage supply with dual voltage selection, and the ROFU 9126T is a plug in mini supply at 12VDC 1.5A with time delay. Note those are DC outputs, so confirm your device accepts DC before sizing down.
7) Is the Altronix ALTV2416ULX meant for commercial security installs or light residential use?
It's a commercial-duty unit, built for professional security work where a single enclosure feeds a bank of cameras rather than one or two devices. For a house with a couple of cameras it's more supply than the job needs, and a small single-output unit like the Command Access PS1, a 1 amp 24VDC linear supply, is closer to that scale.
8) Can an Altronix power supply like the ALTV2416ULX be used for fire alarm or PoIP loads as well as CCTV?
Altronix supplies are used across general use, CCTV, fire alarm and PoIP applications. That said, fire alarm work is governed by the authority having jurisdiction and the panel manufacturer's listing requirements, so confirm the specific model you're installing is acceptable for that circuit before you commit it to a life safety system.
9) Is the Locknetics LP Series a substitute for the Altronix ALTV2416ULX?
Not directly. The Locknetics LP Series 150 and 250 is a power supply supplied with an enclosure for door hardware power, while the ALTV2416ULX is an AC output CCTV supply feeding 16 fuse protected outputs at 24VAC 7A or 28VAC 6A from a 115VAC 50/60Hz input in a grey enclosure. Match the substitute to the load: LP Series for locking hardware, ALTV2416ULX for AC powered camera circuits.
