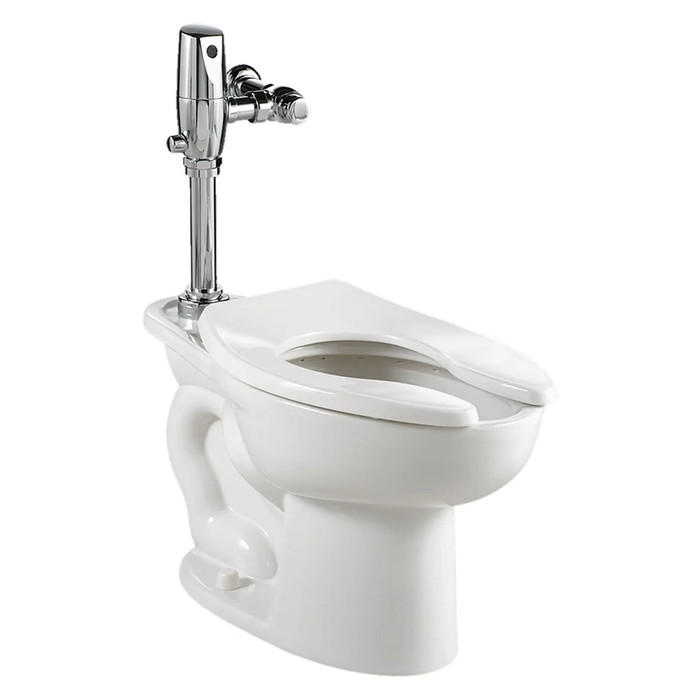

American Standard Madera Chair Height EverClean Toilet System With Touchless Selectronic Piston Flush Valve, 1.6 gpf/6.0 Lpf - AMS-3461660

American Standard Madera Chair Height EverClean Toilet System With Touchless Selectronic Piston Flush Valve, 1.6 gpf/6.0 Lpf - AMS-3461660

(No reviews yet) Write a Review

Model: 3461660.02
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$733.00
Adding to cart… The item has been added
Oversized item: ships for a flat $150.00 each. Excluded from free shipping.
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Madera Chair Height EverClean Toilet System With Touchless Selectronic Piston Flush Valve, 1.6 gpf/6.0 Lpf
  • Exclusive self-cleaning valve technology: DynaClean integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Manual override assurance: Fully mechanical override button for operation without power
  • Fail-safe operation: Valve automatically closes upon loss of power or water pressure
  • Resists dezincification: Made of proprietary brass alloy
  • Long-life battery is included: 8-year CR-P2 lithium battery installed in valve to eliminate downtime and the need for constant replacement
  • EverClean antimicrobial surface: Inhibits the growth of stain- and odor-causing bacteria, mold and mildew
  • Powerful flush: Direct-fed siphon jet flush action
  • Chair height: 16 ½” (419 mm) rim height enhances accessibility and comfort when sitting and standing
  • Fully glazed trapway: 2-1/8" (54 mm); 2" (51 mm) minimum ballpass
  • Inlet spud: 1-1/2" (38 mm);Rough-in: Available in 10" (254 mm) or 12" (305 mm)

Manufacturer Resources

Spec Sheet

Product Specs

Product Type:
Toilet System
Product Group:
Washroom/Bath
Product Subgroup:
Toilets
Department:
Plumbing
Country of Origin:
United States
Product Color:
White
Residential Commercial:
Commercial
Luxury/Non Luxury:
Non Luxury

American Standard 3461660.02 – Frequently Asked Questions

1) Does the American Standard Madera 3461660 toilet system come with the flush valve, or do I order that separately?
It ships as a complete system: the Madera chair height bowl plus a touchless Selectronic piston flush valve rated 1.6 gpf / 6.0 Lpf. The valve has an 8-year CR-P2 lithium battery already installed, so there is no hardwiring and no separate valve line item to add to the order.
2) What rough-in does the Madera EverClean touchless toilet need?
The Madera is offered in a 10 inch (254 mm) and a 12 inch (305 mm) rough-in, so measure from the finished wall to the center of the closet flange before you order. The inlet spud is 1-1/2 inch (38 mm), which is the standard commercial flushometer supply size.
3) What happens to the touchless flush valve if the power or water drops in the building?
The valve is fail-safe: it closes automatically on loss of power or loss of water pressure, so you do not get a stuck-open flushometer flooding a restroom. There is also a fully mechanical override button on the valve, so a janitor or tenant can flush by hand with no power at all.
4) Will this toilet handle high-traffic restroom use without clogging?
The trapway is fully glazed at 2-1/8 inches (54 mm) with a 2 inch (51 mm) minimum ballpass, and it uses a direct-fed siphon jet flush. That ballpass is what matters in a public restroom where paper volume is unpredictable. The EverClean antimicrobial surface on the china also inhibits stain and odor causing bacteria, mold and mildew, which cuts down what housekeeping has to scrub.
5) We have hard water and our flushometers keep running on. Does this valve address that?
That is what the DynaClean feature targets. An integral wiper spring cleans the refill orifice on every flush, which is the orifice that fouls and causes valve run-on. The valve body is also a proprietary brass alloy that resists dezincification, which is the other common failure mode on aggressive water.
6) Do I need a tank or supply line for the Madera 3461660?
No tank. This is a flushometer bowl, so it feeds off the building supply through a 1-1/2 inch (38 mm) top spud and the included Selectronic piston valve. You will need a supply capable of flushometer demand at the wall, plus a seat, which is not part of the fixture.
7) What color does the Madera 3461660 toilet system come in, and what is the part number?
White only, ordered as American Standard 3461660.02. The .02 suffix is the white china code, so if you are standardizing fixtures across a building, this one matches other American Standard white commercial bowls.
