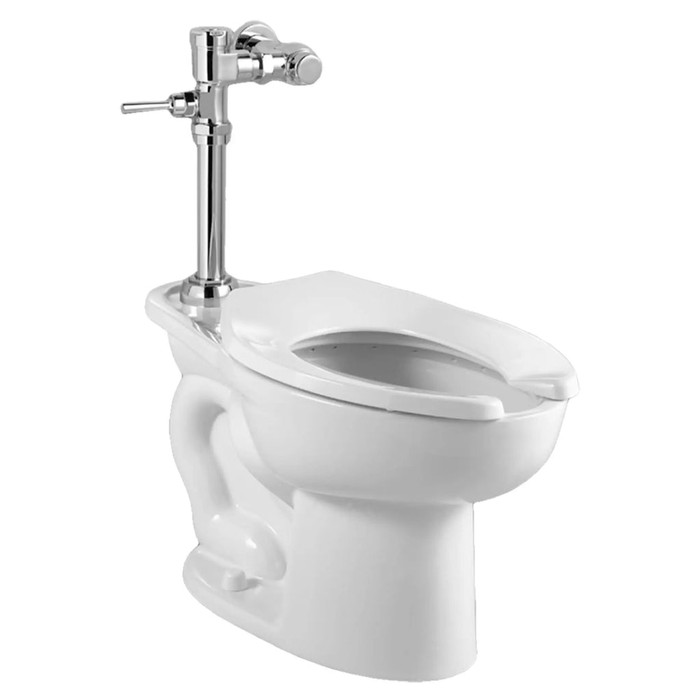

American Standard Madera Chair Height Toilet System With Manual Piston Flush Valve, 1.6 gpf/6.0 Lpf - AMS-2857016

American Standard Madera Chair Height Toilet System With Manual Piston Flush Valve, 1.6 gpf/6.0 Lpf - AMS-2857016

(No reviews yet) Write a Review

Model: 2857016.02
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$340.00
Adding to cart… The item has been added
Free Shipping on orders over $199.99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Madera Chair Height Toilet System With Manual Piston Flush Valve, 1.6 gpf/6.0 Lpf
  • Maximum 1,000 gram MaP Score
  • Elongated floor mount flushometer bowl, top spud, less seat
  • 16-1/2" (419 mm) rim height for accessible application
  • Static weight load of 2,500 lbs (1,134 kg)
  • Conventional glaze
  • Condensation channel
  • Manual piston-operated flush valve
  • Exclusive DynaClean self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Non-hold open handle provides automatic shut-off

Manufacturer Resources

Spec Sheet

Product Specs

Product Type:
Height Toilet
Product Group:
Washroom/Bath
Product Subgroup:
Toilet
Department:
Plumbing
Product Color:
White
Country of Origin:
United States

American Standard 2857016.02 – Frequently Asked Questions

1) Does the American Standard Madera flushometer toilet come with a tank, or do I need a separate flush valve?
The Madera chair height toilet system ships as a complete flushometer setup: the elongated floor mount flushometer bowl plus a manual piston-operated flush valve rated 1.6 gpf / 6.0 Lpf. There is no tank, because this is a flushometer bowl fed by the valve off a supply line. The bowl is top spud, so the valve connects at the top of the bowl rather than the back.
2) Is a seat included with the Madera chair height flushometer toilet?
No seat is included. The bowl is supplied less seat, so an elongated open front seat has to be ordered separately to finish the fixture. For commercial restrooms that usually means an open front, less cover seat to meet the plumbing code requirement for public facilities.
3) Is the Madera chair height bowl tall enough for an ADA-compliant restroom stall?
The rim height is 16-1/2 inches (419 mm), which American Standard calls out as the accessible application height. Add a seat and the seated height lands in the 17 to 19 inch band that accessible fixtures are normally specified to. Confirm the seat thickness you pair with it, since the 16-1/2 inch figure is the china rim only.
4) How well does this 1.6 gpf commercial toilet clear waste?
It carries a maximum 1,000 gram MaP score, the top of the MaP scale, at 1.6 gallons per flush. For an MRO or facilities buyer that is the number that predicts fewer double flushes and fewer plunger calls in a busy public restroom.
5) What stops the flush valve from running on and wasting water?
The valve uses American Standard's DynaClean self-cleaning wiper spring. An integral wiper spring scrubs the refill orifice on every flush, which is the orifice that clogs with grit and causes a flushometer to run on. The handle is also non-hold open, so it shuts off automatically even if someone leans on it.
6) Is this a manual or sensor flush toilet?
Manual. The Madera system here uses a piston-operated flush valve with a handle, not an infrared sensor. If the spec on the drawing calls for hands-free operation, this is the wrong configuration and you want a sensor-operated flushometer version instead.
7) What part number and color does the Madera chair height toilet system come in?
It is sold as American Standard part 2857016.02, the .02 suffix being white china. White is the only finish offered on this configuration, which suits standardizing a whole building of restrooms on one fixture.
8) Can I use a round front seat on this toilet?
No. The bowl is elongated, so it takes an elongated seat. A round front seat will not cover the rim correctly. Elongated is also what most commercial and accessible restroom specs call for.
