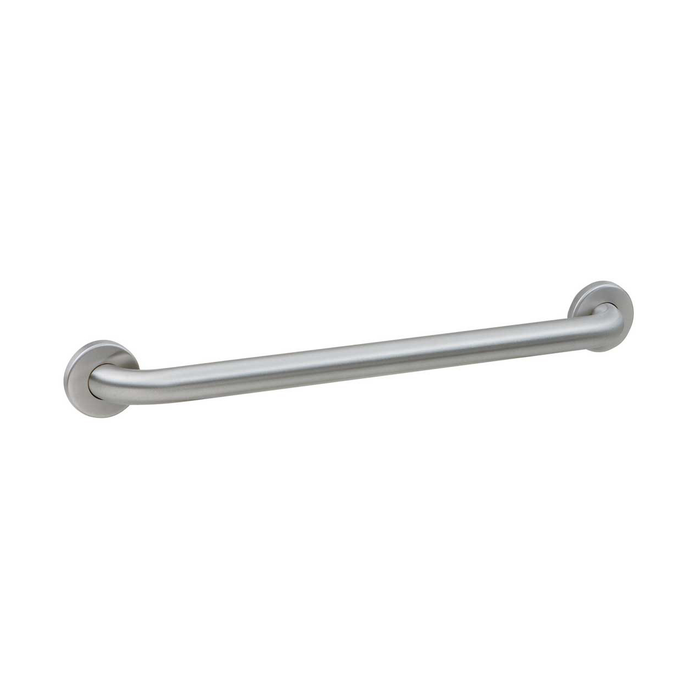

Bobrick B-5806 Series Straight Grab Bar

Bobrick B-5806 Series Straight Grab Bar

(No reviews yet) Write a Review

Model: 5806x12

In Stock (leaves warehouse same day if ordered before 3pm ET)

$64.43
$36.33
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bobrick 1-1/4 In Diameter Straight Grab Bar

1-1/4″ (32mm) diameter tubing. Satin-Finish, slip-resistant surface stainless steel grab bar for bath/shower/toilet compartment. Snap Flange. Add .99 for peened surface.

Available lengths straight/satin

  • B-5806 x 18: 18″ (455mm)
  • B-5806 x 24: 24″ (610mm)
  • B-5806 x 30: 30″ (760mm)
  • B-5806 x 36: 36″ (915mm)
  • B-5806 x 42: 42″ (1065mm)
  • B-5806 x 48: 48″ (1220mm)

Available lengths straight/peened

  • B-5806.99 x 18: 18″ (455mm)
  • B-5806.99 x 24: 24″ (610mm)
  • B-5806.99 x 30: 30″ (760mm)
  • B-5806.99 x 36: 36″ (915mm)
  • B-5806.99 x 42: 42″ (1065mm)
  • B-5806.99 x 48: 48″ (1220mm)

Features

  • Stainless steel, satin finish
  • Surface Mount
  • 42″ L x 1-1/4″ Diameter
  • Cover snaps over mounting flange to conceal screws
  • This unit meets ADA Accessibility Guidelines in the U.S.

Resources:

Manufacturer Resources

Product Specs

Capacity:
450 lbs
Product Type:
Grab Bars
Product Group:
Washroom/Bath Accessories
Product Subgroup:
Grab Bars
Product Diameter:
1-5/16"
Department:
Plumbing

Bobrick 5806x12 – Frequently Asked Questions

1) Does the Bobrick B-5806 grab bar meet ADA requirements?
Yes. The B-5806 straight grab bar meets ADA Accessibility Guidelines in the U.S. The 1-1/4 inch (32mm) tubing diameter is the size ADA calls for on a circular grab bar, and the surface is satin-finish slip-resistant stainless steel. Pick the length that suits the fixture: 36 and 42 inch bars are the usual pair behind and beside a water closet, and 18 or 24 inch bars are common in shower compartments.
2) What lengths does the B-5806 straight grab bar come in?
Seven sizes: 12, 18, 24, 30, 36, 42 and 48 inches. Bobrick lists the standard run as B-5806 x 18 (455mm), x 24 (610mm), x 30 (760mm), x 36 (915mm), x 42 (1065mm) and x 48 (1220mm), and a 12 inch is also offered. Order by length, for example B-5806 x 36.
3) What is the difference between the B-5806 and the B-5806.99 peened grab bar?
Same bar, different gripping surface. The standard B-5806 has a satin-finish slip-resistant surface. The .99 suffix, ordered as B-5806.99 x 36 for example, gets a peened (dimpled) surface, which gives more grip with wet or soapy hands and is often specified for shower and gang-shower use. Peened is available in the same 18 through 48 inch lengths.
4) Will the mounting screws be visible on the Bobrick B-5806 grab bar?
No. It uses a snap flange: a cover snaps over the mounting flange after the bar is fastened, hiding the screws. That is what makes it a clean surface-mount install on a finished tile or panel wall, and it is why the flanges need to land on solid backing before the covers go on.
5) Is the Bobrick B-5806 concealed mount or surface mount?
Surface mount. The flanges sit on the face of the finished wall and fasten through it into blocking or anchors, so no wall opening or behind-the-wall access is needed. That makes it the practical choice for a retrofit into an existing restroom or apartment bathroom where you are not opening the wall. If the spec calls for a concealed-mount bar, this is not that bar.
6) Is the B-5806 grab bar stainless steel, and will it hold up in a commercial shower?
Stainless steel with a satin finish throughout, which is what gets specified for high-traffic public and multi-family washrooms because it does not rust out or chip like coated bars in constant wet use. For a fleet standardization across a building, the same series covers toilet compartments and shower compartments, so one bar family handles both.
7) What diameter is the Bobrick B-5806 grab bar tubing?
The tubing is 1-1/4 inch (32mm), with a listed product diameter of 1-5/16 inch. ADA-compliant circular grab bars fall in the 1-1/4 to 2 inch range, so it grips correctly for accessible installations. If you are matching bars already on other openings in the building, confirm the existing ones are 1-1/4 rather than 1-1/2 so the visual run stays consistent.
