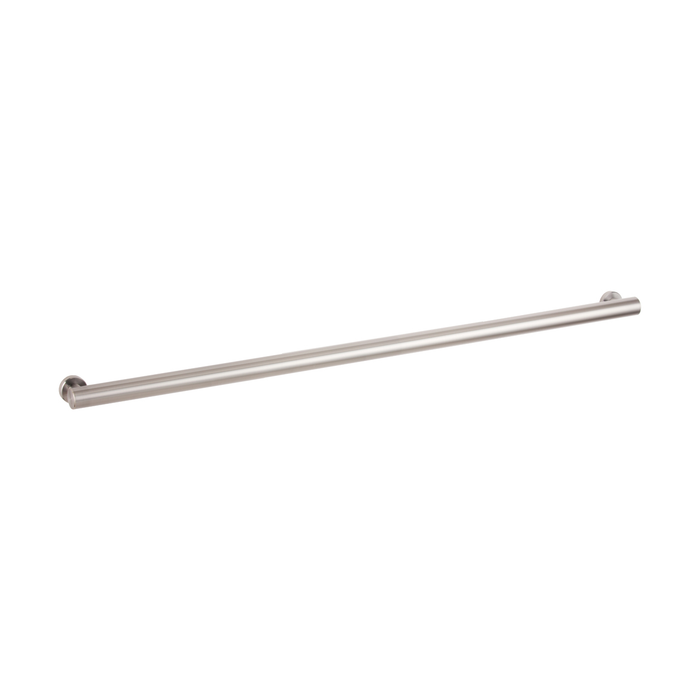

Bobrick B-9806 Straight Grab Bar in Satin Finish Stainless Steel
1½″ (38mm) Diameter Stainless Steel Grab Bars with Concealed Flange. ADA/DDA compliant.
Available lengths:
- B-9806 x 18: 18″ (457mm)
- B-9806 x 24: 24″ (610mm)
- B-9806 x 30: 30″ (762mm)
- B-9806 x 36: 36″ (914mm)
- B-9806 x 42: 42″ (1067mm)
- B-9806 x 48: 48″ (1219mm)
Depth: 1-1/2″
- Tube Diameter: 1-1/2″ (38.1mm)
- Gauge: 14 (2mm)
- Body Material: Type 303 stainless steel.
- Finish: Satin finish as standard.
- Available in matte black finish.
Features
- Stainless steel, satin finish
- Surface Mount
- 12″ L x 1-1/2″ Diameter
- Cover snaps over mounting flange to conceal screws
- This unit meets ADA Accessibility Guidelines in the U.S.
Product Specs:
- Finish: Satin-Finish Stainless Steel
- Configuration: Straight
- Diameter: 1-1/2" (38mm)
- Accessibility: ADA Compliant
Resources
Manufacturer Resources
Product Specs
- Capacity:
- 1,322 lbs
- Product Style:
- Straight
- Product Type:
- Grab Bars
- Features:
- ADA Compliant
- Product Group:
- Washroom/Bath Accessories
- Product Subgroup:
- Grab Bars
- Product Diameter:
- 1-1/2"
- Product Material:
- Stainless Steel
- Department:
- Plumbing
Bobrick 9806X18.MBLK – Frequently Asked Questions
1) Does the Bobrick B-9806 grab bar meet ADA requirements for a restroom?
The B-9806 straight grab bar meets ADA Accessibility Guidelines in the U.S., and it's built on the 1-1/2 inch (38mm) tube diameter that ADA calls for in a grippable bar. Lengths run 18, 24, 30, 36, 42 and 48 inches, so you can cover the side wall and rear wall runs a compliant stall needs.
2) How does the Bobrick B-9806 mount, and do the screws show?
It's a surface mount bar with a concealed flange. The flange is fastened to the wall, then a cover snaps over it and hides the screws, so you get a clean face with no exposed fasteners in a public restroom. Projection from the wall is 1-1/2 inches.
3) Which length grab bar do I need for an ADA toilet stall?
For a standard accessible stall, the side wall bar is typically 42 inches and the rear wall bar 36 inches, which is why those two sizes move fastest. The B-9806 covers both, plus 18, 24, 30 and 48 inch for tub, shower and ambulatory stall layouts. Verify against the dimensions on your drawing before you order a fleet.
4) What lengths and finishes can I order the B-9806 in?
Six lengths: 18, 24, 30, 36, 42 and 48 inches. Finish is satin stainless as standard, and matte black is also offered - the black option is stocked in 18, 24, 36, 42 and 48 inch. Length and finish are specified separately when you order, for example B-9806 x 36.
5) Is the B-9806 a straight bar or does it come in a corner or angled shape?
Straight only. All six lengths of the B-9806 are single straight runs with a flange at each end. If your layout calls for an L-shape or a swing-up bar at a rear wall or lavatory, that's a different Bobrick model, not a length option on this one.
6) Can I mix matte black and satin B-9806 bars across the same building?
Yes - the bar is the same 1-1/2 inch diameter, 14 gauge Type 303 stainless, concealed-flange straight bar in either finish, so the mounting footprint and capacity don't change with the color. Matte black is usually chosen to match a design package; satin stainless is the standard institutional look. Order the same length in either.
