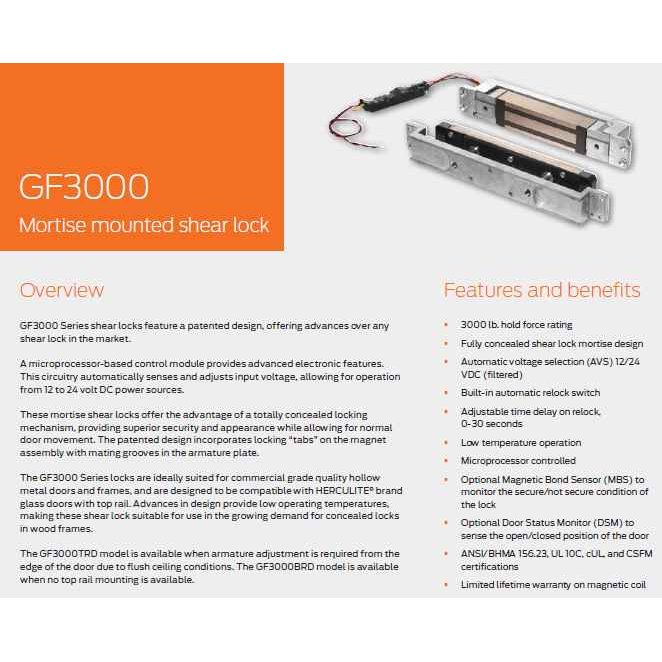

Schlage Electronics GF3000TRD - Mortise Mounted Shear Lock - 3000 lbs HoldIng Force, Top Rail Door

Schlage Electronics GF3000TRD - Mortise Mounted Shear Lock - 3000 lbs HoldIng Force, Top Rail Door

(No reviews yet) Write a Review

Model: GF3000TRD

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,443.00
$1,819.05
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

GF3000 MORTISE MOUNTED SHEAR LOCKS FEATURES AND BENEFITS

  • 3000 lb. hold force rating;
  • Fully concealed shear lock mortise design;
  • Automatic voltage selection (AVS) 12/24 VDC (filtered);
  • Built-in automatic relock switch;
  • Adjustable time delay on relock, 2-30 seconds;
  • Low temperature operation;
  • Microprocessor controlled;
  • Optional Magnetic Bond Sensor (MBS) and Door Status Monitor (DSM) to monitor the secure/not secure condition of the lock and to sense the open/closed position of the door;
  • ANSI/BHMA 156.23, UL 10C, cUL, and CSFM certifications;
  • Limited lifetime warranty on magnetic coil assembly.



SCHLAGE GF3000 SERIES OVERVIEW

The GF3000 Series electromagnetic shear locks are available in mortise mount or low profile surface mount options. Both feature superior hold force with advanced microprocessor controlled electronic features including auto sensed voltage, auto relocking, adjustable relock time delay and options for integrating into an access control system.

The mortise shear lock offers the advantage of a totally concealed locking mechanism, providing superior security and appearance while allowing for normal door movement. The patented design incorporates locking tabs on the magnet assembly with mating grooves in the armature plate. The surface mounted model provides powerful hold force in a low profile design.

All Schlage electromagnetic locks come with a limited lifetime warranty on the magnetic coil assembly for added confidence in the longevity of these robust products.



FEATURES & BENEFITS

Applications

  • Maximum security: 3000 lb. rated hold force;
  • Surface mounted shear locks for inswinging and outswinging doors;
  • Mortise mounted shear locks for top and bottom door or rail installation.

Installation

  • Automatic voltage selection (AVS) for 12 and 24 VDC;
  • Able to jump a 1/4" gap - no in-rush current.

Features

  • Microprocessor controlled;
  • Adjustable relocking time delay 0-30 seconds;
  • Low temperature operation allows mortise mount use on wood frames.

Integration

  • Connect to most access control systems;
  • Optional door status monitor and magnetic bond sensor  .



CERTIFICATIONS

  • UL10C listed for positive pressure fire tests of door assemblies: 3 hour;
  • ANSI/BHMA A156.23 Grade 1;
  • cUL;
  • CSFM.

Delayed egress models

  • UL 10C listed for positive pressure fire tests of door assemblies: 3 hour ;
  • UL special locking arrangements;
  • Meets NFPA 101 life safety code;
  • ANSI/BHMA 156.24;
  • cUL;
  • CSFM.
  • UL294 listed for access control system.



SPECIFICATIONS

Models

  • All models offer optional magnetic bond sensor (MBS) and door status monitor.

Surface mount

  • GF3000SM with 3000 lb. hold force for use on outswinging doors;
  • GF3000TJ with 3000 lb. hold force for use on inswinging doors.

Concealed mortise mount

  • GF3000 with 3000 lb. hold force for use on top of door or top rail;
  • GF3000TRD with 3000 lb. hold force for use on top of door or top rail when air gap adjustment is not accessible after door is hung;
  • GF3000BRD with 3000 lb. hold force for use on bottom of door or bottom rail.

Power

  • Input voltage: auto selected 12/24 VDC (filtered);
  • Current draw: .90A @ 12 VDC; .45A @ 24 VDC.

Operating temperature

  • 0° to 49°C (0° to 120° F).

Finish

  • Surface mount models come in satin black, anodized housing.

Additional information

DOWNLOADS & RESOURCES

Manufacturer Resources

Product Specs

Subcategory:
Electromagnetic Locks
Series:
GF3000 Series
UL Listing Type:
UL 10C/cUL CSFM ANSI/BHMA 156.23
Holding Force:
3000
Product Group:
Electronic Access Controls
Product Subgroup:
Electromagnetic Locks
Product Type:
Shear Locks
ANSI/BHMA:
ANSI/BHMA 156.23, UL 10C, cUL, and CSFM certifications
Temperature Range:
0 Degrees to 49 Degrees C (0 Degrees to 120 Degrees F)
Commercial/Residential:
Commercial
Battery Operated:
No
Door Type:
On Top of Door or Top Rail
Electronic:
Yes
Lock Type:
Mortise
Compatibility:
Maximum Security
Power:
900/450mA at 12/24 VDC
Duty Level:
Heavy Duty
Fail-safe / Fail-secure:
Fail-Safe
Product Voltage:
12/24VDC
Mounting Method:
Mortise
Product Category:
Electronic Access Controls
Product Substrate:
Aluminum
Department:
Door Hardware

Schlage Electronics GF3000TRD – Frequently Asked Questions

1) Will a Schlage GF3000TRD shear lock work if I can't get to the air gap adjustment after the door is hung?
That's exactly what the TRD is for. The GF3000TRD is the mortise mounted version built for top of door or top rail installs where the air gap adjustment is not accessible once the door is hung. If you can still reach the adjustment after hanging, the standard GF3000 covers the same top of door or top rail application. For the bottom of the door or bottom rail, use the GF3000BRD instead.
2) Should I use a concealed mortise shear lock or a surface mounted maglock on a glass storefront door?
A mortise shear lock like the GF3000TRD hides the locking mechanism completely inside the door and frame, so nothing shows on the opening and the door swings normally. That's the reason to pick it: security plus appearance. The tradeoff is that the door and frame have to be prepped for a mortise, which usually means specifying it before the doors are built. If the opening is already hung and you can't cut a mortise, the surface mounted GF3000SM (outswinging) or GF3000TJ (inswinging) gives the same 3000 lb hold force in a low profile housing you can mount on the face of the frame.
3) Does the Schlage GF3000TRD unlock in a fire alarm or power failure?
Fail-safe, so the lock releases the moment power is removed. That is the required behavior for an electromagnetic lock on an egress door tied into a fire alarm or access control release. Plan the wiring so the alarm and the release device both drop power to the lock. If your application needs the door to stay locked without power, a shear lock is the wrong device type.
4) What power supply do I need for a Schlage GF3000 shear lock, and can I run it on my existing 12 volt supply?
Either 12 or 24 VDC filtered works. Automatic voltage selection means the lock senses which one it's on, so there's no jumper to set. Size the supply for 900 mA at 12 VDC or 450 mA at 24 VDC per lock. There's no in-rush current, so you don't need to pad the supply for a startup surge. On a multi-door job, 24 VDC halves the current per opening and is easier on long wire runs.
5) Which Schlage GF3000TRD do I order if I need to monitor whether the door is actually locked?
Two build options ship on the GF3000TRD: one without monitoring, and a DSM/MBS version with both the door status monitor and the magnetic bond sensor. The magnetic bond sensor reports the secure or not secure condition of the lock itself, and the door status monitor reports whether the door is open or closed. If the head end needs a real lock status point rather than just a door position switch, order the DSM/MBS version. It has to be specified up front, since it's built into the lock.
6) Is the Schlage GF3000 shear lock fire rated and Grade 1?
It carries ANSI/BHMA A156.23 Grade 1, UL 10C listing for positive pressure fire tests of door assemblies at 3 hour, cUL, and CSFM. That's the set of listings a hospital, school, or government facility spec usually calls for on an electromagnetic lock at a rated opening.
7) Will a Schlage GF3000 shear lock hold if the door is warped or the gap isn't perfect?
The magnet jumps a 1/4 inch gap, so a door that doesn't sit dead flat against the strike still bonds. Hold force is 3000 lb, and the patented design uses locking tabs on the magnet assembly that mate with grooves in the armature plate, so the load is taken mechanically in shear rather than purely by magnetic pull. That's the difference between a shear lock and a conventional face-mounted maglock.
8) Which shear lock do I specify for a fire rated opening that needs a UL 10C listing?
The Schlage GF3000TRD carries UL 10C, cUL, CSFM and ANSI/BHMA A156.23 listings, and it is a fail-safe device, meaning it releases the door on loss of power. The SDC HiShear 1560, 1561S, 1561TJ and 1562SC Series are all heavy duty shear locks, and where the submittal has to show the UL 10C and ANSI/BHMA A156.23 listings, the GF3000TRD is the unit that carries them.
9) Can I mortise a Schlage GF3000TRD into a wood frame, or use it on an unheated exterior opening?
Both are fine. Low temperature operation is what allows the mortise mount version to be used on wood frames, and the rated range runs 0 to 49 degrees C (0 to 120 degrees F). That covers an unconditioned vestibule, a parking structure, or a loading dock in most of the country. The housing is aluminum.
10) How do I keep the door from relocking on someone's fingers after they push through?
There's a built-in automatic relock switch with an adjustable time delay, so you set how long the magnet stays de-energized after the door swings before it re-bonds. The range is 2 to 30 seconds. Set it long enough for the door to close and settle, then bond. Adjusting that delay is a field setting on the lock, not a separate module.
11) Will the GF3000TRD tie into my existing access control panel?
It connects to most access control systems and runs microprocessor controlled off a standard 12 or 24 VDC filtered output, so a card reader panel, a REX device, or a keypad relay all drive it the same way, by dropping power. On the DSM/MBS version you also get the two monitoring outputs to bring back to the panel for lock status and door position. Nothing proprietary is required on the head end.
12) Is a shear lock like the GF3000TRD suitable for a residential door?
No. The GF3000TRD is a commercial, heavy duty device intended for maximum security openings, and it needs a constant 12 or 24 VDC supply plus a fire alarm release path to be code compliant on an egress door. It has no battery option. For a house or a single apartment unit, a mechanical deadbolt or a battery powered residential smart lock is the right category.
13) What is the difference between a semi-concealed shear lock like the SDC 1562SC and the Schlage GF3000TRD?
The SDC HiShear 1562SC Series is a semi-concealed electromagnetic shear lock with 2000 lb holding force, so part of the assembly remains visible at the opening. The GF3000TRD is a fully mortise mounted unit at 3000 lbs, with the magnet concealed in the top of the door or top rail. The 1562SC suits a frame or door that will accept a partial pocket only; the GF3000TRD requires the full mortise prep.
14) Is the SDC 1561TJ a drop-in replacement for a Schlage GF3000TRD?
No. The SDC HiShear 1561TJ Series mounts to the surface at the top jamb, while the GF3000TRD is mortise mounted into the top of the door or top rail with a mortise lock type. Swapping one for the other means a different prep at the opening, not a bracket change, and the 1561TJ is rated 2000lb against the GF3000TRD at 3000 lbs.
15) I am standardizing electromagnetic shear locks across a facility on 12/24 VDC - how do the options compare?
The Schlage GF3000TRD runs on 12/24VDC with automatic voltage selection, drawing 900/450mA at 12/24 VDC, so a single unit works on either bus voltage already in the building. It is a commercial, heavy duty, non battery operated device with an aluminum body. The SDC HiShear 1560, 1561S, 1561TJ and 1562SC Series are heavy duty shear locks covering concealed, surface, top jamb and semi-concealed mounting, so a facility mixing prep types can carry the GF3000TRD where the mortise pocket exists and an SDC HiShear model where it does not.
