ABH ABH E019-1.5 Intermediate Pivot (8) 28 Ga. Wires - Electrified - 1-1/2" Offset ABH-E019-1.5

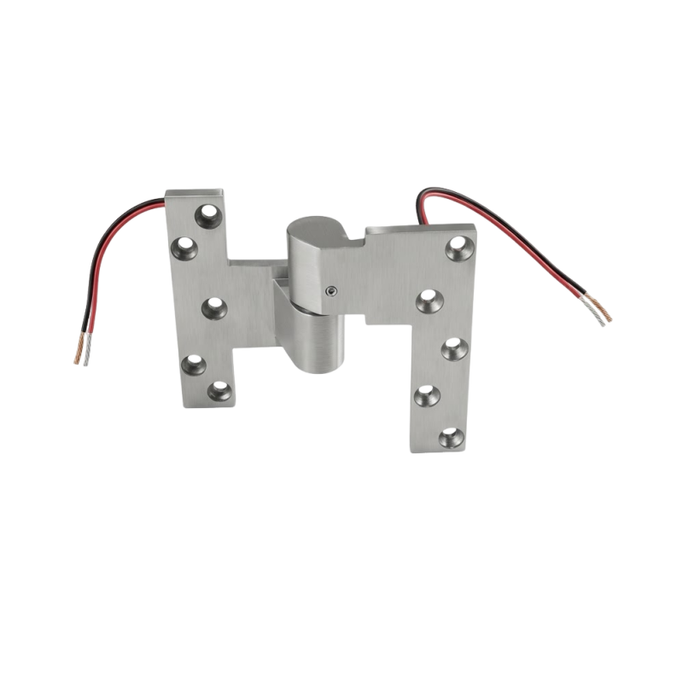

ABH E019-1.5 Electrified Intermediate Pivot with 1-1/2" Offset and 8-Wire Power Transfer

(No reviews yet) Write a Review

Model: E019-1.5-RH-US26
$1,039.00
$1,021.00
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,039.00
$1,021.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ABH Electrified Intermediate Pivot with 1-1/2" Offset and 8-Wire Power Transfer

Professional Electrified Pivot Solution for Fire-Rated Applications

The ABH Electrified Intermediate Pivot provides reliable electrical power transfer from frame to door with 1-1/2" offset configuration. Featuring (8) 30 AWG wires and heavy-duty stainless steel needle bearings, this UL Listed pivot is rated for 3-hour fire-rated doors. Constructed with stainless steel base material and weighing 3.25 lbs per unit, it mortises into side jamb and hinge edge for secure installation.

Professional Features & Benefits

  • Electrical Power Transfer: (8) 30 AWG wires provide reliable electrical connection from frame to door for electrified hardware applications.
  • 1-1/2" Offset Configuration: Designed for use with 1-1/2" offset pivot sets to accommodate specific door and frame requirements.
  • Heavy-Duty Construction: Stainless steel needle bearings and stainless steel base material ensure long-lasting durability in commercial applications.
  • Fire Rating Compliance: UL Listed for use on 3-hour fire-rated doors meeting critical safety requirements.
  • Professional Installation: Mortises into side jamb and hinge edge of door with handed specification (LH or RH) for proper alignment.
  • Door Alignment Support: Helps maintain proper door alignment throughout operation for consistent performance.
  • Commercial-Grade Specifications: Average weight of 3.25 lbs per unit indicates substantial construction for heavy-duty applications.

Technical Specifications

  • Application: Electrified, Fire-Rated
  • BAA Qualified: Yes
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Duty Level: Heavy Duty
  • Electronic: Yes
  • Fire Rated Time: 3 hours
  • Fire Rating: Yes
  • Hang Type: Offset Hung
  • Keyed: N/A
  • Keyed Function: N/A
  • Mounting Method: Offset
  • PDF: E019-1.5 - 1-1/2" Offset Electrified Intermediate Pivot (8) 28 Ga. Wires - Template: https://zensupply.com/content/pdf/abh/0000444_e019_15_07_102620.pdf
  • PDF: E019-1.5 Cut Sheet - Electrified 1-1/2" Offset Intermediate Pivot: https://zensupply.com/content/pdf/abh/0000027_e019_15_el019_cutsheet.pdf
  • PDF: EZ Connect Wire Color & Position Diagram Micro-Fit 3.0: https://zensupply.com/content/pdf/abh/0000157_ez_connect_wire_color_and_position_diagram_micro_fit_30.pdf
  • PDF: Pivot Set Configurations: https://zensupply.com/content/pdf/abh/0002621_pivot_set_configurations.pdf
  • PDF: Pivot Type 3/4" & 1-1/2" Offset: https://zensupply.com/content/pdf/abh/0000163_tm_pivot_type_offset.pdf
  • PDF: Pivot and Pivot Sets Special Layout Order Form - Must Download: https://zensupply.com/content/pdf/abh/0002519_pivot_and_pivot_sets_special_layout_form_1.pdf
  • PDF: Pivots Cross Reference Chart: https://zensupply.com/content/pdf/abh/0000411_cross_reference_chart.pdf
  • PDF: Substitution Request Pivots: https://zensupply.com/content/pdf/abh/0000116_substitution_request_form_compressed.pdf
  • Pivot Type: Intermediate
  • Product Attribute: Pivots
  • Product Category: Door Hinges and Pivots
  • Product Group: Door Hinges and Pivots
  • Product Model: EX0180
  • Product Subgroup: Pivots and Pivot Sets
  • Product Substrate: Stainless Steel
  • Product Type: Pivot Sets - Offset
  • Subcategory: Pivot Sets

Professional Applications

  • Commercial Office Buildings with Electrified Access Control
  • Educational Facilities Requiring Fire-Rated Door Systems
  • Healthcare Institutions with Electronic Security Integration
  • Government and Municipal Buildings
  • Industrial Facilities with Heavy-Duty Door Requirements
  • Multi-Tenant Properties with Centralized Access Systems
  • High-Security Applications Requiring UL Listed Components

Why Choose ABH Quality?

ABH electrified pivot products deliver professional-grade reliability with heavy-duty stainless steel needle bearings and stainless steel base construction. UL Listed for 3-hour fire-rated applications and BAA qualified for government projects, these pivots are engineered for demanding commercial applications where dependable electrical power transfer and fire safety compliance are essential.

Product Specs

Product Group:
Door Hinges and Pivots
Product Subgroup:
Pivots and Pivot Sets
Product Type:
Pivot Sets - Offset
Subcategory:
Pivot Sets
Commercial/Residential:
Commercial
Hang Type:
Offset Hung
Keyed:
N/A
Keyed Function:
N/A
BAA Qualified:
Yes
Duty Level:
Heavy Duty
Fire Rated Time:
3 hours
Electronic:
Yes
Pivot Type:
Intermediate
Mounting Method:
Offset
Application:
Electrified, Fire-Rated
Product Attribute:
Pivots
Product Model:
EX0180
Fire Rating:
Yes
Product Category:
Door Hinges and Pivots
Product Substrate:
Stainless Steel
Department:
Door Hardware
