ABH ABH E019 Intermediate Pivot (8) 28 Ga. Wires - Electrified - 3/4" Offset ABH-E019

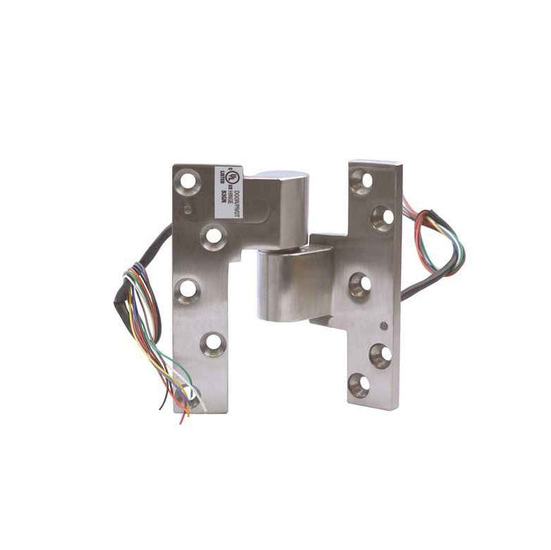

ABH E019 Electrified Intermediate Pivot with 3/4" Offset and 8-Wire Power Transfer

(No reviews yet) Write a Review

Model: E019-RH-US32D
$541.00
$321.24
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$541.00
$321.24
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ABH E019 Electrified Intermediate Pivot with 3/4" Offset and 8-Wire Power Transfer

Professional Electrified Pivot Solution for Fire-Rated Applications

The ABH E019 Electrified Intermediate Pivot provides reliable electrical power transfer from frame to door through 8 x 30 AWG wires with 3/4" offset configuration. This heavy-duty pivot features stainless steel construction with needle bearings and is UL Listed for 3-hour fire rated doors. The unit mortises into the side jamb and hinge edge of the door, maintaining proper door alignment while enabling electrical connectivity for access control systems.

Professional Features & Benefits

  • Electrical Power Transfer: 8 x 30 AWG wires provide reliable electrical connection from frame to door for access control and monitoring systems.
  • 3/4" Offset Configuration: Designed specifically for use with 3/4" offset pivot sets for proper door positioning and clearance.
  • Heavy-Duty Construction: Stainless steel base material with stainless steel needle bearings ensures long-term durability in commercial applications.
  • Fire Rating Compliance: UL Listed for use on 3-hour fire rated doors meeting critical safety requirements.
  • Professional Installation: Mortises into side jamb and hinge edge of door with handed configuration (specify LH or RH).
  • Door Alignment Support: Helps maintain proper door alignment throughout operation while providing electrical connectivity.
  • Commercial-Grade Durability: Heavy duty construction rated for demanding commercial applications with average weight of 3 lbs per unit.

Technical Specifications

  • Application: Electrified, Fire-Rated
  • BAA Qualified: Yes
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Duty Level: Heavy Duty
  • Electronic: Yes
  • Fire Rated Time: 3 hours
  • Fire Rating: Yes
  • Hang Type: Offset Hung
  • Keyed: N/A
  • Keyed Function: N/A
  • Mounting Method: Offset
  • Pivot Type: Intermediate
  • Product Attribute: Pivots
  • Product Category: Door Hinges and Pivots
  • Product Group: Door Hinges and Pivots
  • Product Model: EX0180
  • Product Subgroup: Pivots and Pivot Sets
  • Product Substrate: Stainless Steel
  • Product Type: Pivot Sets - Offset
  • Subcategory: Pivot Sets

Professional Applications

  • Commercial Office Buildings with Access Control
  • Healthcare Facilities with Security Systems
  • Educational Institutions with Monitoring Systems
  • Government Buildings with Electronic Access
  • Fire-Rated Door Applications
  • High-Security Commercial Facilities
  • Multi-Tenant Buildings with Electronic Entry

Why Choose ABH Quality?

ABH E019 Electrified Intermediate Pivots deliver professional-grade reliability with stainless steel construction and heavy-duty needle bearings designed for demanding commercial applications. UL Listed for 3-hour fire rated doors, this pivot provides both structural support and electrical connectivity essential for modern access control systems. Engineered for commercial environments where dependable performance and fire safety compliance are critical.

Product Specs

Product Group:
Door Hinges and Pivots
Product Subgroup:
Pivots and Pivot Sets
Product Type:
Pivot Sets - Offset
Subcategory:
Pivot Sets
Commercial/Residential:
Commercial
Hang Type:
Offset Hung
Keyed:
N/A
Keyed Function:
N/A
BAA Qualified:
Yes
Duty Level:
Heavy Duty
Fire Rated Time:
3 hours
Electronic:
Yes
Pivot Type:
Intermediate
Mounting Method:
Offset
Application:
Electrified, Fire-Rated
Product Attribute:
Pivots
Product Model:
EX0180
Fire Rating:
Yes
Product Category:
Door Hinges and Pivots
Product Substrate:
Stainless Steel
Department:
Door Hardware

ABH E019-RH-US32D – Frequently Asked Questions

1) What is an intermediate pivot hinge and where is it used?
An intermediate pivot hinge mounts between the top and bottom of a door frame, providing additional support for heavy or tall doors. This ABH E019 model handles doors that need extra stability beyond what top and bottom pivots alone can provide.
2) What does the 3/4 offset specification mean?
The 3/4 offset refers to the distance the door centerline sits from the frame centerline when closed. This offset allows proper door clearance and swing operation while maintaining structural integrity.
3) How do the 8-28 GA electrified wires work?
The hinge contains 8 wires rated at 28 gauge that transfer power through the hinge knuckle. This allows electrical connection between the door and frame for access control, electric strikes, or monitoring systems without external wiring.
4) What door weights and sizes does this intermediate pivot support?
Verify exact weight capacity with manufacturer specifications for your door dimensions. Intermediate pivots typically support doors over 7 feet tall or exceeding standard weight limits for two-pivot systems.
5) Can this hinge work with different door materials?
The ABH E019 works with wood, metal, and composite doors when properly installed. Door preparation must match hinge specifications. Heavy glass doors may require specialized mounting considerations.
6) What electrical ratings should I know for the wired connection?
The 28 GA wires handle low-voltage applications typical in access control systems. Check manufacturer specifications for exact voltage and amperage limits. Do not exceed rated electrical capacity.
7) How do I determine proper placement of an intermediate pivot?
Position the intermediate pivot typically at the door's geometric center or following manufacturer template. Exact placement depends on door height, weight distribution, and frame construction. Use manufacturer installation guides.
8) What tools are needed for installation?
Installation requires precise drilling equipment, templates, and electrical connection tools. Frame and door must be accurately mortised. Consider professional installation for electrified pivot systems to ensure proper alignment and electrical safety.
9) Does this pivot require specific frame preparation?
Yes, frames need precise mortising for pivot body and electrical wire routing. Frame must be plumb and square. Steel frames may require welding preparation points. Follow ABH installation templates exactly.
10) How do I maintain electrified pivot hinges?
Keep pivot points lubricated with appropriate bearing grease. Check electrical connections periodically for corrosion or loosening. Test electrical continuity during routine maintenance. Avoid over-lubrication which can attract debris.
11) Can this intermediate pivot work with other ABH pivot models?
The E019 coordinates with other ABH electrified pivot hinges in the same series. Top and bottom pivots should match electrical specifications and offset dimensions. Check ABH products for compatible pivot sets.
12) What should I verify before ordering this specific model?
Confirm door dimensions, weight, electrical requirements, and frame type. Verify the 3/4 offset matches your installation needs. Check that 8-wire capacity meets your electrical system requirements. Review manufacturer specifications for your specific application.
