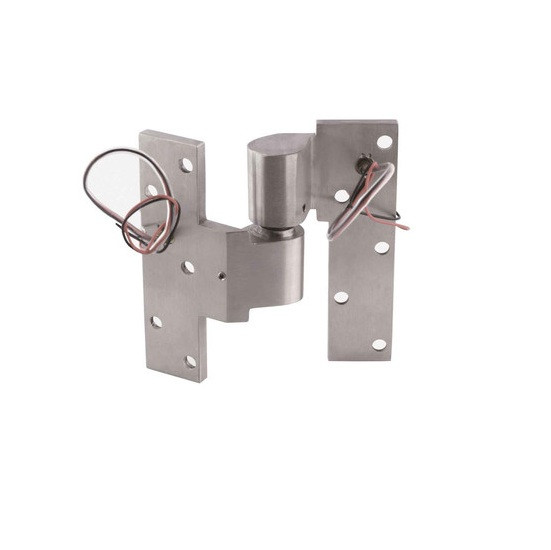

ABH E019U Intermediate Pivot (2) 18 Ga. Wires - Electrified - 3/4" Offset

ABH E019U Electrified Intermediate Pivot with 3/4" Offset and 18 AWG Wire Transfer

(No reviews yet) Write a Review

Model: E019U-RH-US26
$1,127.00
$1,107.48
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,127.00
$1,107.48
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ABH Electrified Intermediate Pivot with 3/4" Offset and 18 AWG Wire Transfer

Professional Electrified Pivot Solution for Fire-Rated Applications

The ABH Electrified Intermediate Pivot provides reliable electrical power transfer from frame to door while maintaining proper door alignment in commercial applications. This heavy-duty pivot features (2) 18 AWG wires rated at 2 amps continuously each, designed for 3/4" offset pivot sets. UL Listed for 3-hour fire rated doors with stainless steel construction and needle bearings for long-term durability.

Professional Features & Benefits

  • Electrical Power Transfer: (2) 18 AWG wires rated at 2 amps continuously each provide reliable power transfer from frame to door for electrified hardware.
  • Large Inrush Current Capacity: Designed to handle large inrush current requirements for demanding electrical applications.
  • Heavy-Duty Construction: Stainless steel base material with stainless steel needle bearings for exceptional durability in commercial applications.
  • Fire Rating Compliance: UL Listed for use on 3-hour fire rated doors ensuring code compliance for critical applications.
  • Precision Offset Design: 3/4" offset configuration for use with compatible offset pivot sets maintaining proper door alignment.
  • Professional Installation: Mortises into side jamb and hinge edge of door with handed specification (LH or RH) for precise fit.
  • Commercial-Grade Durability: Heavy duty construction with average weight of 3 lbs per unit for reliable long-term performance.

Technical Specifications

  • Application: Electrified, Fire-Rated
  • BAA Qualified: Yes
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Duty Level: Heavy Duty
  • Electronic: Yes
  • Fire Rated Time: 3 hours
  • Fire Rating: Yes
  • Hang Type: Offset Hung
  • Keyed: N/A
  • Keyed Function: N/A
  • Mounting Method: Offset
  • Pivot Type: Intermediate
  • Product Attribute: Pivots
  • Product Category: Door Hinges and Pivots
  • Product Group: Door Hinges and Pivots
  • Product Model: EX0180
  • Product Subgroup: Pivots and Pivot Sets
  • Product Substrate: Stainless Steel
  • Product Type: Pivot Sets - Offset
  • Subcategory: Pivot Sets

Professional Applications

  • Commercial Office Buildings with Electrified Hardware
  • Educational Facilities Requiring Fire-Rated Doors
  • Healthcare Institutions with Access Control Systems
  • Government and Municipal Buildings
  • Industrial Facilities with Heavy-Duty Requirements
  • Multi-Tenant Properties with Electrified Door Systems
  • Fire-Rated Door Applications Requiring Electrical Transfer

Why Choose ABH Quality?

ABH Electrified Intermediate Pivots deliver professional-grade reliability with stainless steel construction and heavy-duty needle bearings designed for demanding commercial applications. UL Listed for 3-hour fire rated doors with 2 amp continuous rating per wire for dependable electrical power transfer. Engineered for commercial environments where fire safety compliance and reliable electrified hardware operation are essential.

Product Specs

Product Group:
Door Hinges and Pivots
Product Subgroup:
Pivots and Pivot Sets
Product Type:
Pivot Sets - Offset
Subcategory:
Pivot Sets
Commercial/Residential:
Commercial
Hang Type:
Offset Hung
Keyed:
N/A
Keyed Function:
N/A
BAA Qualified:
Yes
Duty Level:
Heavy Duty
Fire Rated Time:
3 hours
Electronic:
Yes
Pivot Type:
Intermediate
Mounting Method:
Offset
Application:
Electrified, Fire-Rated
Product Attribute:
Pivots
Product Model:
EX0180
Fire Rating:
Yes
Product Category:
Door Hinges and Pivots
Product Substrate:
Stainless Steel
Department:
Door Hardware

ABH E019U-RH-US26 – Frequently Asked Questions

1) Can I use an electrified intermediate pivot on a 3-hour fire rated door?
Yes. The ABH E019U electrified intermediate pivot is UL Listed for use on 3-hour fire rated doors, so it can carry power to electrified hardware on a labeled opening without breaking the rating. That is the whole reason to use a pivot like this instead of running wire through a non-rated transfer point.
2) How much power can the ABH E019U pivot carry to the door?
Two 18 AWG wires, each rated 2 amps continuous, run through the pivot from frame to door. It is also built to handle large inrush current, so it suits electric strikes, electrified locks, and mag-type hardware that spike on energizing. Size your load against 2 amps per conductor, not the pair combined.
3) Do I have to specify left hand or right hand when ordering this ABH pivot?
Handing matters here. The E019U is a handed pivot, offered left hand and right hand, and it mortises into the side jamb and the hinge edge of the door, so a wrong-hand unit will not mount. Determine the hand of the opening before you order.
4) If the opening does not need power transfer, what 3/4 inch offset pivot can be used instead of the ABH E019U?
The Calibre Door Closers PV1000 is a 3/4 inch offset flush pivot set, so it matches the same 3/4 inch offset hung geometry without any wire transfer. The ABH E019U is the electrified intermediate pivot, carrying (2) 18 AWG wires rated 2 amps continuously each from frame to door. Use the E019U only where electrified hardware in the door actually needs power; for a mechanical opening on the same 3/4 inch offset layout, the PV1000 covers the hanging duty alone.
5) Is the Calibre PV1000 a direct replacement for the ABH E019U on a fire rated door with a card reader?
No. The PV1000 is a flush pivot set on a 3/4 inch offset and carries no conductors, so it cannot feed a reader, electric strike, or electrified lock in the door leaf. The ABH E019U is the part that does that job, with (2) 18 AWG wires rated 2 amps continuously each and UL listing for 3 hour fire rated doors. On an access controlled opening the PV1000 would leave you needing a separate transfer device.
6) What is this pivot made of and will it hold up on a high traffic door?
Stainless steel base material with stainless steel needle bearings, rated heavy duty for commercial use. The needle bearings are what let it take continuous cycling on an entrance or a healthcare corridor door rather than wearing loose the way a plain bushing would.
7) Can I use the ABH E019U pivot on a federally funded job with domestic sourcing requirements?
It is BAA qualified, which is what a government or municipal specifier is checking for on a Buy American Act project. Combined with the UL Listing for 3-hour fire rated doors, it covers the two boxes most institutional submittals ask about on an electrified opening.
8) What other 3/4 inch offset pivot sets are available if I do not need electrical transfer?
If the opening has no electrified hardware, a plain offset set is the simpler buy. ZenSupply carries the Calibre Door Closers PV1000 3/4 inch offset flush pivot set, which matches this unit's 3/4 inch offset geometry, and the BEST A3 System offset hung pivot set, which we hold a fire rating on. Neither is a substitute where you need power transferred to the door leaf; only the E019U carries the wiring.
9) We are standardizing a building on BEST A3 pivot sets - can the ABH E019U be used with them?
The BEST A3 is an offset hung pivot set and the ABH E019U is an offset hung, offset mounted intermediate pivot, so the hanging method is common to both. What decides compatibility is the offset dimension: the E019U is built for 3/4 inch offset sets and is handed left or right, mortised into the side jamb and the hinge edge of the door. Confirm the offset on the A3 set in the building matches 3/4 inch before mixing the E019U into that layout.
10) What finishes does the ABH E019U electrified pivot come in, and do they match across the opening?
Fourteen finishes, in both hands: painted aluminum, brass, bronze, black, dark bronze and white, plus satin bronze, oil rubbed bronze, bright chrome, bright brass, bright stainless, satin stainless, satin brass and bright bronze. Property managers standardizing a building can hold one finish across every electrified opening, since the same list is available left hand and right hand.
11) How are the wires on this ABH electrified pivot connected to the rest of the system?
The two 18 AWG leads land on ABH's EZ Connect Micro-Fit 3.0 arrangement, and ABH publishes a wire color and position diagram for it so the installer knows which conductor is which at the connector. Worth pulling that diagram before the electrician terminates in the frame.
12) My opening needs a non-standard pivot layout. Can ABH handle that?
Yes. ABH provides a pivot and pivot sets special layout order form for openings that do not fall on a standard configuration, plus a pivot set configurations sheet showing how top, intermediate and bottom pivots combine on offset hung doors. Tall doors often need more than one intermediate pivot, and that is where the configuration sheet decides your count.
