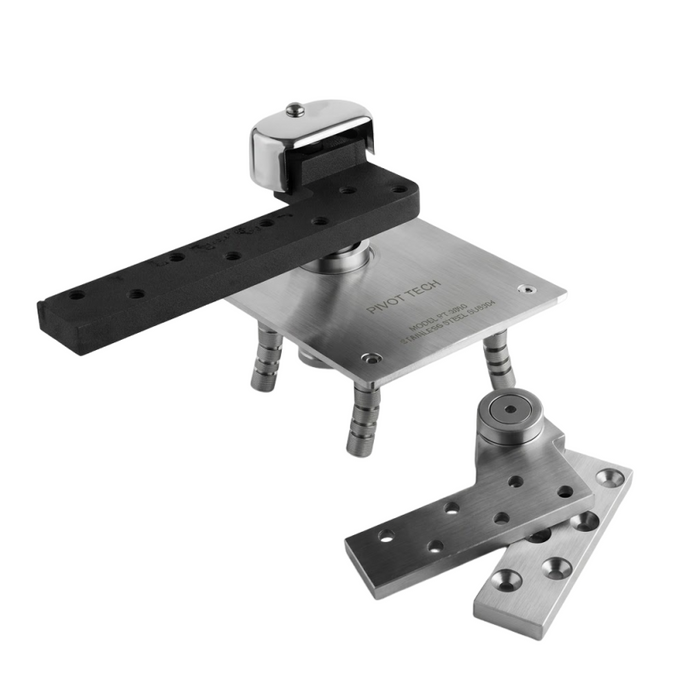

ABH ABH L0117 Pivot Set - 3/4" Offset - For Use on Lead-Lined Doors, Up to 1750 lbs ABH-L0117

ABH L0117 Extra Heavy Duty Pivot Set - 3/4" Offset for Lead-Lined Doors Up to 1750 lbs

(No reviews yet) Write a Review

Model: L0117-RH-US26
$1,314.00
$1,291.25
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,314.00
$1,291.25
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ABH L0117 Extra Heavy Duty Pivot Set - 3/4" Offset for Lead-Lined Doors Up to 1750 lbs

Professional Pivot Solution for Lead-Lined Door Applications

The ABH L0117 Extra Heavy Duty Pivot Set delivers exceptional performance for lead-lined doors with 3/4" offset mounting and maximum door load capacity of 1,750 pounds. Engineered with stainless steel base material and heavy duty bearings, this pivot set accommodates doors up to 48" wide and is UL listed for use on 3-hour fire rated doors. The complete set includes L0180 top pivot and L0117B bottom pivot components for comprehensive door support.

Professional Features & Benefits

  • Extra Heavy Duty Load Capacity: Supports doors up to 1,750 pounds for demanding lead-lined door applications requiring maximum structural support.
  • 3/4" Offset Design: Precision offset mounting accommodates lead-lined door construction while maintaining proper door operation and clearance.
  • Maximum Door Width Compatibility: Designed for doors up to 48" wide with specific height recommendations for optimal performance.
  • Stainless Steel Construction: Heavy duty bearings and stainless steel base material provide exceptional durability and corrosion resistance for long-term reliability.
  • Fire Rating Compliance: UL listed for use on 3-hour fire rated doors ensuring code compliance for critical applications.
  • Complete Pivot Set: Includes L0180 top pivot and L0117B bottom pivot with frame and door leaf components for complete installation.
  • Intermediate Pivot Guidelines: Doors ranging from 60" to 90" tall should use one intermediate pivot with additional intermediate pivots for each additional 30" in door height.
  • BAA Qualified: Meets Buy American Act requirements for government and institutional projects requiring domestic sourcing compliance.

Technical Specifications

  • Application: Lead-Lined
  • BAA Qualified: Yes
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Door Weight: Up to 1,750 lbs
  • Duty Level: Extra Heavy Duty
  • Electronic: No
  • Fire Rated Time: 3 hours
  • Fire Rating: Yes
  • Hang Type: Offset Hung
  • Mounting Method: Offset
  • Pivot Type: Top & Bottom
  • Product Category: Door Hinges and Pivots
  • Product Group: Door Hinges and Pivots
  • Product Subgroup: Pivots and Pivot Sets
  • Product Substrate: Stainless Steel
  • Product Type: Pivots - Offset
  • Series: L0117 Series
  • Subcategory: Door Pivots

Professional Applications

  • Healthcare Facilities with Lead-Lined Radiation Protection
  • Medical Imaging Centers and X-Ray Rooms
  • Hospital Radiology Departments
  • Dental Offices with Imaging Equipment
  • Veterinary Clinics with Diagnostic Equipment
  • Research Facilities with Radiation Sources
  • Industrial Applications Requiring Lead Shielding

Why Choose ABH Quality?

ABH L0117 pivot sets deliver professional-grade reliability with stainless steel construction and heavy duty bearings rated for up to 1,750 pounds load capacity. UL listed for 3-hour fire rated applications and BAA qualified for government projects, these pivot sets are engineered for demanding commercial applications where dependable performance and regulatory compliance are essential.
