ABUS Steel 6-Lock Lockout/Tagout Hasp with Pry-Resistant Interlocking Tabs
Model: ABU-STO80X
ABUS 72/30 Safety Lock
With the 72/30 padlock for industry and trade, you create more security in the workplace.
The 72/30 padlock is an extremely heat resistant padlock available in a variety of...
ABUS
Starting at
$9.68
ABUS 72/30 Safety Lock
With the 72/30 padlock for industry and trade, you create more security in the workplace.
The 72/30 padlock is an extremely heat resistant padlock available in a variety of colors and is a great complement to the 74 safety locks. The 72/30 serves as an excellent complement to the 74 safety locks. Whether aluminum, stainless steel, or high-quality steel, the right choice of shackle is available for every need. It can also be combined with the 74 in a locking system. The 72/30 significantly helps to protect your employees. Firstly, with the key-retaining feature: The key can only be pulled out when the padlock is actually locked. This protects against unauthorized access. Secondly, with the ability to designate keys, because eight different colors provide clear organization and prevent confusion. In addition to the different colors, our high-quality and clearly legible laser engravings can make it clear which person or purpose is assigned to the individual padlock.
Technology:
- Solid, anodized aluminum body
- Shackle made of steel with NANO PROTECT™ plating, also available in stainless steel or aluminum or with flexible steel cable
- 5-pin precision cylinder
- Cylinder can be rekeyed to match an existing key
- Available keyed alike, master keyed and grand master keyed
- Key-retaining (Lock retains key until locked)
- Product is ULE-validated
Variants:
- Colors: red, blue, green, yellow, brown, violet, silver, black, orange
Downloads:
Manufacturer Resources
Product Specs
- Subcategory:
- Hasps
- Product Group:
- Other / Miscellaneous Hardware
- Series:
- Lockout/Tagout Hasps
- Shackle Diameter:
- 3/8"
- Product Subgroup:
- Hasps
- Product Type:
- Hasps
- Commercial/Residential:
- Commercial
- Product Model:
- ALO70X
- Product Category:
- Other / Miscellaneous Hardware
- Product Width:
- 4-1/2"
- Department:
- Door Hardware
ABUS 18025 – Frequently Asked Questions
1) How many padlocks can the ABUS butterfly lockout hasp hold?

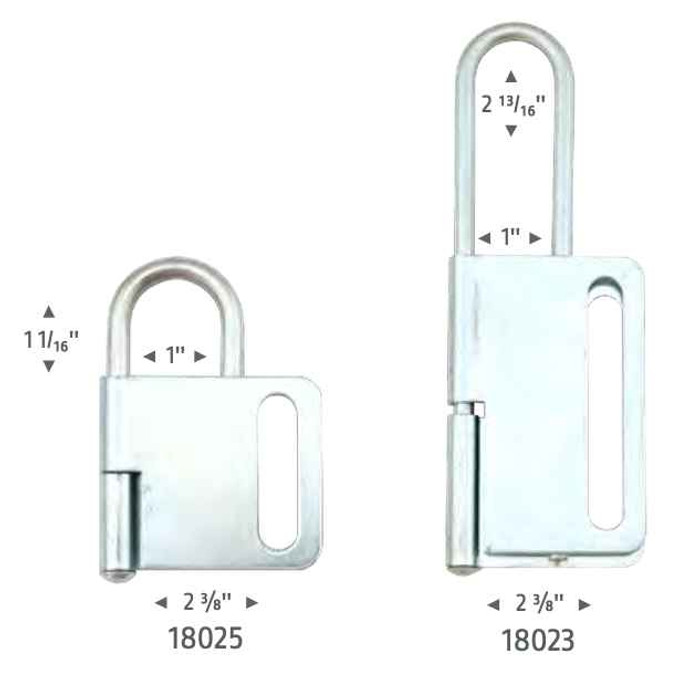

Two capacities are made: a 6-lock hasp (18025) and a 10-lock hasp (18023). Pick the capacity by how many people have to sign onto the energy isolation point, since every authorized worker puts their own padlock through the hasp and the machine cannot be re-energized until the last one comes off. If a crew of eight touches the same disconnect, the 6-lock version leaves two people without a hole.
2) What size padlock shackle fits the ABUS butterfly lockout hasp?
The hasp is drilled for shackles up to 3/8 inch diameter, which covers the common safety padlock shackle sizes used for lockout/tagout. A padlock with a heavier shackle than 3/8 inch will not pass through the holes, so check the shackle diameter on the locks your crew already carries before standardizing on this hasp.
3) Do I need to buy padlocks separately for a group lockout hasp?
Yes. A butterfly lockout hasp is the multiplier only, it holds the individual padlocks, it does not include any. Order one safety padlock per authorized worker, with a shackle of 3/8 inch or less so it passes through the hasp, and keyed differently so each person controls their own lock. Most facilities also assign padlock colors or engraving by person or trade to keep them straight on the job.
4) Will the ABUS butterfly lockout hasp fit through a small breaker or valve lockout device?
The hasp measures 4-1/2 inches wide when closed around the jaws, so it needs an opening that will accept its own shackle-style jaw and enough clearance around the isolation point for a 4-1/2 inch body to hang. On a crowded breaker panel or a valve with tight surrounding pipe, measure the free space first. Where clearance is the problem, a cable-style lockout run to a hasp mounted off to the side is the usual answer.
5) Should I standardize on the 6-lock or 10-lock ABUS lockout hasp across a facility?
Buy for the largest crew that will ever work a single isolation point, not the average one. The 10-lock hasp (18023) covers bigger group lockouts and still works fine with two locks on it. The 6-lock (18025) is the leaner choice for panels and valves where only a couple of trades are ever involved and space around the device is tight. Many facilities stock both and put the larger one at main disconnects.
6) Is the ABUS butterfly lockout hasp rated for industrial and commercial use rather than home use?
It is a commercial-duty item, model ALO70X, built for lockout/tagout on industrial and facility equipment. That is the context it belongs in: group lockout at a disconnect, valve, or machine control during maintenance, not securing a shed or a gate. A hasp used for general security is a different part with a different mounting.
