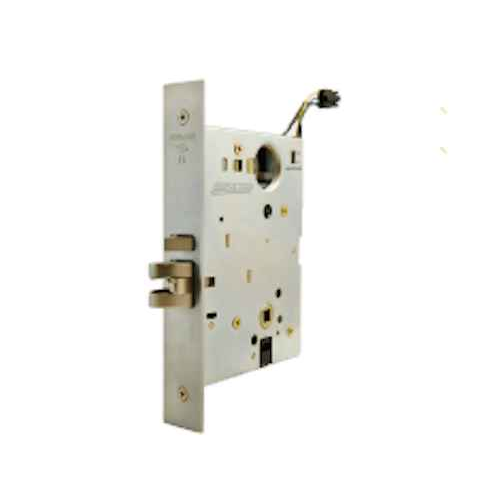

ACSI ACL9080EU/EL-RX Electric Lock Body 12/24VAC/DC Fail Safe/Fail Secure Field Selectable, with Connector and Request to Exit Switch

ACSI ACL9080EU/EL-RX Electric Lock Body 12/24VAC/DC Fail Safe/Fail Secure Field Selectable, with Connector and Request to Exit Switch

(No reviews yet) Write a Review

Model: ACL9080EU/EL-RX
From the 1500 Series Collection

In Stock (leaves warehouse same day if ordered before 3pm ET)

$655.10
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ACSI ACL9080EU/EL-RX ELECTRIC LOCK BODY 12/24VAC/DC FAIL SAFE/FAIL SECURE FIELD SELECTABLE, WITH CONNECTOR AND REQUEST TO EXIT SWITCH OVERVIEW

ACL9080EU/EL-RX Electric Lock Body 12/24VAC/DC Fail Safe/Fail Secure Field Selectable, with Connector and Request to Exit Switch.

ACSI supplies high quality UL Listed modifications to a wide range of manufacturers’ locksets. Series 1500 electric locks provide safety and security for stairtower doors or controlled areas where both locking and latching are required. The Series 1500 locks allow remote electric locking or unlocking while conforming to life-safety codes. Series 1500 locks are available in motor-controlled or solenoid-controlled in both mortise and cylindrical locks.

ACSI Stocks Electric Mortise Lock Bodies available in Schlage, Corbin Russwin, Sargent, Yale, Best and Falcon. The locks are available as motor-controlled or solenoid-controlled. Motor-controlled locks are field selectable for fail safe or fail secure and have automatic 12V or 24V, AC or DC operation. Solenoid-controlled locks must be specified as fail safe or fail secure and 12VAC/DC or 24VAC/DC. A variety of monitoring options are available.

Buy the ACSI ACL9080EU/EL-RX Electric Lock Body 12/24VAC/DC Fail Safe/Fail Secure Field Selectable, with Connector and Request to Exit Switch for easy installation and dependable door hardware solution.

ACSI ACL9080EU/EL-RX ELECTRIC LOCK BODY 12/24VAC/DC FAIL SAFE/FAIL SECURE FIELD SELECTABLE, WITH CONNECTOR AND REQUEST TO EXIT SWITCH PRODUCT FEATURES

  • UL Listed
  • Fail Safe (Power Lock) - Outside trim is locked when power is applied and unlocked when power is removed (storeroom function when energized). Lockset will unlock in event of power failure (passage function).
  • Fail Secure (Power Unlock) - Outside trim is unlocked when power is applied and locked when
  • Power is removed. Lockset will lock in event of power failure.
    Continuous duty solenoids
  • 24VDC, 24VAC, 12VDC, 12VAC, or pneumatic operation
  • When key cylinders are provided in the locks, the latchbolt may be momentarily retracted with key even though electrically locked. NOTE: Locks that are electrically unlocked may not be locked via the key cylinder.
  • Security Monitoring available
  • Authorized Egress (Request to Exit) available
  • Interface with Life-Safety Systems

ACSI ELECTRIC CYLINDRICAL LOCKS COLLECTION

ACSI ACL9080EU/EL Electric Lock Body 12/24VAC/DC Fail Safe/Fail Secure Field Selectable, with Connector
ACSI ACL9080EU/EL-RX Electric Lock Body 12/24VAC/DC Fail Safe/Fail Secure Field Selectable, with Connector and Request to Exit Switch
ACSI ACND12DEL Grade 1 Electric Cylindrical Lock Reversible Lever Exit Only Fail Safe 12VAC/DC
ACSI ACND12DEU Grade 1 Electric Cylindrical Lock Reversible Lever Exit Only Fail Secure 12VAC/DC
ACSI ACND80BDEL Grade 1 Storeroom Electric Cylindrical Lock Fail Safe Request to Exit Switch 24VAC/DC 7-Pin SFIC Prep
ACSI ACND80BDEU Grade 1 Storeroom Electric Cylindrical Lock Reversible Lever Fail Secure 12VAC/DC 7-Pin SFIC Prep
ACSI ACND80JDEL Grade 1 Storeroom Electric Cylindrical Lock Reversible Lever Fail Safe Request to Exit Switch 24VAC/DC Schlage FSIC Prep
ACSI ACND80JDEU Grade 1 Storeroom Electric Cylindrical Lock Reversible Lever Fail Secure 12VAC/DC Schlage FSIC Prep
ACSI ACND80LDEL Grade 1 Storeroom Electric Cylindrical Lock Reversible Lever Fail Safe Request to Exit Switch 24VAC/DC
ACSI ACND80LDEU Grade 1 Storeroom Electric Cylindrical Lock Reversible Lever Fail Secure 12VAC/DC
ACSI ACND80PDEL Grade 1 Storeroom Electric Cylindrical Lock Fail Safe Request to Exit Switch 24VAC/DC
ACSI ACND80PDEU Grade 1 Storeroom Electric Cylindrical Lock Fail Secure 12VAC/DC
ACSI ACND96BDEL Grade 1 Vandlgard Storeroom Electric Cylindrical Lock Fail Safe Request to Exit Switch 24VAC/DC 7-Pin SFIC Prep
ACSI ACND96BDEU Grade 1 Vandlgard Storeroom Electric Cylindrical Lock Fail Secure 12VAC/DC 7-Pin SFIC Prep
ACSI ACND96JDEL Grade 1 Vandlgard Storeroom Electric Cylindrical Lock Reversible Lever Fail Safe Request to Exit Switch 24VAC/DC Schlage FSIC Prep
ACSI ACND96JDEU Grade 1 Vandlgard Storeroom Electric Cylindrical Lock Reversible Lever Fail Secure 12VAC/DC Schlage FSIC Prep
ACSI ACND96LDEL Grade 1 Vandlgard Storeroom Electric Cylindrical Lock Reversible Lever Fail Safe Request to Exit Switch 24VAC/DC
ACSI ACND96LDEU Grade 1 Vandlgard Storeroom Electric Cylindrical Lock Reversible Lever Fail Secure 12VAC/DC
ACSI ACND96PDEL Grade 1 Vandlgard Storeroom Electric Cylindrical Lock Reversible Lever Fail Safe Request to Exit Switch 24VAC/DC
ACSI ACND96PDEU Grade 1 Vandlgard Storeroom Electric Cylindrical Lock Reversible Lever Fail Secure 12VAC/DC

Product Specs

Subcategory:
Electric Cylindrical Locks
Series:
1500 Series
Collection:
1500 Series
Product Type:
Electronic Mortise Locks
Commercial/Residential:
Commercial
Electronic:
Yes
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Voltage:
12/24VDC
Product Function:
Field Selectable (Safe/Secure)
Product Category:
Mechanical Locks
Department:
Door Hardware

ACSI ACL9080EU/EL-RX – Frequently Asked Questions

1) Can the ACSI ACL9080EU/EL-RX be set to fail safe or fail secure in the field, or do I have to order it one way?
Field selectable. The ACL9080EU/EL-RX lock body is set for either fail safe or fail secure at install, so you order one part number and decide on the door. Fail safe (power to lock) keeps the outside trim locked while energized and releases to passage when power drops. Fail secure (power to unlock) unlocks the outside trim while energized and stays locked on power loss. That's a real ordering advantage over ACSI's solenoid-controlled locks, which have to be specified as fail safe or fail secure when you buy them.
2) What voltage does the ACSI ACL9080EU/EL-RX electric lock body run on?
12 or 24 volts, AC or DC. The ACL9080EU/EL-RX takes 12VDC, 12VAC, 24VDC or 24VAC, so one lock body drops onto either a 12V or a 24V access control power supply without a separate part number or a voltage-specific order. Useful when you're adding openings to a building that already has a mix of panels.
3) What does the -RX suffix mean on the ACSI ACL9080EU/EL-RX, and do I need it?
RX is the request to exit switch, built into the lock body. It signals the access control panel that someone turned the inside lever and is leaving legitimately, so the panel shunts the door contact instead of throwing a forced-door alarm. Order the -RX version any time the opening is monitored or alarmed. If the door is only being remotely locked and unlocked with no monitoring, the plain ACSI ACL9080EU/EL is the same lock body with the connector but no RX switch.
4) Will this ACSI electric lock work on a stairwell door that has to stay code compliant?
Stair tower doors are exactly what the ACSI Series 1500 electric locks were built for. They lock and latch, allow remote electric locking or unlocking, and are made to conform to life-safety codes and interface with life-safety systems. Set fail safe on a stair door and the outside trim releases to passage the moment power drops or the fire alarm drops the circuit. The lock body is UL Listed.
5) Can someone still get in with a key if the ACSI ACL9080EU/EL-RX is electrically locked?
Yes, when a key cylinder is fitted in the lock, the latchbolt can be momentarily retracted with the key even while the lock is electrically locked. The reverse does not work: if the lock is electrically unlocked, you cannot lock it back down with the key cylinder. Plan your override procedure around that, because it catches people out on storeroom and stair openings.
6) Is this an ACSI-branded lock or a modification of a major manufacturer's lockset?
ACSI takes existing manufacturers' locksets and electrifies them under UL Listing. ACSI stocks electric mortise lock bodies for Schlage, Corbin Russwin, Sargent, Yale, Best and Falcon, so the electrified body matches the lock line already hanging on the rest of your doors. That matters for a property manager or facility standardizing trim, keyway and lock family across a building.
7) What's the difference between a motor-controlled and a solenoid-controlled ACSI electric lock?
Motor-controlled units, which is what the ACL9080EU/EL-RX is, are field selectable for fail safe or fail secure and run automatically on 12V or 24V, AC or DC. Solenoid-controlled units use continuous duty solenoids and have to be ordered as a specific function and a specific voltage, 12VAC/DC or 24VAC/DC. If you want one part number that covers multiple openings and power supplies, take the motor-controlled version; if the spec already names a fixed function and voltage, either will do.
8) Is the ACSI ACL9080EU/EL-RX a complete lockset or just the lock body?
It is the electric lock body with the wiring connector and the request to exit switch. Trim, lever or knob, and the key cylinder are separate, which is how ACSI's electrified conversions are sold so the body can match the host manufacturer's lock line. Budget for trim and a cylinder on the order if you are not reusing what is already on the door.
9) Can I get door position or lock status monitoring on this ACSI lock instead of just request to exit?
Security monitoring is offered across the ACSI Series 1500 line alongside authorized egress (request to exit), and a variety of monitoring options are available on the electric mortise lock bodies. The ACL9080EU/EL-RX itself carries the request to exit switch. If you need latch or status monitoring as well, that is a different option build in the same series.
10) Is the ACSI ACL9080EU/EL-RX suitable for commercial and institutional buildings?
It is a commercial-duty product, UL Listed, intended for controlled-access areas and stair towers where the opening has to both lock and latch. Schools, hospitals, government and multi-family common areas are the typical use, and the field-selectable function lets one stocked part cover both the fail safe stair doors and the fail secure storerooms in the same facility.
