Adams Rite MS1847 Series Ultra...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$77.00
$56.72

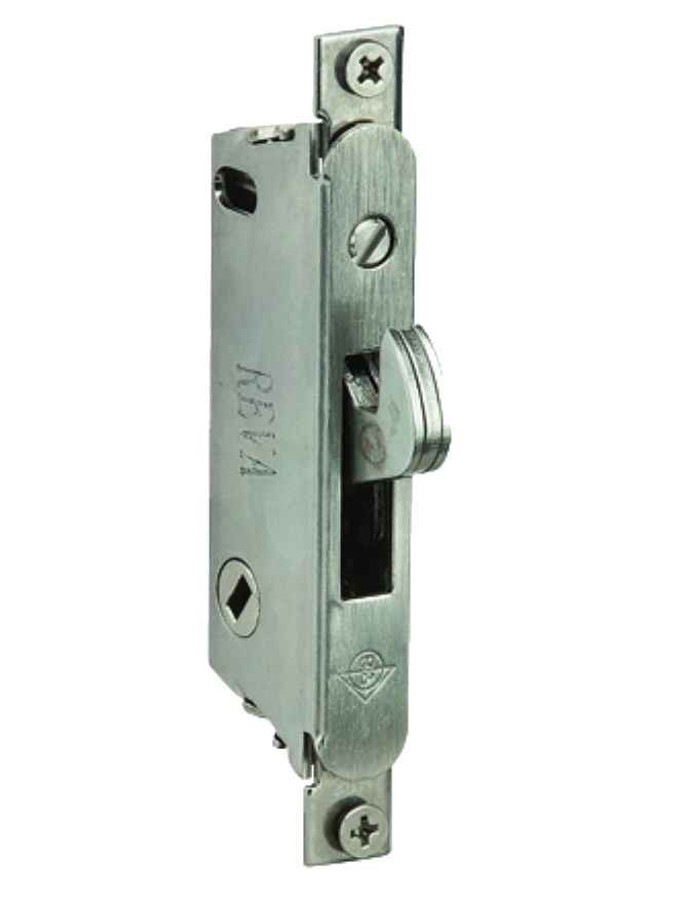

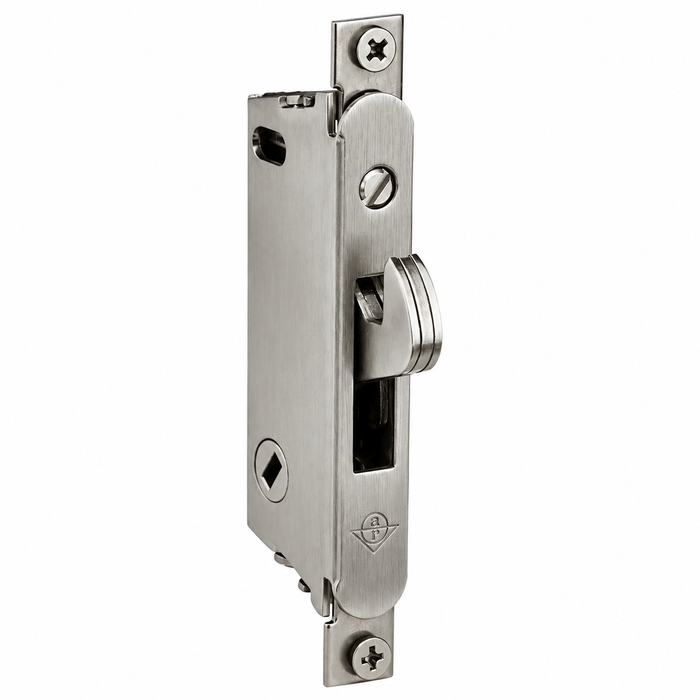

Adams Rite MS1847 Ultra-Narrow Stile Deadlock for Sliding Doors, 630 Satin Stainless finish, angled view showing hookbolt and thumb-turn

Adams Rite MS1847 Series Ultra-Narrow Stile Deadlock/Deadlatch with Self-Protecting Bolt for Sliding Doors

(No reviews yet) Write a Review

Model: MS1847-06-630
Selected Face Shape, Hub Angle, Lock or Latch is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$77.00
$56.72
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Adams Rite MS1847 Series Ultra-Narrow Stile Deadlock/Deadlatch with Self-Protecting Bolt for Sliding Doors

The Adams Rite MS1847 Series Two-Point Deadlock/Deadlatch is engineered specifically for ultra-narrow stile aluminum sliding doors where space is at a premium but security cannot be compromised. This compact lock features a case measuring just 1/2" x 3-3/16" x 1-1/8" and incorporates a three-ply laminated stainless steel bolt designed to withstand approximately one-half ton of either horizontal or vertical force. The self-protecting bolt offers adjustable projection up to 3/16", giving installers flexibility for alignment while preventing damage from accidental lockout situations.

Key Features

  • Compact Case Dimensions: Case measures 1/2" x 3-3/16" x 1-1/8", purpose-built for ultra-narrow stile applications where space is limited.
  • Heavy-Duty Bolt Construction: Three-ply laminated stainless steel bolt withstands approximately one-half ton of horizontal or vertical force for dependable two-point security.
  • Adjustable Bolt Projection: Self-protecting bolt design with projection adjustable up to 3/16" allows compensation for door and jamb misalignment while resisting damage from accidental lockout.
  • Versatile Door Compatibility: Engineered for narrow stile aluminum doors, with hollow metal and wood door options also available.
  • Cylinder Compatibility: Accepts standard Adams Rite MS® cam mortise cylinders for keyed operation (cylinder sold separately).
  • Multiple Finish Options: Available in US3, US4, US10B, US32, and US32D finishes to match a range of door hardware aesthetics.
  • Face Plate Options: Available with round corner and square corner face options for installation flexibility.
  • Access Control Ready: Compatible with Adams Rite electric strikes, supporting integration into access control systems.

Certifications & Compliance

  • UL Listed models available
  • 5 Year Warranty

Technical Specifications

  • Product Group: Sliding Door and Barn Door Hardware
  • Cylinder Included: No
  • Warranty: 5 Year
  • Product Dimension: Case: 1/2" x 3-3/16" x 1-1/8"
  • Face Plate: Round Corner and Square Corner Face Options
  • Product Category: Sliding Door and Barn Door Hardware
  • Department: Door Hardware

Typical Applications

  • Commercial Storefront Sliding Doors
  • Retail Security Applications
  • Office Building Interior Partitions
  • Healthcare Facility Sliding Doors
  • Educational Institution Security Systems
  • Multi-Tenant Residential Properties
  • Industrial Facility Access Control

Why Adams Rite MS1847?

Adams Rite MS1847 Series deadlocks deliver professional-grade security with three-ply laminated stainless steel construction rated to withstand approximately one-half ton of force in both horizontal and vertical applications. The self-protecting bolt design and adjustable projection feature reflect a focus on solving real-world installation challenges for ultra-narrow stile sliding doors. As an ASSA ABLOY Group brand, Adams Rite engineers this deadlock for demanding commercial sliding door applications where space constraints and security requirements must both be satisfied.

Product Specs

Product Group:
Sliding Door and Barn Door Hardware
Series:
MS1847 Series
Grade:
Grade 1
Cylinder Included:
No
Warranty:
5 Year
Subcategory:
Deadlocks
Product Subgroup:
Deadlocks
Commercial/Residential:
Commercial
Product Model:
1847
Product Dimension:
Case: 1/2" x 3-3/16" x 1-1/8"
Face Plate:
Round Corner and Square Corner Face Options
Product Category:
Sliding Door and Barn Door Hardware
Department:
Door Hardware
Product Type:
Deadlocks

Adams Rite MS1847-06-630 – Frequently Asked Questions

1) Will the Adams Rite MS1847 deadlock fit an ultra-narrow stile aluminum sliding door?
That is what the MS1847 is built for. The case measures 1/2 x 3-3/16 x 1-1/8 inches, small enough to go into the stile of an ultra-narrow stile aluminum slider where a conventional mortise deadlock has nowhere to sit. Check your stile pocket against all three case numbers before you cut anything, since the case has to clear inside the stile, not just behind the face. Beyond aluminum, hollow metal and wood door versions of the MS1847 are also offered.
2) What is the difference between the deadlock and the self-latching versions of the Adams Rite MS1847?
Two different behaviors on the same case. Five MS1847 configurations are deadlocks: 02, 06, 09, 10, and the Standard. Two are self-latching: 11 (round corner face, 45 degree hub) and 13 (square corner face, vertical hub). A deadlock bolt only moves when someone operates the cylinder or turn, so the door is never secured by simply sliding it shut. A self-latching bolt engages the keeper when the door closes, which is what you want on a retail or tenant slider that has to be secure every time it is pushed home rather than every time someone remembers to lock it.
3) Does the Adams Rite MS1847 come with a cylinder, and what cylinder does it take?
No cylinder ships with the MS1847. It accepts a standard Adams Rite MS cam mortise cylinder, ordered separately, so you can key it into whatever system the building already runs. Budget for the cylinder and the correct cylinder length for your stile when you price the opening, otherwise the lock arrives and the door still will not key.
4) My sliding door and jamb are slightly out of line. Can the bolt on the Adams Rite MS1847 be adjusted to still engage the keeper?
Projection on the MS1847 bolt is adjustable up to 3/16 inch, which is there precisely for doors and jambs that have settled or racked out of true. Set the projection so the bolt seats fully in the keeper without binding. The bolt is also self-protecting, so if someone throws it and then slams the door, the design resists the damage that normally wrecks a bolt in an accidental lockout.
5) Can the Adams Rite MS1847 be tied into a card reader or access control system?
It works with Adams Rite electric strikes, which is how these get onto access control. One thing to get right before you spec it: an electric strike releases a latch on demand, it does not retract a thrown deadbolt. So if the opening has to release electrically, order one of the self-latching configurations (11, round corner face with a 45 degree hub, or 13, square corner face with a vertical hub) rather than a deadlock version. The deadlock configurations still make sense on an opening that is locked down manually at close.
6) I am replacing the lock in an existing narrow stile sliding door. What do I need to record off the old one before ordering an MS1847?
Four things decide which MS1847 you order. Face shape, round corner or square corner, has to match the cutout already in the stile. Hub angle, 45 degrees, vertical, or 22.5 degrees, has to match where the cylinder or turn sits. Deadlock or self-latching depends on how the door is meant to secure. And the pocket has to take a case of 1/2 x 3-3/16 x 1-1/8 inches. Add the cylinder separately, since none is included. Part numbers read as series, configuration, finish, for example MS1847-02-630.
7) Which hub angle do I order on an Adams Rite MS1847, 45 degrees, vertical, or 22.5 degrees?
Match it to the prep in the stile. The hub is what the cylinder cam or turn drives, so its angle fixes where that cylinder or turn sits relative to the lock case, and a mismatch means the hole in the stile does not line up with the hardware. Across the MS1847 line: 45 degrees on configurations 02, 11, and the Standard; vertical on 06 and 13; 22.5 degrees on 09 and 10. On a new opening, pick the angle that puts the key or turn where the operator can reach it comfortably on a sliding leaf.
8) How much force will the Adams Rite MS1847 bolt take on a storefront slider that gets pried at?
The bolt is three-ply laminated stainless steel and holds against roughly one-half ton of force, horizontal or vertical, which is the load direction a pry bar puts on a sliding leaf. The MS1847 carries a Grade 1 rating and is a commercial lock, so it is the right class of hardware for retail frontage, healthcare corridors, and multi-tenant openings rather than a light residential slider.
9) Round corner or square corner faceplate on the Adams Rite MS1847, which one do I need?
Look at the cutout in the stile. A pocket cut with a router leaves radiused corners and takes the round corner face; a pocket that was milled or filed square takes the square corner face. On the MS1847, round corner is configurations 02, 06, 09, and 11; square corner is 10, 13, and the Standard. Ordering the wrong one is fixable with a file, but it costs time on the door and the faceplate never sits as clean.
10) What finishes does the Adams Rite MS1847 sliding door deadlock come in for matching the rest of the hardware in a building?
Five: US3, US4, US10B, US32, and US32D. In trade terms that is bright brass, satin brass, oil rubbed bronze, bright stainless, and satin stainless. Part numbers carry the BHMA equivalent, so the 02 configuration in satin stainless reads MS1847-02-630, 630 being the BHMA number for US32D. On aluminum storefront with brushed or clear anodized trim, US32D is normally the match; US10B is the one to pick against dark bronze framing.
11) Can the Adams Rite MS1847 be used on a hollow metal or wood sliding door, or is it aluminum only?
Aluminum narrow stile is the primary application, but hollow metal and wood door options are offered as well. The case is the same 1/2 x 3-3/16 x 1-1/8 inches whichever door material you are working in, so the pocket you have to prepare does not change. Specify the door material when you order rather than assuming the aluminum version drops into a wood or hollow metal leaf.
