Aiphone C-123L/A - ChimeCom Se...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$226.00
$171.44

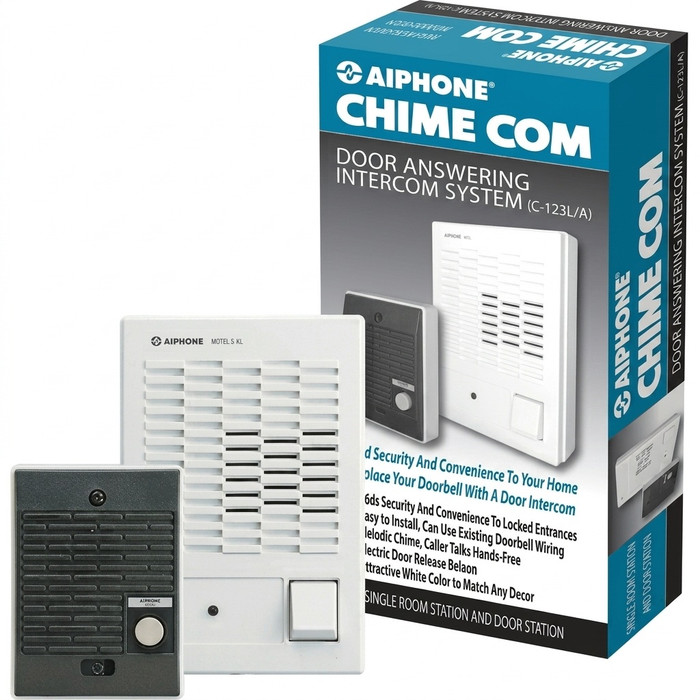

Aiphone Aiphone C-123L/A - ChimeCom Set, 1 Door, 1 Master C-123L/A

Aiphone C-123L/A - ChimeCom Set, 1 Door, 1 Master

(No reviews yet) Write a Review

Model: C-123L/A

In Stock (leaves warehouse same day if ordered before 3pm ET)

$226.00
$171.44
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

C-123L/A: Single master set includes a door station (C-D) and a master stations (C-ML/A). Additional masters may be added. Each master requires a separate power supply, either the SKK-620 or 4 "C" batteries. The door station calls the master(s) by pressing a call button that initiates a chime. Communication is Push to talk/release to listen at the master and hands free at the door station. Communication times out after being idle for twenty seconds.

FEATURES
  • Box set includes C-ML/A and C-D
  • Chime from door station, answered from inside station
  • Door release
SPECIFICATIONS
  • Power Consumption: 85mA (6V DC) max.
  • Output: 100mW
  • Type of communication: Push-to-talk (simplex)
  • Door Release Contact: N/O dry contact, 30V AC/DC 1A
  • Mounting: Wall mount
  • Wire Type: 2-cond., overall shield - use Aiphone #822202(22AWG) or #821802(18AWG)
  • Wire Distance: Door Station to farthest Master Station: 245'(22AWG), 590'(18AWG)

Product Specs

Product Type:
Audio Intercoms Box Sets
Series:
ChimeCom (C-123L) Series
Product Group:
Electronic Access Controls
Product Subgroup:
Parts and Accessories
Subcategory:
Audio Intercoms
Commercial/Residential:
Commercial
Electronic:
Yes
Product Category:
Electronic Access Controls
Department:
Door Hardware

Aiphone C-123L/A – Frequently Asked Questions

1) What comes in the Aiphone C-123L/A ChimeCom set?
The C-123L/A box set is a one-door, one-master audio intercom kit: it includes the C-D door station and the C-ML/A master station. The door station has a call button that chimes the master, and the master can trigger the door release. You still need a power source for the master, which is not part of the kit.
2) Does the Aiphone C-123L/A come with a power supply?
No. Each master station on the ChimeCom system needs its own power source, either an Aiphone SKK-620 power supply or 4 C batteries. Budget for that on every master you install, including the one in the box set.
3) How far can I run the wire between the door station and the master on an Aiphone ChimeCom system?
Distance from the door station to the farthest master station is 245 feet on 22AWG and 590 feet on 18AWG. Use 2-conductor overall-shielded cable, Aiphone #822202 for 22AWG or #821802 for 18AWG. If your run from the entry to the office or apartment exceeds 245 feet, pull the 18AWG.
4) Will the Aiphone ChimeCom release my electric door strike?
The C-123L/A master has a door release contact rated as a normally open dry contact, 30V AC/DC at 1A. That will switch a strike or maglock relay within those limits, but it is a dry contact only, so the strike needs its own power supply. Anything drawing more than 1A or running above 30V has to go through an interposing relay.
5) Is the Aiphone C-123L/A a video intercom or audio only?
Audio only. The ChimeCom C-123L/A is a chime-and-talk set: the door station button rings a chime at the master, someone answers by voice, and can release the door. If you need to see who is at the entry before releasing, this is the wrong type of system and you want a video door station kit instead.
6) Can I add more master stations to the Aiphone C-123L/A?
Yes, additional masters can be added to the ChimeCom set, and the door station calls all of them. Each added master needs its own power, an SKK-620 or 4 C batteries. The wire distance limit is measured to the farthest master, so plan the longest run against the 245 foot (22AWG) or 590 foot (18AWG) figure.
7) Is the Aiphone ChimeCom hands free, or do you have to hold a button to talk?
Communication is push-to-talk, release-to-listen (simplex) at the master station, and hands free at the door station. So the visitor outside just talks, and the person inside holds the button to speak. The call also times out after twenty seconds of idle, which keeps the channel from being left open.
8) How does the Aiphone ChimeCom master station mount, and how much power does it draw?
Both stations are wall mount. The master draws 85mA max at 6V DC with 100mW audio output, which is why 4 C batteries are a workable alternative to the SKK-620 supply. Low draw also means you are not running conduit for line voltage, just the shielded 2-conductor pair.
9) Is the Aiphone ChimeCom C-123L/A suitable for a commercial building or just a house?
It is classed as commercial door hardware, and the one-door, one-master layout suits a back entry, a small office front door, or a shop receiving door where one person answers. For buildings needing several entries or many answering points, the ChimeCom architecture only scales on the master side, since the set covers a single door station.
