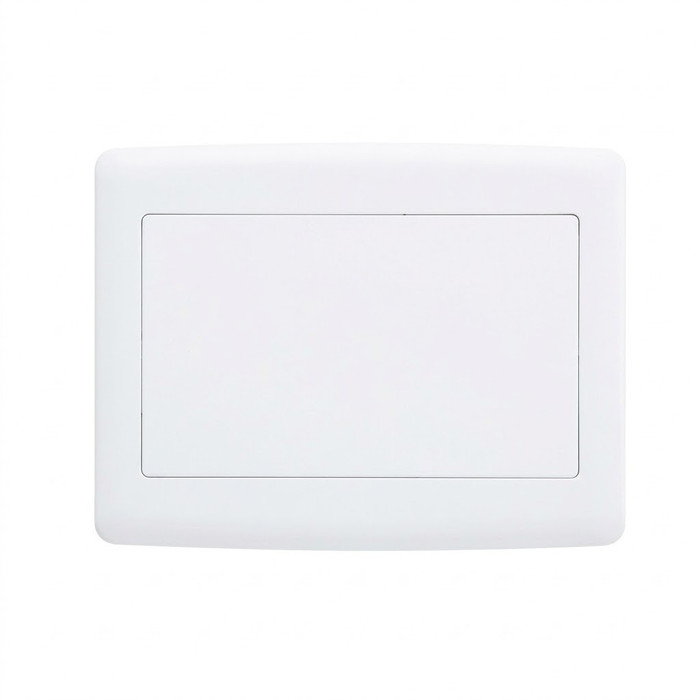

Aiphone Aiphone IXW-MA-SOFT - Multi-Purpose Adaptor with IX-SOFT License for the IX Series AIP-IXW-MA-SOFT

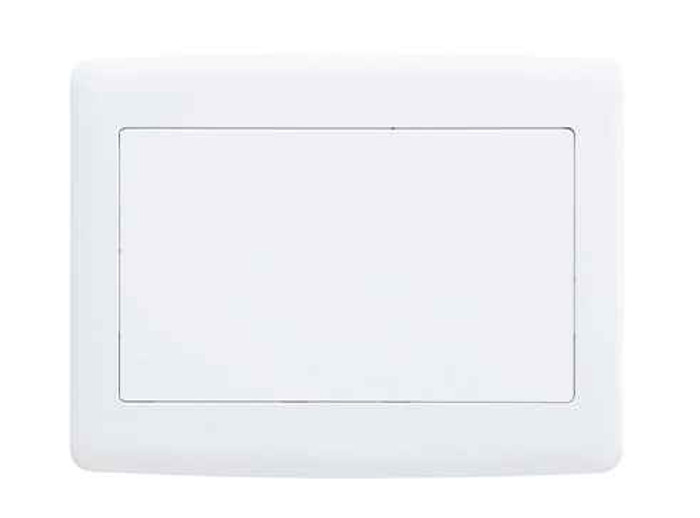

Aiphone IXW-MA-SOFT - Multi-Purpose Adaptor with IX-SOFT License for the IX Series

(No reviews yet) Write a Review

Model: IXW-MA-SOFT

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,680.78
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

The IXW-MA-SOFT is a multi-purpose adaptor with licenses for 1, 5, or 10 IX-SOFT installations.

The IXW-MA-SOFT comes with 4 contact inputs and 10 relay outputs. The inputs on the adaptor can be used to send a command to a specific station to perform a task. The relays on the adaptor can be associated to a specific station and programmed to change state when relay output 1 or 2 on the associated station changes state. This is beneficial when door release contacts need to be located inside the facility at a secure location, instead of at the door station.

The IXW-MA-SOFT is surface mounted to a 3 or 4-gang box or ring. Wire terminations are made via option connectors supplied with the unit. Each connecting wire will need to be secured with a wire nut or crimp connector.

The IXW-MA-SOFT is a PoE device, and can be programmed via IX Support Tool 5.0 or later.

IXW-MA-SOFT includes 1 IX-SOFT license.
IXW-MA-SOFT-5 includes 5 IX-SOFT licenses.
IXW-MA-SOFT-10 includes 10 IX-SOFT licenses.

FEATURES
  • Supports 1, 5 or 10 IX-SOFT licenses
  • PoE powered (802.3af)
  • 4 contact inputs
  • 10 relay outputs
    • Outputs 1-4 are Form C
    • Outputs 5-10 are Form A
  • 24V AC/DC 500mA relay contact rating
  • Programmed via IX Support Tool

SPECIFICATIONS
  • Power Source: PoE (IEEE 802.3af class 0)
  • Power Draw: 6.48 Watts (Max)
  • Relay Output
    • Relays 1-4: Form C 24V AC/DC 500mAR
    • Relays 5-10: Form A 24V AC/DC 500mA
  • LAN: Ethernet (10BASE-T, 100BASE-TX)
  • Protocols: IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, SFTP, DHCP, NTP, DNS
  • Encryption system: TLS1.2
  • Port Security: IEEE 802.1X
  • Operating Temp: 14° ~ 122°F (-10° ~ 50°C)
  • Dimensions: 7-½" H x 9-⅝" W x 13⁄16" D

Manufacturer Resources

IX SYSTEM Brochure

Product Specs

Product Type:
Software & Licenses
Series:
IX Series
Subcategory:
Accessories
Commercial/Residential:
Commercial
Product Group:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Aiphone IXW-MA-SOFT – Frequently Asked Questions

1) What does the Aiphone IXW-MA-SOFT actually do in an IX Series system?
The IXW-MA-SOFT is a multi-purpose adaptor for the Aiphone IX Series that adds 4 contact inputs and 10 relay outputs to the system, and it ships with IX-SOFT licensing. The inputs send a command to a specific station to perform a task. Each relay can be associated with a specific station and programmed to change state when relay output 1 or 2 on that station changes state. The practical use is moving door release contacts off the door station and into a secure spot inside the building.
2) What is the difference between the IXW-MA-SOFT, IXW-MA-SOFT-5 and IXW-MA-SOFT-10?
The hardware adaptor is the same in all three; the license count is what changes. IXW-MA-SOFT includes 1 IX-SOFT license, IXW-MA-SOFT-5 includes 5, and IXW-MA-SOFT-10 includes 10. Order by how many IX-SOFT softphone installations you need to run, not by how many doors or relays you have.
3) How is the Aiphone IXW-MA-SOFT powered, and do I need to run a separate power supply to it?
No separate supply. The IXW-MA-SOFT is a PoE device on IEEE 802.3af class 0, so a single Cat cable from a PoE switch or injector carries data and power. Budget 6.48 watts max per adaptor when sizing the switch.
4) Can the IXW-MA-SOFT relays switch a 24V electric strike or maglock directly?
Only within 24V AC/DC at 500mA. Relays 1-4 are Form C and relays 5-10 are Form A, all rated 24V AC/DC 500mA. Most electric strikes and every maglock pull more than that, so run the relay as a dry contact into the strike's own power supply or a relay module rather than putting the lock load on the adaptor.
5) I want the door release button inside the office instead of at the entry station. Does the Aiphone IXW-MA-SOFT do that?
That is the main reason it exists. Associate a relay on the adaptor with the door station, and the relay changes state when relay output 1 or 2 on that station changes state, so the actual release contact lives wherever you mount the adaptor. For a property manager or a school front office, that means the wiring to the lock terminates in a secure room instead of in the entry station out at the door.
6) What is the difference between the Form C and Form A outputs on the Aiphone multi-purpose adaptor?
Four of the ten outputs (1-4) are Form C, meaning they give you both a normally open and a normally closed contact off a common. Outputs 5-10 are Form A, normally open only. If you have a fail-safe device that needs to drop on activation, or you need a normally closed input to an access panel, use one of the four Form C relays and save the Form A relays for straight momentary release and signaling.
7) What software do I need to program the Aiphone IXW-MA-SOFT?
Programming is done with IX Support Tool, version 5.0 or later. The adaptor has no local interface, so the inputs, the station associations, and the relay behavior are all set from the Support Tool on a PC on the same network.
8) Will the Aiphone IXW-MA-SOFT work on a network that requires 802.1X and encrypted traffic?
Yes. The adaptor supports IEEE 802.1X port security and TLS 1.2 encryption, and it runs IPv4 and IPv6 over TCP and UDP with HTTP, HTTPS, SMTP, SFTP, DHCP, NTP and DNS. That is usually enough to get it approved on a hospital, campus, or municipal network where unauthenticated ports are not allowed. The LAN connection is 10BASE-T/100BASE-TX Ethernet.
9) Can the IXW-MA-SOFT be mounted in an unheated garage, parking structure, or outdoor equipment room?
Operating range is 14 to 122 degrees F (-10 to 50 degrees C), so an unconditioned garage or a covered parking structure is generally fine in most climates. It is a surface-mount indoor-style adaptor on a gang box, so it needs to be in an enclosure or protected location, not exposed to weather. In a hard freeze climate, keep it inside the heated envelope.
10) Is the Aiphone IXW-MA-SOFT rated for commercial installation?
It is a commercial-grade IX Series component, PoE powered and programmed through IX Support Tool. Typical placements are multi-tenant buildings, schools, healthcare and government facilities where the intercom system is IP based and the door control has to sit on the network.
