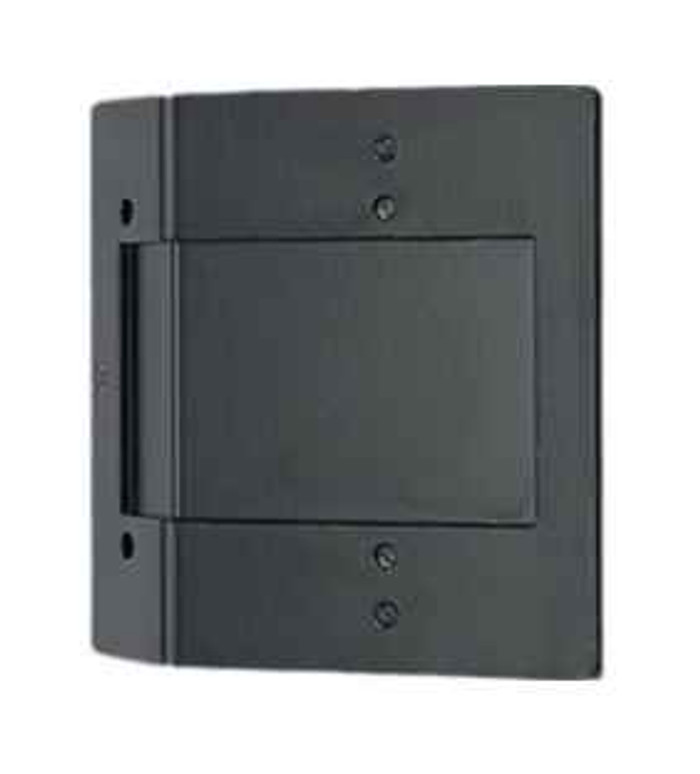

The KMB-45 is a 45° angle Mullion Mounting Bracket for installing Aiphone 1-gang audio and video door stations onto a mullion style door frame. The KMB-45 can be installed on either side of the door.
FEATURES
- Compatible with Aiphone 1-gang surface mount door stations
- Mounts door stations to mullion with a 45 degree angle
- Can mount to either right or left of door
- Provides a better viewing angle for the camera
GENERAL INFORMATION
- Name: Aiphone KMB-45 45-Degree Mullion Mounting Bracket for 1-Gang Surface Mount Door Stations, Aiphone Co., Ltd, Aiphone
- Category: Aiphone, Communications, Intercoms & Telephone Entry, Intercom Housings
- UPC Code: 788255117161
- Country of Origin: United States. Country of origin is subject to change.
Manufacturer Resources
General Line Catalog (Full Catalog)
Product Specs
- Product Type:
- Mounting Brackets
- Series:
- IX Series
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Parts and Accessories
- Subcategory:
- Accessories
- Commercial/Residential:
- Commercial
- Electronic:
- Yes
- Product Category:
- Electronic Access Controls
- Department:
- Door Hardware
Aiphone KMB-45-KM – Frequently Asked Questions
1) What is the Aiphone KMB-45 bracket used for?
The KMB-45 is a mounting bracket that holds an Aiphone 1-gang surface mount audio or video door station on a mullion style door frame, angling it 45 degrees toward the visitor. On a glass front or storefront entrance where the only mounting surface is the narrow mullion, a station mounted flat faces across the doorway rather than at the person standing in front of it. The 45 degree offset points the camera and speaker where the visitor actually stands.
2) Can the KMB-45 mullion bracket be mounted on either side of the door?
Yes, it works on the right or left of the opening. The bracket is not handed, so you order the same part whether the station goes on the strike side or the hinge side mullion. That matters when you are standardizing several entrances in a building and want one part number on the order.
3) Does the KMB-45 work with flush mount Aiphone door stations?
No. The KMB-45 is built for Aiphone 1-gang surface mount door stations only. Flush or back box mounted stations recess into the wall and have no surface housing for this bracket to carry, so a flush station needs its own back box and trim instead.
4) Will the KMB-45 improve the camera view on a video intercom mounted to a storefront mullion?
That is the reason it exists. Angling the video station 45 degrees off the mullion face points the lens toward the approach rather than straight across the door opening, so you get a better viewing angle on the caller instead of a sliver of their shoulder.
5) Do I get the door station with the KMB-45, or is the intercom ordered separately?
The KMB-45 is the bracket alone. The 1-gang surface mount audio or video door station is a separate order, and you will still need your own wiring and network drop to it. Confirm your station is a 1-gang surface housing before you pair the two.
6) Can I use the KMB-45 to mount an intercom to a flat wall next to the door?
It is not the right part for that. The KMB-45 is shaped to sit on a mullion style door frame and throw the station out at 45 degrees. On a flat wall beside the opening, a surface mount station mounts directly or on a standard surface back box with no angle bracket needed.
7) Is the KMB-45 suitable for a commercial building entrance?
Aiphone classes the KMB-45 as commercial hardware, and it belongs to the IX Series line of IP intercom equipment. It is the accessory a security integrator or glass front installer reaches for on office, multi-family, and institutional storefront entries where the door station has to live on the frame mullion.
