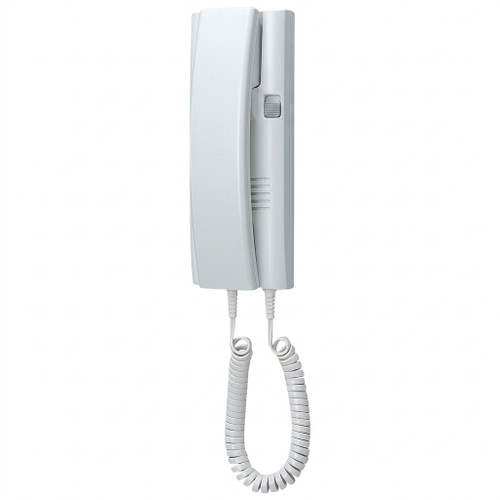

Aiphone TB-SE Handset Sub Station for TC-M Series Intercoms
Model: AIP-TB-SE
Aiphone TB-SE Handset Sub Station for TC-M Series IntercomsThe Aiphone TB-SE is a commercial-grade handset sub station engineered to work seamlessly with the TC-M Series master station. Designed for...
Aiphone
$152.00
$127.27
Aiphone AX-A/AN - Surface Mount Indoor Sub Station
Model: AIP-AX-A/AN
The AX-A are AX-AN are interior sub stations designed for use with the AX system. The AX-A and AX-AN sub stations are surface mount and will mount to a single gang box or can be set on a desk or...
Aiphone
Starting at
$232.00
$175.46
FEATURES
NH-1SA/A - Single-jack for NHR-8C bedside call button
NH-2SA/A - Dual-jack for NHR-8C bedside call button
- Bedside sub station for calling and communication
- Hands-free communication
- Flush mount with standard 2-gang box
SPECIFICATIONS
-
Wire Type: 4 twisted pair, low cap, PE, overall shield - use Aiphone #862208
-
Distance: 165' (22AWG)
Manufacturer Resources
NIM Nurse Call system Brochure
Product Specs
- Product Type:
- Sub Stations
- Series:
- NHX Series
- Subcategory:
- Audio Intercoms
- Commercial/Residential:
- Commercial
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Intercoms
- Product Category:
- Door Trim and Accessories
- Department:
- Door Hardware
Aiphone NH-1SA/A – Frequently Asked Questions
1) What is the difference between the Aiphone NH-1SA/A and NH-2SA/A patient stations?
Jack count. The NH-1SA/A is a single-jack bedside sub station and the NH-2SA/A is a dual-jack version, both taking the NHR-8C bedside call button. Order the dual-jack where a room has two beds and each patient needs their own call cord; single-jack for private rooms.
2) What size back box do I need to rough in for an Aiphone NH-1SA/A bedside station?
A standard 2-gang box. The NH-1SA/A and NH-2SA/A flush mount to a 2-gang box, so an electrician can rough in the openings with common boxes rather than a proprietary enclosure.
3) What wire do I run to an Aiphone NH-2SA/A patient station, and how far can it go?
Aiphone #862208, which is 4 twisted pair, low capacitance, PE insulated with an overall shield. On 22AWG the run distance is 165 feet, so lay out your riser and closet location around that limit before pulling cable.
4) Is the NHR-8C call button included with the NH-1SA/A, or do I order it separately?
The NH-1SA/A and NH-2SA/A are the wall stations with the jack; the NHR-8C bedside call button plugs into that jack and is a separate line item. Count one NHR-8C per jack you intend to use, so two per NH-2SA/A.
5) Does the Aiphone NH patient station need a handset, or can a patient talk from the bed?
Hands-free. The NH-1SA/A and NH-2SA/A sub stations do calling and two-way communication without the patient picking anything up, which is what you want at a bedside where the patient may not be able to reach or hold a handset.
6) Are the Aiphone NH-1SA/A and NH-2SA/A rated for commercial installation?
Both are commercial-grade equipment, part of Aiphone's NHX Series nurse call line. They are bedside sub stations, meaning they report back to a master station rather than working standalone, so they are specified as part of a system, not as a one-off room device.
How fast can I get the Aiphone NH-1SA/A delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Aiphone NH-1SA/A come with a warranty?
Absolutely. The Aiphone NH-1SA/A is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
