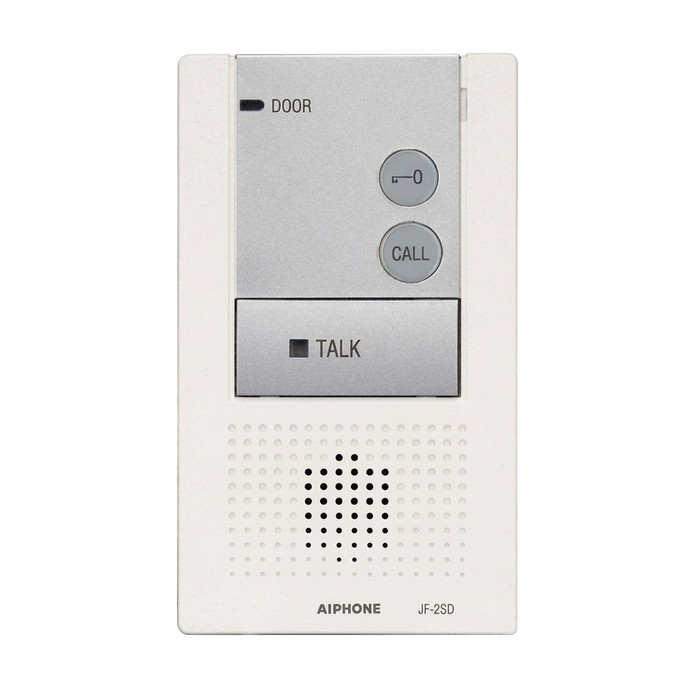

The JF-2SD is the audio only sub station for the JF series video entry security system. The JF system will support 2 video doors stations and 3 inside color monitor stations (1 master monitor and 2 subs).
The JF series has a built in picture memory feature that can be set to record automatically when the visitor calls, or the record can be done manually by the user. Up to 50 images can be recorded at a rate of 1 frame per second and 8 frames per image (400 total frames). Up to 10 images (80 frames) can be saved and protected from automatic overwriting.
From the JF-2SD you can answer the call from either door station, communicate with the visitor, and release the door. The JF-2SD can also place an all call to the other monitors/subs in the system. The JF-2SD has an adjustment for the receive volume and an adjustment for the Chime Tone volume.
FEATURES
- Hands-free communication
- Door release
- All Call between inside stations
- Surface mounts to wall on 1-gang box or ring
SPECIFICATIONS
- Communication: Hands-free (VOX) or push-to-talk (simplex)
- Mounting: Surface mount directly to wall
Manufacturer Resources
General Line Catalog (Full Catalog)
Product Specs
- Product Type:
- Sub Master Stations
- Series:
- JF Series
- Subcategory:
- Video Intercoms
- Commercial/Residential:
- Commercial
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Intercoms
- Product Category:
- Door Trim and Accessories
- Department:
- Door Hardware
Aiphone JF-2SD – Frequently Asked Questions
1) Can I add a second answering point to an Aiphone JF video intercom without adding another monitor?
That is exactly what the JF-2SD is for. It is the audio-only sub station for the JF series video entry system, so you get answer, talk, and door release at a second location without paying for another color monitor. A full JF system supports 2 video door stations and 3 inside color monitor stations (1 master monitor plus 2 subs), and the JF-2SD is the audio alternative when a location does not need the picture.
2) Does the JF-2SD show video from the door station?
No. Audio only. From the JF-2SD you can answer a call from either door station, talk to the visitor, and release the door, but there is no screen. If the person at that location needs to see who is at the door before releasing it, put a JF color monitor sub station there instead.
3) What kind of box do I need to rough in for an Aiphone JF-2SD sub station?
A single-gang box or ring. The JF-2SD surface mounts to the wall on a 1-gang box or ring, and it mounts directly to the wall surface, so there is no flush back box or trim ring to cut in. For a contractor that means standard 1-gang rough-in at the station location.
4) Can I use a JF-2SD as the main station for a door intercom system?
No. It is a sub station, so it works off a JF master monitor and cannot run the system on its own. A JF installation needs the master monitor station first; the JF-2SD is one of the two sub positions the system allows alongside it.
5) Is the Aiphone JF-2SD hands-free or do you have to hold a button to talk?
Either. The JF-2SD runs hands-free VOX or push-to-talk simplex. Hands-free is the usual choice at a reception or back-office station; push-to-talk is the one to use in a noisy space, where VOX keeps cutting the visitor off because ambient noise holds the channel open.
6) Can staff at the JF-2SD call the other intercom stations inside the building?
Yes, it does an all call to the other monitors and subs in the JF system. That is useful in a small office or multi-tenant front desk where you want to page everyone inside rather than answer the door. Calls between inside stations are part of the station's function, not an add-on.
7) Can I release the door from an Aiphone JF-2SD audio sub station?
Door release is built in. From the JF-2SD you answer the call from either door station, speak to the visitor, and release the door, so a second staff position can let people in without walking to the master monitor.
8) Does the audio sub station record images like the JF master monitor does?
The picture memory lives in the JF video system, not in the audio sub. The JF series records up to 50 images at 1 frame per second and 8 frames per image (400 frames total), automatically on a visitor call or manually, with up to 10 images (80 frames) protected from being overwritten. Since the JF-2SD has no screen, it is not where you review those images.
9) Is the Aiphone JF-2SD rated for commercial use or is it a residential intercom?
Aiphone lists the JF-2SD as commercial. It gets used in small commercial entries, offices, and multi-family lobbies where a second answering point needs door release but not video.
10) Can I set the chime volume separately from the call volume on the JF-2SD?
Yes, two separate adjustments: one for receive volume and one for chime tone volume. That matters in a space where you want the incoming chime loud enough to hear across a room but the visitor's voice at a normal conversational level, or the reverse at a quiet front desk.
