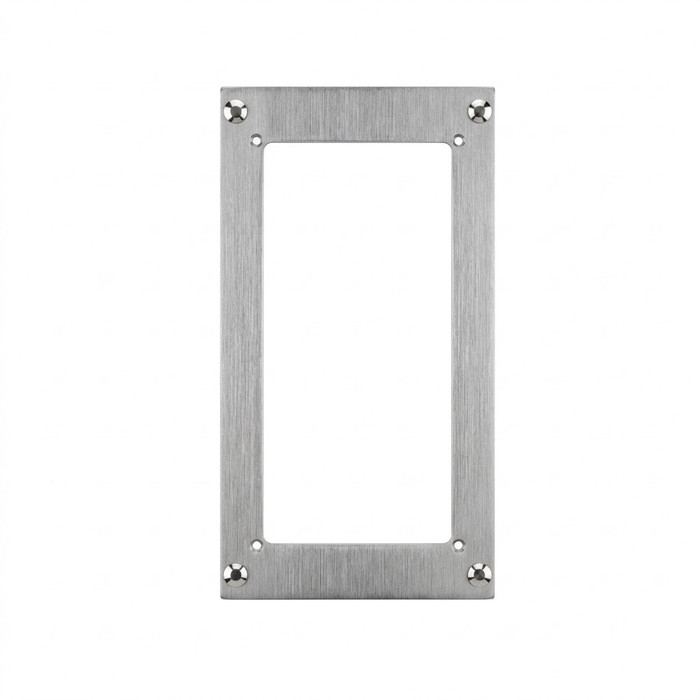

The TW-SPL is an adaptor plate for Aiphone’s standard IS and IX Series door stations to mount to an
Aiphone tower. The TW-SPL will secure to the middle module of the Aiphone tower and provide
the mounting pattern for the narrower standard Aiphone IS and IX Series stations.
This adaptor plate is ideal for installing TW-22/A Series high / low towers in vehicle gate entry
applications, or any time a non-emergency station needs to be mounted into an Aiphone tower.
Compatible stations are: IS-DVF, IS-IPDVF, IS-SS, IX-DVF, and IX-SSA.
Mounting:
Secure the TW-SPL adaptor plate to the Aiphone
tower using the supplied screws.
Connect the required wires to the IS or IX Series
door station and secure the door station to the
TW-SPL using the security screws and security
screw driver supplied with the door station.
SPECIFICATIONS
Power Source: 12V DC, 1.5A (supplied)
Video Codecs: H.264, H.263, H.263+
Network Interface: Dual Gigabit with integrated
PoE+ (IEEE 802.3at)
PSTN FXO Ports: 2
Protocols: TCP/UDP/IP, RTP/RTCP,
ICMP, ARP, DNS, DDNS,
DHCP, NTP, TFTP, SSH,
HTTP/HTTPS, PPPoE, SIP,
STUN, SRTP, TLS, LDAP
Encryption: SRTP, TLS, HTTPS, SSH
Operating Temp: 32° ~ 104°F (0° ~ 40°C)
Dimensions: 6-⅛" H x 8-⅞" W x 1-⅜" D
Dimensions:
11" H x 5-⅞" W x 1⁄16" D
Package Contents:
TW-SPL adaptor plate
Mounting screws (qty. 4)
