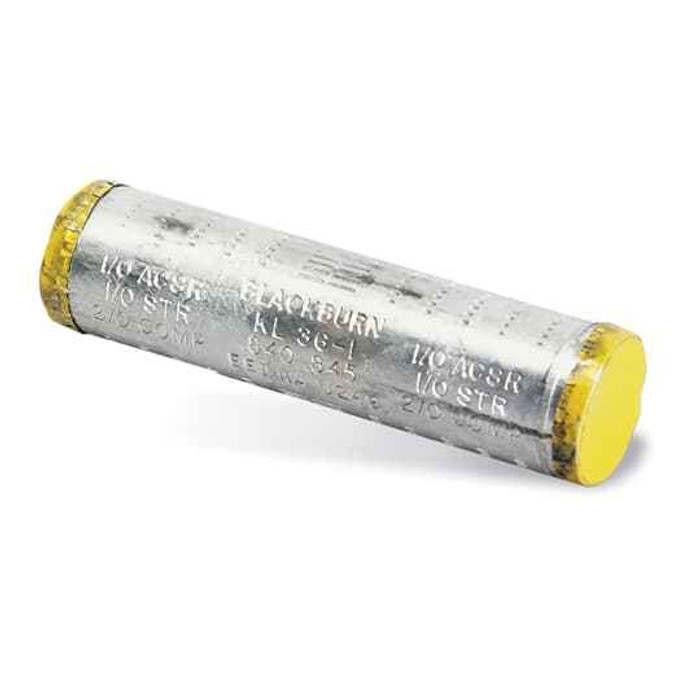

AL SERVENTR SPLICE A:2 B:2 3.5
Manufacturer Resources
Product Specs
- Connection Type:
- Compression
- Country Of Origin:
- Mexico (MX)
- Insulation Material:
- None
- Number Of Conductors:
- 2
- Product Group:
- Wire & Cable Management
- Product Type:
- Compression Splice Service Entrance
- Selling Unit Of Measure:
- each
- Standards:
- Passes the requirements of ANSI C119.4
- Type2:
- Wire or cable compression splice
- Department:
- Electrical
- Product Subgroup:
- Splices
- Product Size:
- 3-1/2 Inch
- Installation Category:
- None
Blackburn KL25-1 – Frequently Asked Questions
1) Is the Blackburn KL25-1 splice insulated, or do I have to insulate it myself?
The KL25-1 is a bare aluminum compression splice, no insulation material on it. You cover it in the field, typically with tape or a heat shrink/cold shrink sleeve sized to the finished splice, or make it up inside an enclosure. Plan that material into the job, it does not come with the connector.
2) How many conductors does the Blackburn KL25-1 service entrance splice take?
Two, one conductor per side. The A:2 B:2 marking in the description refers to the port arrangement, and the spec sheet lists it as a 2 conductor splice, so it is a straight run-to-run connection, not a multi-tap block. If you need to land three or more cables at one point, use a multi-port connector instead.
3) Does the KL25-1 splice meet ANSI C119.4 for underground and service entrance connectors?
Yes. The KL25-1 passes the requirements of ANSI C119.4, which is the standard for electric connectors used on insulated conductors in underground and enclosed applications. That is usually the line item an inspector or a utility spec asks for on a service entrance splice.
4) Do I need a crimp tool for the KL25-1, or can it be tightened with a wrench?
It is a compression splice, not a set-screw or mechanical connector, so it has to be crimped with a die-type compression tool. There is no lug bolt to torque. If you want a connector you can make up with a hex key and a wrench in the field, you want a mechanical set-screw splice instead.
5) How long is the Blackburn KL25-1 splice barrel?
It is listed at 3-1/2 inches. That matters for two things: the space you need inside a pull box, meter socket, or trough to make the splice up straight, and the room you need for the insulating sleeve, which has to overlap past both ends of the 3-1/2 inch body.
6) Is the Blackburn KL25-1 sold individually or in a bag of multiples?
Sold each, so the quantity you order is the number of splices you get. Order by manufacturer part number KL25-1. For a two-conductor service entrance repair you need one per conductor, so a typical single-phase repair takes two.
