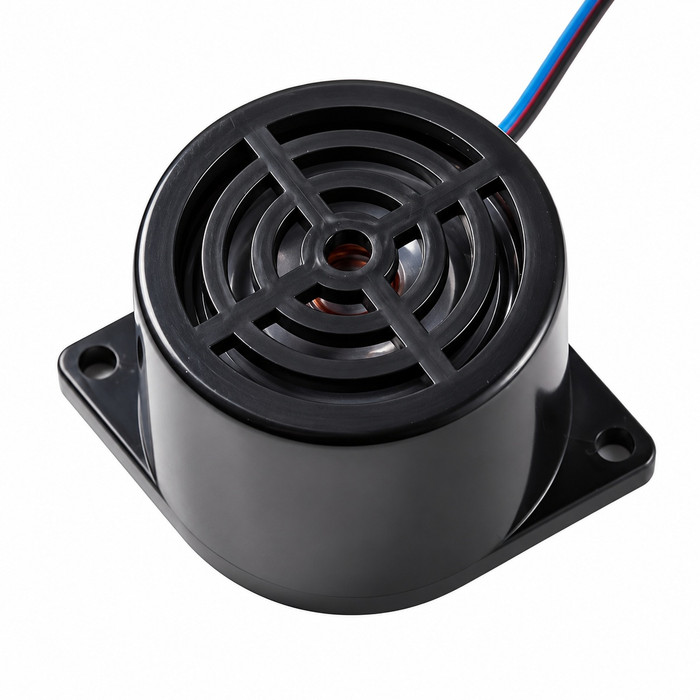

Alarm Controls System Accessories - PA-200 Piezo Chime, Fits 1" Diameter Hole

Alarm Controls System Accessories - PA-200 Piezo Chime, Fits 1" Diameter Hole

(No reviews yet) Write a Review

Model: PA-200

In Stock (leaves warehouse same day if ordered before 3pm ET)

$55.48
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Alarm Controls System Accessories - PA-200 Piezo Chime, Fits 1" Diameter Hole

Piezo chime can be mounted in 1-1/4" hole on a single gang wall plate

Standard Features
• Sound level 80 to 85 dB
• Chime mounts in 1-1/4" hole on single gang wall plate
• Chime can be flange mounted

Dimensions
• Required mounting hole: 1-1/4"
Electrical
• Operates on 12 -24 VDC
• Current draw 95mA at 12
VDC, 140mA at 24 VDC
• 6” red, blue, and black leads

Resources:

Product Specs

Subcategory:
Parts and Accessories
Commercial/Residential:
Commercial
Product Type:
Buzzer
Product Group:
Electronic Access Controls
Product Subgroup:
Parts and Accessories
Product Voltage:
12/24 VDC
Product Category:
Electronic Access Controls
Department:
Door Hardware

Alarm Controls PA-200 – Frequently Asked Questions

1) What voltage does the Alarm Controls PA-200 piezo chime run on?
The PA-200 operates on 12 to 24 VDC, so it can be driven straight off the same low-voltage supply feeding a maglock or strike circuit. Current draw is 95mA at 12 VDC and 140mA at 24 VDC, so budget for that when you size the power supply and figure the remaining headroom on the circuit.
2) How loud is the PA-200 piezo chime, and is it enough for a lobby or corridor?
Sound output is 80 to 85 dB. That carries well in a reception area, corridor, or behind a counter where staff need an audible cue that a door has been released or forced. In a noisy mechanical space or a large open warehouse it is an announcer, not an alarm horn, so plan placement close to the person who needs to hear it.
3) How do I wire the PA-200 piezo chime in?
The chime comes with 6 inch red, blue, and black leads, so you are splicing to your field wiring inside the gang box rather than landing on screw terminals. Keep the box deep enough for the pigtails and the splices behind the plate.
4) Can I run the PA-200 chime off a 24 volt access control power supply?
Yes, 24 VDC is within its operating range of 12 to 24 VDC. At 24 VDC it pulls 140mA. Note it is a DC device, so do not put it on a 24 VAC transformer feed.
5) Is the Alarm Controls PA-200 chime meant for commercial access control work?
Yes. The PA-200 is a commercial-grade accessory built for electronic access control systems, typically paired with door releases, exit buttons, and door position switches to give an audible annunciation at the control point. It is an accessory device, not a standalone alarm panel.
6) How many PA-200 chimes can I put on one power supply?
Work it from the draw: 95mA each at 12 VDC, 140mA each at 24 VDC. On a 1 amp 12 VDC supply that is roughly ten chimes on paper before you count the locks, readers, and anything else sharing the circuit, so size the supply for the whole load rather than the chimes alone.
