American Lock A3560WOKAMK 1-3/...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$60.47
American Lock American Lock A3560WOKAMK 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike (Master Keyed) AME-A3560WOKAMK

American Lock A3560WOKAMK 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike (Master Keyed)

(No reviews yet) Write a Review

Model: AME-A3560WOKAMK 2KEY
$60.47

In Stock (leaves warehouse same day if ordered before 3pm ET)

$60.47
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

AMERICAN LOCK A3560WOKAMK 1-3/4IN SOLID BRASS SMALL FORMAT INTERCHANGEABLE CORE PADLOCK WITHOUT CYLINDER OVERVIEW

A3560WOKAMK 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder. Small Format Interchangeable Cores & Padlocks - 1-3/4in Solid Brass.

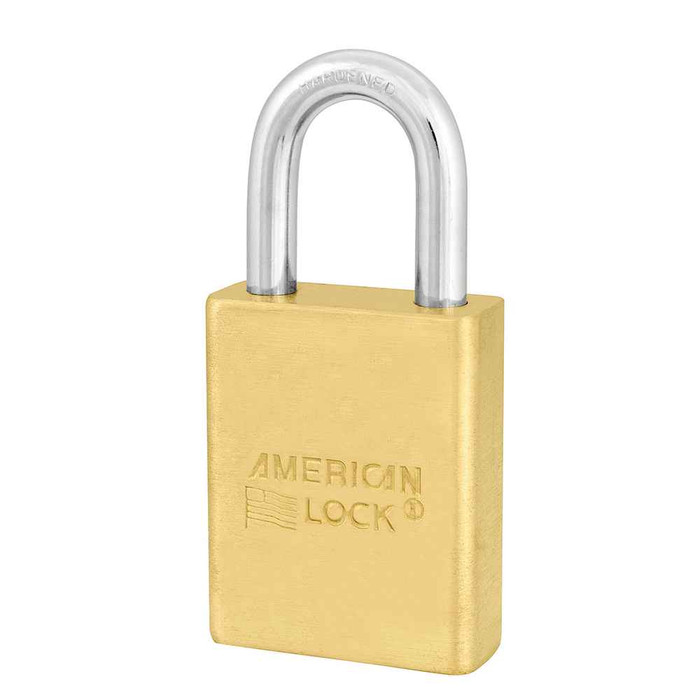

The American Lock No. A3560WOKAMK Solid Brass Interchangeable Core padlock features a 1-3/4in (44mm) wide solid brass body and a 1-1/8in (29mm) tall, 5/16in (8mm) diameter hardened boron alloy shackle for superior cut resistance. Dual ball bearing locking mechanism resists pulling and prying. Padlock is available with or without core with a choice of 16 Small Format interchangeable core keyways including Best®, Arrow® & Falcon® to match this padlock to your door locks.

Buy the American Lock A3560WOKAMK 1-3/4in Solid Brass Small Format Interchangeable Core Padlock for easy installation and dependable door hardware solution.

AMERICAN LOCK A3560WOKAMK 1-3/4IN SOLID BRASS SMALL FORMAT INTERCHANGEABLE CORE PADLOCK WITHOUT CYLINDER PRODUCT FEATURES

  • 1-3/4in (44mm) wide solid brass body
  • Brass body provides extra corrosion resistance in caustic, corrosive, salty environments
  • 1-1/8in (28mm) tall, 5/16in (8mm) diameter hardened boron alloy steel shackle for superior cut resistance
  • Dual stainless steel ball bearing locking mechanism that resists pulling and prying
  • Small Format Interchangeable Core padlock - 16 keyway options available
  • Marine & Offshore Security
  • Marine Environments
  • Tool Cribs
  • Utility Industry
  • Keying Options
  • Shackle Options

AMERICAN LOCK SMALL FORMAT INTERCHANGEABLE CORES & PADLOCKS - 1-3/4IN SOLID BRASS COLLECTION

American Lock A3560WO (A3560WOKD) 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different
American Lock A3560WOUN 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Uncombinated
American Lock A3560WOKA 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike
American Lock A3560WOMK 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different (Master Keyed)
American Lock A3560WOKAMK 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike (Master Keyed)
American Lock A3561WO (A3561WOKD) 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different
American Lock A3561WOUN 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Uncombinated
American Lock A3561WOKA 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike
American Lock A3561WOMK 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different (Master Keyed)
American Lock A3561WOKAMK 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike (Master Keyed)
American Lock A3562WO (A3562WOKD) 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different
American Lock A3562WOUN 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Uncombinated
American Lock A3562WOKA 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike
American Lock A3562WOMK 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Different (Master Keyed)
American Lock A3562WOKAMK 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder, Keyed Alike (Master Keyed)

RESOURCES & DOWNLOADS

American Lock A3560WOKAMK 1-3/4in Solid Brass Small Format Interchangeable Core Padlock Without Cylinder Catalog

Manufacturer Resources

Product Specs

Subcategory:
Solid Body Padlocks
Shelf Pack Qty:
6
Master Carton Qty:
24
Shackle Width:
3/4"
Shackle Diameter:
5/16"
Keyed:
Yes
Product Group:
Other / Miscellaneous Hardware
Product Subgroup:
Padlocks
Product Type:
Padlocks
Commercial/Residential:
Commercial
Cylinder Included:
No
Product Model:
A3560KAMK
Product Color:
Gold
Product Shackle Length:
1-1/8"
Product Style:
Small Format Interchangeable Cores & Padlocks - 1-3/4in Wide
Product Category:
Other / Miscellaneous Hardware
Product Substrate:
Brass
Product Width:
1-3/4"
Department:
Door Hardware

American Lock AME-A3560WOKAMK 2KEY – Frequently Asked Questions

1) Does the American Lock A3560WOKAMK padlock come with a cylinder core?
No core is supplied. The A3560WOKAMK ships as a body and shackle only, so you install your own small format interchangeable core (SFIC). That is what the WO in the part number means. If you want the padlock to work with the cores already in your building, pull a spare core from your existing keyway and drop it in.
2) What does keyed alike master keyed mean on this American Lock brass padlock?
Keyed alike master keyed (KAMK) means every padlock on the order opens with the same change key, and all of them also open under your master key. That suits a tool crib or a run of utility enclosures where one crew key covers the group and a supervisor master covers everything. If you need each lock on its own key under the master, order the A3560WOMK instead; if you want no factory combination at all so you can key the cores yourself, the A3560WOUN is the uncombinated version.
3) Will an American Lock SFIC padlock accept my Best, Arrow or Falcon cores?
Yes. The 1-3/4 inch solid brass A3560WO body takes small format interchangeable cores, with 16 SFIC keyway options offered including Best, Arrow and Falcon, so the padlock can be brought onto the same key system as your door locks.
4) What are the shackle dimensions on the A3560WO, and will it fit through my hasp?
The shackle is 5/16 inch diameter with 1-1/8 inch vertical clearance and 3/4 inch of horizontal clearance between the legs. That is enough for standard hasps and most chain links sized for a 5/16 inch shank, but it will not reach through a thick stacked hasp or a wide flange. For longer reach, the A3561WO and A3562WO carry the same solid brass body in the other shackle lengths.
5) Which padlock should I use instead of the American Lock A3560WOKAMK when the hasp needs a longer shackle?
The A3560WOKAMK has a 1-1/8 inch shackle length, which suits tight hasps and tool crib staples. For a taller clearance, the Sargent 60-858-2 is a removable core padlock with a 2 inch stainless steel shackle, so it takes the same interchangeable-core approach with far more vertical reach.
6) My facility is on a KESO system. Do I use the American Lock A3560WOKAMK or something else?
The A3560WOKAMK ships without a cylinder and is intended to take a small format interchangeable core so it matches Best, Arrow or Falcon style keyways already on your doors. If the facility is standardized on KESO instead, the Sargent 82-856 is a non-key retaining padlock in the KESO series with a 2 inch by 2 inch brass case and stainless steel shackle, which stays on that key system.
7) Is a brass padlock the right choice for marine or coastal outdoor use?
Brass is the reason to pick this one. The A3560WO uses a solid brass body for corrosion resistance in salty, caustic and wet conditions, which is why it is put on marine and offshore work, docks, and utility gear. The shackle is hardened boron alloy steel for cut resistance and the locking mechanism uses dual stainless steel ball bearings that resist pulling and prying. If you want a stainless body instead of brass, the Medeco 521 G8R is a weather-tight padlock with a solid stainless steel body, also supplied less cylinder.
8) How many keys come with each lock, and can I add a chain?
Keys per lock are a choice you make on the order: 0, 1, 2 (standard), 3, or 4. Because the padlock ships without a core, the key count applies to the cores you have keyed to the order. Chain is also optional, either none or a #40 sash chain 9 inches (229mm) long, zinc plated, which is what you want on a gate or panel where the lock should stay tethered when it is off the hasp. There is also a key code field on the order so you can specify an existing code to match.
9) What is the difference between the A3560WO and the Sargent 60-858-2 or Schlage KS23 padlocks?
All are commercial padlocks, but they differ in core system and reach. The A3560WO is a 1-3/4 inch solid brass body built around a small format interchangeable core, supplied without the core so you key it to your own system. The Sargent 60-858-2 is a removable core padlock with a 2 inch stainless steel shackle, so it suits Sargent key systems and needs more vertical clearance. The Schlage KS23D/KS23F is a brass padlock with the same 5/16 inch shackle diameter. Sargent also offers key retaining (758) and non-key retaining (858) versions with a US4 satin brass finish if key retention matters on your openings.
10) For a marine or salt-air application, what compares to the American Lock A3560WOKAMK brass padlock?
The A3560WOKAMK uses a solid brass body for corrosion resistance in caustic, corrosive and salty environments. Two other corrosion-minded options are the Medeco 521 G8R weather-tight padlock, which uses a solid stainless steel body and is supplied less its pop-out cylinder, and the ABUS T84MB/30 Nautic, a sleeved padlock with a 13/64 inch shackle diameter and 1-17/64 inch body width. The Medeco 521 G8R is the closest in spirit since it is also a body-without-cylinder purchase.
11) Is an ABUS 72/30 safety padlock a substitute for the American Lock A3560WOKAMK?
No. The ABUS 72/30 is an anodized aluminum safety padlock with a 1-1/4 inch body width and a 3/16 inch shackle diameter, built for lockout/tagout style use. The A3560WOKAMK is a 1-3/4 inch wide solid brass commercial padlock with a 5/16 inch shackle that accepts a small format interchangeable core so it keys into an existing door system. They are not interchangeable in either body size or keying approach.
12) I need a brass padlock with a heavier shackle than the American Lock A3560WOKAMK. What are my options?
The A3560WOKAMK uses a 5/16 inch diameter shackle in a 1-3/4 inch solid brass body. If you want more shackle cross-section, the Medeco 5260 is a 52 Series brass body padlock with a 7/16 inch shackle diameter and M3 key technology in satin chrome. Note that the Medeco is keyed to its own system rather than accepting a small format interchangeable core.
13) What is the difference between the American Lock A3560WOKAMK and the Sargent 858 padlock?
The Sargent 858 is a non-key retaining padlock with a stainless steel shackle in a US4 satin brass finish, while the Sargent 758 is the key retaining version of the same platform. The A3560WOKAMK differs in that it is sold as a brass body without a cylinder, so the core is chosen separately to match the keyway already in use on your doors, and it carries a 5/16 inch hardened boron alloy shackle.
14) Is there an electronic alternative to the American Lock A3560WOKAMK for auditing who opens a padlock?
Yes. The Medeco 54515G is an XT electronic indoor/outdoor padlock, non-key retaining, with a 5/16 inch shackle diameter and supplied with a cylinder. That matches the A3560WOKAMK on shackle diameter but replaces mechanical small format interchangeable core keying with an electronic credential system, so it is a different keying program rather than a drop-in.
15) How are these brass SFIC padlocks packed for a bulk order?
Packaging runs 6 per shelf pack and 24 per master carton, which is a practical unit if you are standardizing a facility and want a keyed alike group issued in batches rather than singles.
16) Are the ABUS 74/40 and 76/40 padlocks equivalent to the American Lock A3560WOKAMK?
They serve different jobs. The ABUS 74/40 is an insulated safety padlock with a 6-pin cylinder, 1/4 inch shackle diameter and 1-1/2 inch body width, and the ABUS 76/40 is a plastic-covered aluminum core padlock with a 1/4 inch shackle and 1-37/64 inch width. Both are narrower in body and shackle than the 1-3/4 inch solid brass A3560WOKAMK, and neither is built to take a small format interchangeable core.
17) What finish or color is the American Lock A3560WO padlock?
Brass, gold in appearance, because the body is solid brass rather than a plated shell. On a run of doors and gates it reads closest to a satin brass or US4 hardware finish, such as the Sargent 858 in US4 satin brass, if you are trying to keep a site visually consistent.
