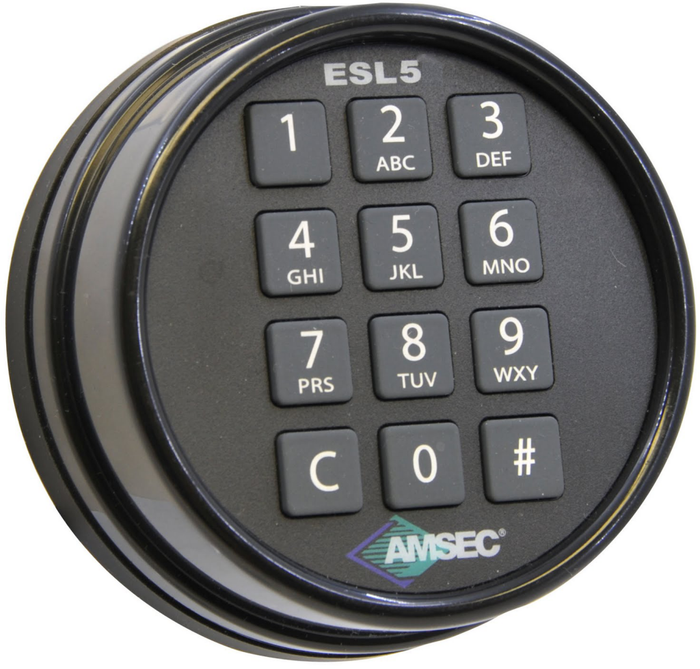

American Security ESL5 Series Electronic Keypad Retrofit Kit

American Security ESL5 Series Electronic Keypad Retrofit Kit

(No reviews yet) Write a Review

Model: 0616185
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$190.00
$135.30
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

AMSEC ESL5 Series Electronic Keypad Retrofit Kit

The ESL5 is an electronic keypad retrofit kit designed to replace most mechanical combination locks on existing safes. The swing bolt design is reversible, supporting both right-hand and left-hand installation without additional hardware. UL Listed Type 1.

Features

  • UL Listed Type 1
  • Backlit keypad with audible and visual feedback
  • Stealth mode silences the keypad beeper
  • 15-minute penalty lockout after four consecutive incorrect entries
  • Reversible swing bolt for right- or left-hand installation
  • Auto-lock engages when bolt work is thrown, preventing the safe from being left in a day-lock position
  • Replaces most mechanical safe locks
  • Powered by one 9V battery, replaceable at the keypad housing

Manufacturer Resources

Product Specs

Subcategory:
Specialty Locks
Series:
ESL5 Series
Commercial/Residential:
Commercial
Electronic:
Yes
Product Type:
Safe Locks
Product Group:
Mechanical Locks
Product Subgroup:
Specialty Locks
Lock Type:
Electronic Keypad Safe Lock
Power Source:
Battery
Battery Type:
9V Battery
Bolt Type:
Swing Bolt
Auto Lock:
Yes
Keypad Type:
Backlit
Department:
Safety
Product Category:
Safe Locks

Amsec 0616185 – Frequently Asked Questions

1) Can I replace the mechanical dial on my existing safe with an AMSEC ESL5 keypad?
That's exactly what the ESL5 Series is built for. It's a retrofit kit that replaces most mechanical combination locks on existing safes, so you keep the safe and the bolt work and swap the lock and dial for a backlit keypad. The swing bolt is reversible, so one kit covers both right-hand and left-hand installations with no extra hardware to order.
2) Does the ESL5 safe lock need to be ordered left-hand or right-hand?
No handing to specify. The ESL5 uses a reversible swing bolt that installs right-hand or left-hand without additional hardware, so the same kit works whichever way the safe door swings. The only choice you make on the order is finish: Black, Chrome, or Black Nickel.
3) What happens if a tenant or employee keys the wrong combination into the safe lock repeatedly?
After four consecutive incorrect entries the ESL5 goes into a 15-minute penalty lockout. The keypad stops accepting codes for that period, which shuts down someone standing there trying numbers. Nothing is damaged and no reset is needed, you just wait it out and enter the correct code.
4) Will this stop staff leaving the safe on day lock at close?
Yes, and that's the point of the auto-lock feature. When the bolt work is thrown, the ESL5 locks itself automatically, so the safe can't be left sitting in a day-lock position where it looks shut but isn't secured. For a retail or hospitality operator with cash-handling staff turning over, that removes the most common way a safe gets left open overnight.
5) What battery does the AMSEC ESL5 safe keypad take, and do I have to open the safe to change it?
One 9V battery, and it's replaceable at the keypad housing on the outside of the door. You don't need the safe open to change it, which matters because a dead battery on an interior-battery lock is how people end up calling a safe technician.
6) Is a swing bolt lock the right choice, or should I be looking at a deadbolt-style safe lock?
The ESL5 is a swing bolt lock: the bolt pivots out of the way rather than sliding straight back, so it takes less force to retract and puts less strain on the lock when the door is under pressure. That's why swing bolt is the usual pick for a retrofit on an existing safe, where you're driving the same bolt work the old mechanical dial drove. If your safe's mechanism specifically requires a square-bolt or deadbolt lock body, this isn't the match, check what the lock you're pulling out uses before ordering.
7) Can the ESL5 keypad be used quietly, without beeping every time someone opens the safe?
There's a stealth mode that silences the keypad beeper. Normal operation gives both audible and visual feedback through the backlit keypad, so you can see and hear each keypress; stealth mode drops the sound and leaves the visual. Useful at a front counter or a teller position where you don't want the tones announcing that the safe is being opened.
8) Is the AMSEC ESL5 rated for commercial use or is it a residential safe lock?
Commercial. The ESL5 is classified as a commercial electronic keypad safe lock, and the feature set matches that use: UL Listed Type 1, penalty lockout, and auto-lock to prevent day-locking. It works on a home safe too, but it's specified for business and institutional installs.
9) Can I match the ESL5 keypad to the trim on the rest of my safes?
Three finishes: Black, Chrome, and Black Nickel. For a property manager or facilities buyer standardizing a group of safes, pick one and order it across the fleet so every unit reads the same and staff aren't relearning a different dial on each door.
10) Can you read the safe keypad in a dark closet or back office?
The keypad is backlit, so the numbers are legible in a poorly lit stockroom, closet, or under-counter location where a mechanical dial would need a flashlight. It gives both audible and visual confirmation on each entry, so you know a keypress registered without staring at it.
