Metallics JTWA57 Anchor 5/16 X 1-1/2 Tie Wire Wdg St-zn (Jar 100)

The JTWA57 is a 5/16 inch diameter wedge anchor, so the hole in the concrete is drilled with a 5/16 inch carbide bit. Wedge anchors are sized to the anchor diameter, not oversized, and the hole must be drilled deeper than the 1-1/2 inch anchor length so the anchor can be set fully.

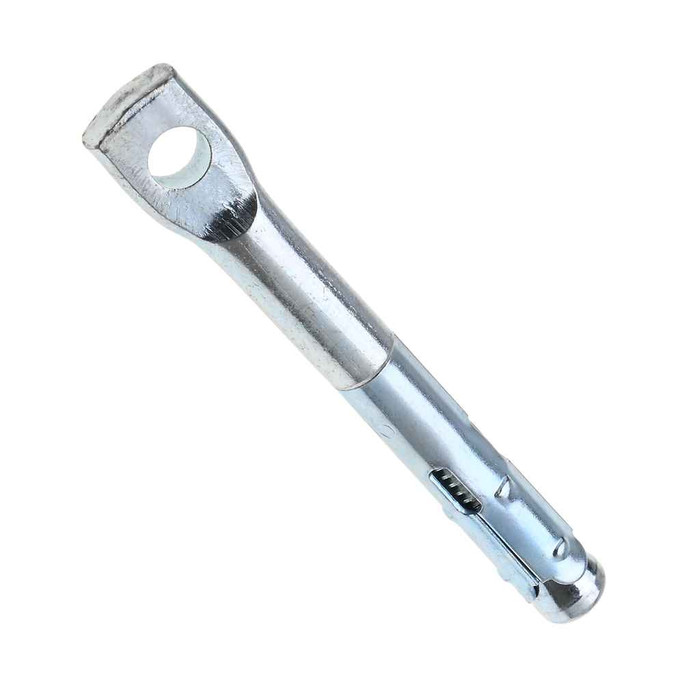

A tie wire wedge anchor sets into drilled concrete and leaves a preattached loop of wire at the head, so hangers for conduit, cable tray drops, or suspended fixtures can be tied straight to it without a nut or rod coupler. The Metallics JTWA57 is the 5/16 x 1-1/2 inch version, a department-electrical anchor packed for overhead ceiling and deck work.

At 1-1/2 inches overall length, the JTWA57 is a short-embedment anchor, so it only needs a shallow slab or deck to get its embedment. That length also means it is intended for suspending light loads such as wire, conduit hangers and threaded rod hanger wire, not for heavy structural attachment.

The JTWA57 is a zinc plated steel anchor. Zinc plating handles dry interior concrete and normally damp interior conditions, but it is not a stainless or hot dip galvanized anchor, so for exterior exposure, wet locations or corrosive environments you want a stainless wedge anchor instead.

Wedge anchors like the 5/16 x 1-1/2 inch JTWA57 depend on expansion against solid material, so they belong in solid poured concrete. Hollow block and brick with voids do not hold a wedge anchor reliably; use a sleeve anchor or a toggle rated for hollow base material there.

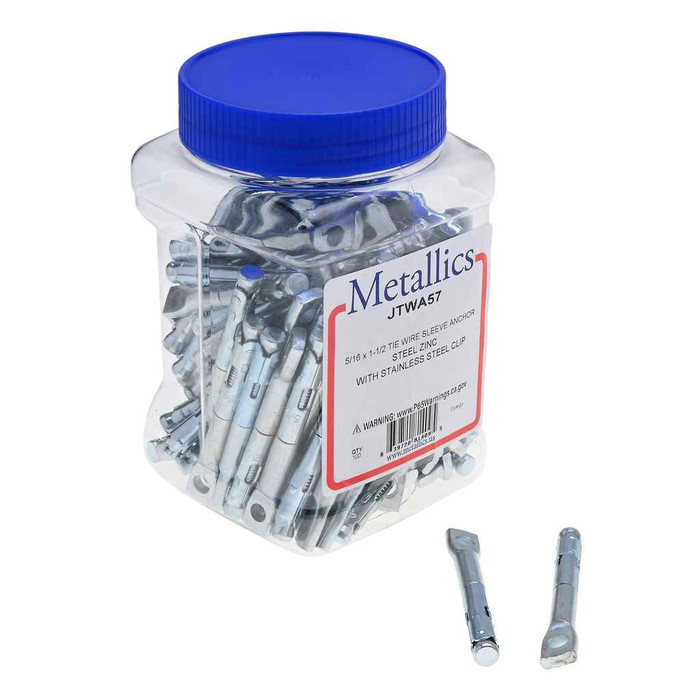

Each jar holds 100 of the 5/16 x 1-1/2 inch tie wire wedge anchors. Jar packaging is the ordering unit, so a quantity of one is 100 pieces, which is how these get bought for a floor or a full conduit run rather than piece by piece.

Yes. Once a wedge anchor is driven and the clip expands against the hole wall, it cannot be backed out and reused. Order enough of the 5/16 x 1-1/2 inch anchors to cover misplaced holes, since each jar of 100 is consumed as installed.
