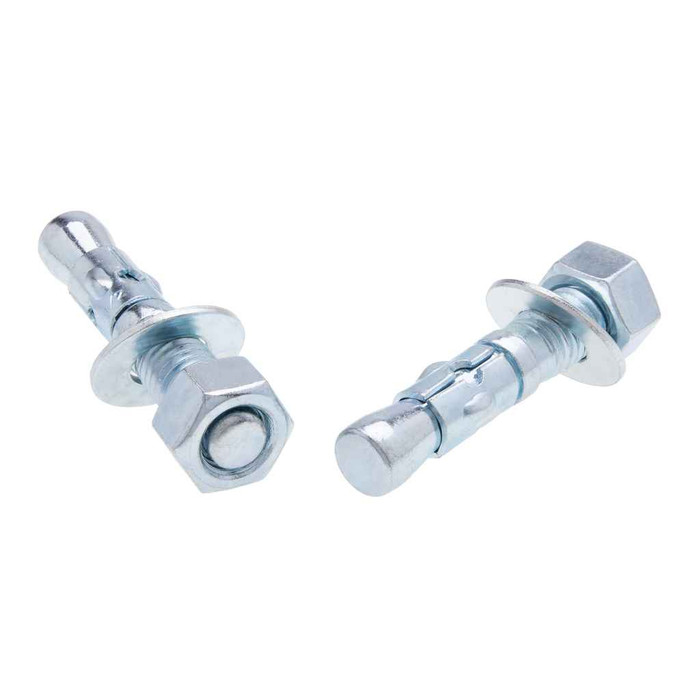

Anchors 1 x 6 Wdg St-zn (Box 5)
Manufacturer Resources
Product Specs
- Division:
- Electrical H1
- Pack Type:
- Box
- Product Group:
- Fasteners
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
- Product Subgroup:
- Anchors
Metallics TS106 – Frequently Asked Questions
1) What hole diameter do I drill for a 1 inch wedge anchor like the TS106?
A wedge anchor is drilled at its nominal diameter, so the TS106 at 1 inch diameter takes a 1 inch carbide bit in concrete. Drill depth has to exceed the embedment you are using off the 6 inch overall length, since the anchor length includes whatever thickness of material you are fastening plus the nut and washer.
2) How many anchors come in a box of Metallics TS106?
Five anchors per box. If you are setting a run of heavy equipment bases or strut supports, count your hole pattern first, because 1 inch diameter wedge anchors go quickly at five to a box.
3) Can I use the Metallics TS106 wedge anchor in block or brick instead of concrete?
Wedge anchors like the TS106 are concrete anchors. They rely on a wedge expanding against solid, uncracked concrete, so hollow block and brick are the wrong base material. For masonry with voids, use a sleeve anchor or a screen tube with adhesive instead.
4) Is the TS106 anchor okay for outdoor or damp locations?
The TS106 is zinc plated steel, which is a mild corrosion coating meant for dry interior service. For exterior exposure, washdown areas, or anywhere chlorides are present, specify a stainless wedge anchor rather than zinc plated.
5) What does the 6 inch length on the TS106 anchor actually give me in embedment?
The 6 inches is the total stud length, not embedment. Subtract the thickness of the fixture you are bolting down plus roughly the nut and washer stack, and the balance is what goes into the concrete. For a 1 inch diameter anchor that leaves ample embedment for structural attachments like column bases, equipment rails, and heavy strut, provided your slab is thick enough to take it.
6) Does the TS106 wedge anchor come with a nut and washer?
A wedge anchor of this type ships as a one-piece assembly with the expansion clip, nut and washer already on the stud, so no separate hardware is needed. What you do need on site is a 1 inch carbide bit, a hammer drill, a blow-out bulb or vacuum to clear the hole, and a torque wrench to set it.
