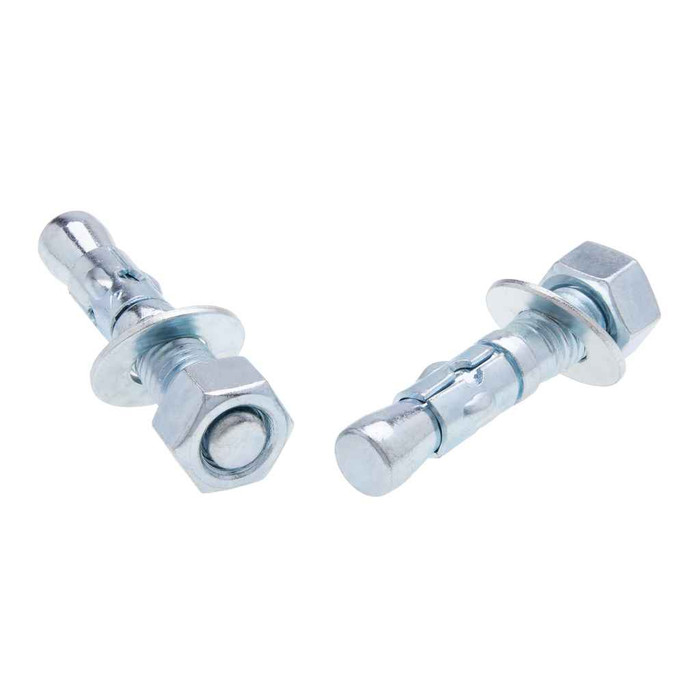

Anchors 1/2 X 10 Wedge Ancr St-zn (Box 25)
Manufacturer Resources
Product Specs
- Division:
- Electrical H1
- Pack Type:
- Box
- Product Group:
- Fasteners
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
- Product Subgroup:
- Anchors
Metallics TS1210D – Frequently Asked Questions
1) What size hole do I drill for a 1/2 inch wedge anchor?
A 1/2 inch wedge anchor like the TS1210D is set in a 1/2 inch diameter hole drilled with a carbide hammer bit. Wedge anchors are nominal-diameter matched, so the bit size equals the anchor size. Drill deeper than the embedment you need so dust can settle below the anchor.
2) Can I use a zinc plated wedge anchor outdoors or in a wet location?
Zinc plating on the TS1210D is a mild corrosion coating meant for dry interior concrete work, electrical rooms, strut and conduit supports, equipment pads indoors. For exterior, coastal, or continuously damp settings, use a stainless wedge anchor instead; zinc will rust where water sits.
3) Will a wedge anchor hold in block or brick, or only in concrete?
Wedge anchors such as the 1/2 inch TS1210D are designed for solid poured concrete. They expand against the hole wall, and hollow block or brick webs can blow out under that force. In hollow masonry use a sleeve anchor or a screw anchor rated for the base material.
4) How many anchors come in a box of Metallics TS1210D?
They ship 25 per box, packed as a box quantity rather than loose. One box covers 25 holes, so plan your count against your base plates or strut supports before ordering.
5) Do I need anything else to install the TS1210D wedge anchors?
The anchors come with the nut and washer assembled on the threaded end, which is how wedge anchors ship. You supply the 1/2 inch carbide bit, a rotary hammer, a hammer to drive the anchor flush, and a wrench to torque the nut. No adhesive or screen tube is involved.
6) Why would I choose a 10 inch anchor instead of a shorter one?
Length on a wedge anchor covers the fixture thickness plus embedment. At 10 inches the TS1210D leaves plenty of stud above the concrete for thick base plates, grout beds, topping slabs, leveling shims, or stacked steel. For a thin bracket on bare concrete it is far more anchor than needed and a shorter 1/2 inch anchor is the cleaner choice.
