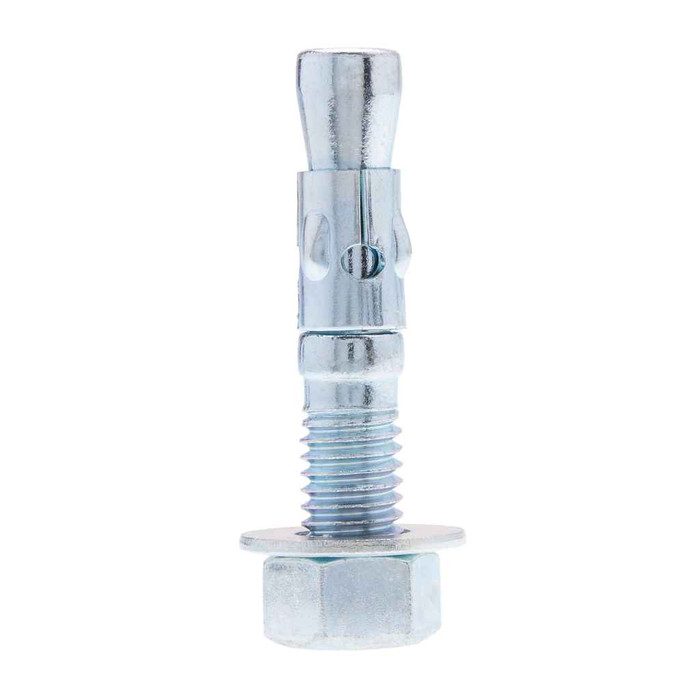

Anchors 1/2 X 4-1/4 Wedge Ancr St-zn (Box 100)
Manufacturer Resources
Product Specs
- Division:
- Electrical H1
- Pack Type:
- Box
- Product Group:
- Fasteners
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
- Product Subgroup:
- Anchors
Metallics TS4414C – Frequently Asked Questions
1) Can I use a 1/2 x 4-1/4 wedge anchor in hollow block or brick?
No. Wedge anchors like the TS4414C work by expanding a clip against the wall of a drilled hole, so they need solid poured concrete. In hollow CMU, brick, or mortar joints the clip has nothing to bear against and the anchor will spin or pull. For hollow masonry use a sleeve or toggle type anchor instead.
2) Is a zinc plated wedge anchor OK for outdoor or wet locations?
The TS4414C is steel with a zinc plating, which is a dry interior or protected finish. Zinc plating gives limited corrosion protection and will rust in exterior, damp, or chemically exposed locations. For outdoor strut racks, rooftop equipment, or wash-down areas, specify a stainless steel wedge anchor in the same 1/2 x 4-1/4 size instead.
3) How many anchors come in a box of Metallics TS4414C?
100 pieces per box, supplied as a box pack. Each anchor is a 1/2 x 4-1/4 inch steel wedge anchor with a zinc finish, and nut and washer come assembled on the stud as standard for this anchor type.
4) How do I set a Metallics TS4414C wedge anchor correctly?
Drill the 1/2 inch hole through the fixture or to layout, blow or vacuum it clean, then drive the anchor through the fixture until the washer is against the surface and tighten the nut. Tightening pulls the cone up into the expansion clip and locks it. Wedge anchors are single-use, so the hole cannot be relocated once set, and an anchor that has been backed out should be replaced rather than reset.
5) What is this 1/2 inch wedge anchor typically used for on an electrical job?
It is the standard concrete fastener for heavier electrical work: unistrut and trapeze hangers, transformer and panel mounting, generator and rooftop curb bases, cable tray supports, and equipment feet anchored into a slab or deck. The 4-1/4 inch length suits mounting through a thicker base plate or channel where you still need deep embedment in the concrete.
6) What is the exact manufacturer part number for the Metallics 1/2 x 4-1/4 zinc wedge anchor?
Metallics part number TS4414C, a 1/2 x 4-1/4 inch steel zinc wedge anchor supplied 100 to a box. One part number covers the item, so there are no finish or length options to specify when ordering.
