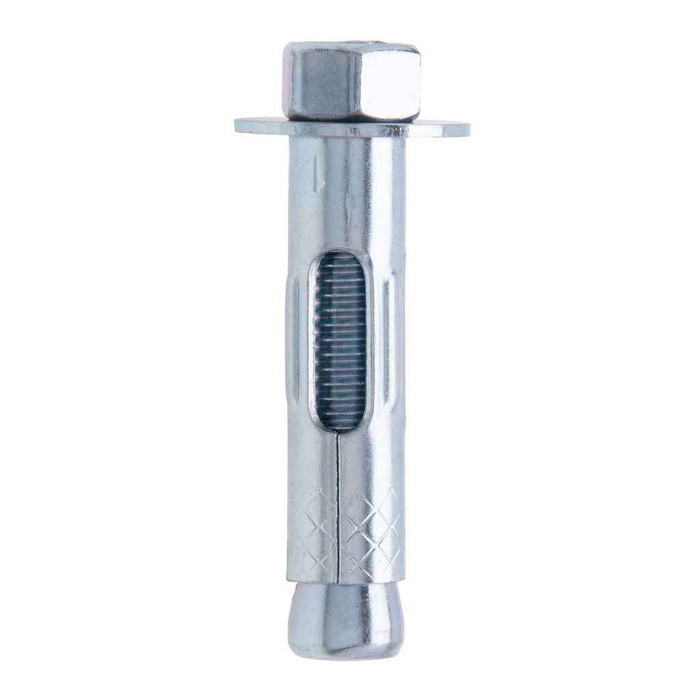

Anchors 1/2 X 4 Slv Ancr &Nt St-zn (Jar 25)
Manufacturer Resources
Product Specs
- Division:
- Electrical H1
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
- Product Subgroup:
- Anchors
Metallics J5040 – Frequently Asked Questions
1) What size hole do I drill for a 1/2 inch sleeve anchor like the Metallics J5040?
Drill a 1/2 inch hole with a carbide bit, matching the anchor diameter. A sleeve anchor is set through the fixture into a hole the same nominal size as the bolt, then the nut is tightened to expand the sleeve against the hole wall. Drill deeper than the embedment you need so drill dust does not bottom the anchor out, and blow the hole clear before setting.
2) Will the Metallics J5040 anchor work through a thick base plate or strut channel?
Yes, the 4 inch length is what you buy when material has to be clamped. A sleeve anchor's usable length is the 4 inches minus whatever thickness of fixture it passes through, so thicker plate or a stacked strut assembly eats into embedment. If your fixture is thin, a shorter 1/2 inch sleeve anchor gets you the same hold with less drilling.
3) Is the nut and washer included with the Metallics J5040, or do I order hardware separately?

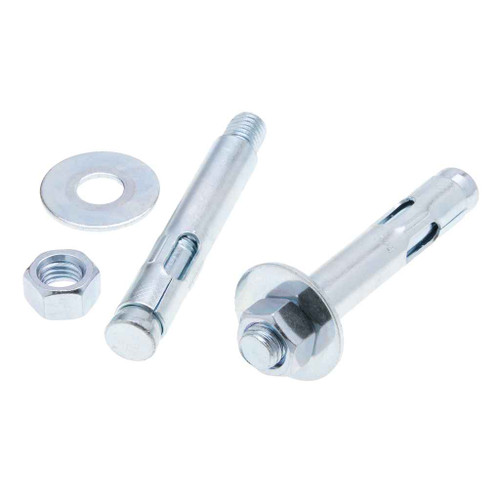

The nut ships on the anchor, so nothing extra is needed to set it. Each piece is a complete assembly: threaded stud, expansion sleeve, and nut. You supply only the carbide bit and a wrench.
4) Are Metallics J5040 sleeve anchors okay for outdoor or damp locations?
They are zinc plated steel, which is a dry to lightly damp interior finish. Zinc plating gives limited corrosion protection, so for exterior exposure, wet locations, or treated lumber contact, use a stainless or hot dip galvanized anchor instead.
5) Can I use a sleeve anchor in hollow block or drywall instead of a wedge anchor?
A 1/2 x 4 sleeve anchor like the J5040 expands along a length of sleeve, so it tolerates hollow block and brick better than a wedge anchor, which needs solid concrete to grip. It is not a drywall or hollow wall fastener. For hollow gypsum wall use a toggle; for solid poured concrete where maximum pullout matters, a wedge anchor is the tighter choice.
6) How do Metallics J5040 anchors come packaged for jobsite use?
They ship in a jar rather than a loose box, which keeps the anchors and nuts together on a gang box shelf or truck bin. It is the format MRO and electrical stockrooms use for repeat-consumption fasteners.
7) What is the Metallics part number for the 1/2 by 4 inch sleeve anchor?
Order Metallics J5040. That designation covers the 1/2 inch by 4 inch zinc plated steel sleeve anchor with nut, and it is the number to quote when matching an existing spec or reordering the same anchor.
