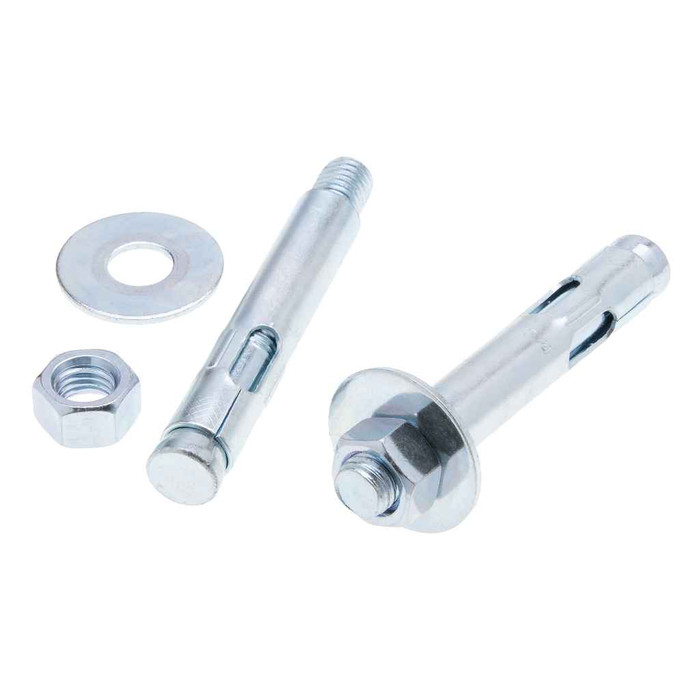

Anchors 5/8 X 2-1/4 Slv Ancr &Nt St-zn (Jar 25)
Manufacturer Resources
Product Specs
- Division:
- Electrical H1
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
- Product Subgroup:
- Anchors
Metallics J6222 – Frequently Asked Questions
1) Is 2-1/4 inches long enough for my fixture thickness?
The 2-1/4 inch overall length has to cover both the embedment in the concrete and the thickness of whatever you are fastening, plus the nut. On a 5/8 x 2-1/4 anchor that leaves only a thin fixture, roughly strut or a bracket, not a thick base plate. If you are clamping something thicker, step up to a longer sleeve anchor in the same 5/8 diameter so you keep enough of the sleeve in the hole.
2) How many anchors come in a jar of Metallics J6222?
25 pieces per jar. The J6222 ships as a jar pack, which is the usual format for keeping one size on the truck or on a shop shelf without loose hardware mixing.
3) Does the J6222 sleeve anchor include the nut, or do I buy that separately?
The nut is included. The J6222 is supplied as a sleeve anchor and nut assembly, so nothing else is needed on the fastener side beyond a washer if your fixture calls for one.
4) Can I use the Metallics J6222 in concrete block and brick, not just poured concrete?
Sleeve anchors like the J6222 are the type contractors reach for when the base material is hollow block or brick as well as solid concrete, because the expanding sleeve spreads load over the length of the hole rather than gripping one point. For 5/8 inch anchors in masonry, drill the hole deeper than the anchor so debris has somewhere to go, and set the nut against the fixture rather than over-torquing it.
5) Is the zinc finish on the J6222 anchor suitable for outdoor or wet locations?
The J6222 is zinc plated steel, which is a dry to occasionally damp interior finish. It is fine for strut, conduit racks, equipment bases and interior wall mounting. For permanently wet, exterior exposed or coastal work, specify a stainless or hot dip galvanized anchor instead, because zinc plating is a thin sacrificial coating and will corrode in standing moisture.
6) What is the J6222 anchor typically used for on electrical work?
It is an electrical fastener, part of the anchor line, and a 5/8 inch sleeve anchor at that size is used for the heavier attachments on a job: strut channel and trapeze supports, transformer and panel frames, equipment pads, and large box or enclosure mounting into concrete or masonry. Lighter conduit straps and small boxes do not need a 5/8 anchor.
7) Do I order the Metallics J6222 by the piece or by the jar?
By the jar. The part number J6222 is the 25 piece jar of 5/8 x 2-1/4 zinc sleeve anchors with nuts, so quantity one is 25 anchors. Use that number when matching a submittal or a repeat order so a crew does not end up with a different diameter.
