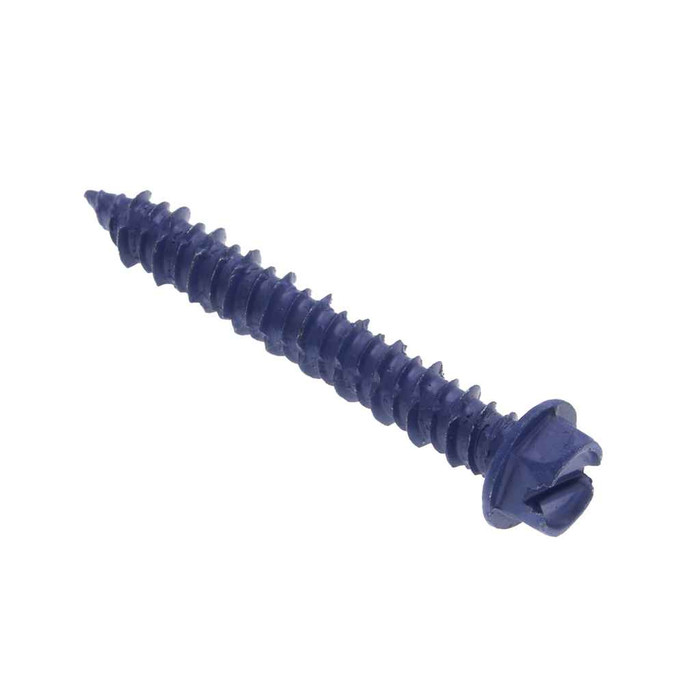

Anchors 1/4 X 5 Hwh 5/16Hd Sl Blu Conc St-zn (Jar 100)
Manufacturer Resources
Product Specs
- Division:
- Electrical H1
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
- Product Subgroup:
- Anchors
Metallics CSH70F – Frequently Asked Questions
1) Do I need an anchor shield or plastic plug to install the CSH70F in concrete?
No. This is a one piece concrete screw: drill the hole, then drive the screw straight into the concrete with a 5/16 inch hex driver. No sleeve, shield, or plastic plug is involved, and it can be backed out and removed if you need to reposition.
2) How many anchors come in a jar of Metallics CSH70F?
Each jar holds 100 of the 1/4 x 5 inch screw anchors, so one container covers a run of strut, conduit strap, or panel mounting without reordering mid-job.
3) What drill bit do I use for a 1/4 inch Metallics concrete screw?

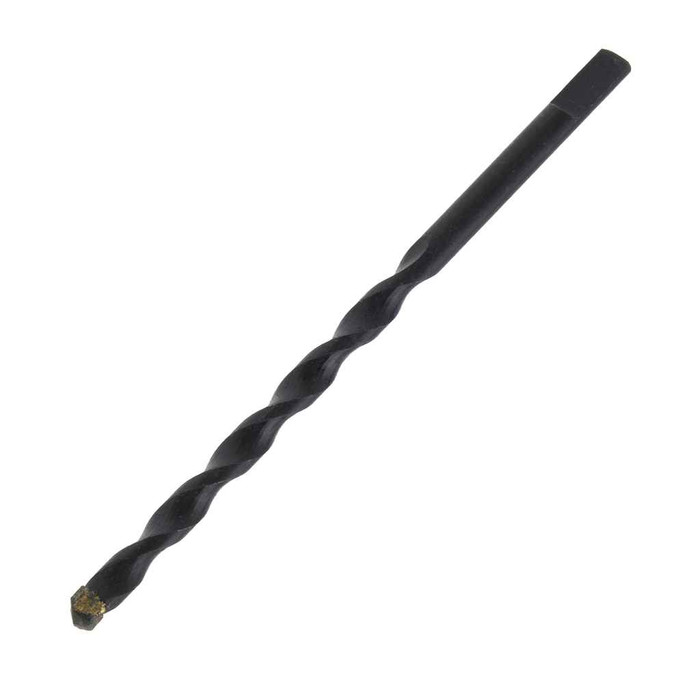

A 1/4 inch concrete screw like the CSH70F uses a 3/16 inch carbide hammer drill bit, and the hole should be drilled deeper than the embedment so dust has somewhere to go. The 5/16 inch hex head is driven with an impact driver or wrench, not a Phillips bit.
4) Can these be used in block and brick as well as poured concrete?
The CSH70F is a concrete screw, and that style of anchor is commonly used in poured concrete, solid grouted block, and solid brick. Hollow block cells and mortar joints are a different problem, since the thread has nothing to bite into there, so aim for the solid face of the unit.
5) What is the blue coating on these Metallics concrete screws for?
The blue finish on the CSH70F is a corrosion resistant coating over the zinc plated steel, and it is also how most crews spot a concrete screw at a glance on a messy jobsite. It is intended for interior and protected exterior use, not direct marine or constant wet exposure.
6) Is the hex washer head on the CSH70F going to need a separate washer?
No. The hex washer head gives you a built in bearing surface, so it seats directly on strut, angle, or wood without adding a flat washer. Driven with a 5/16 inch socket.
