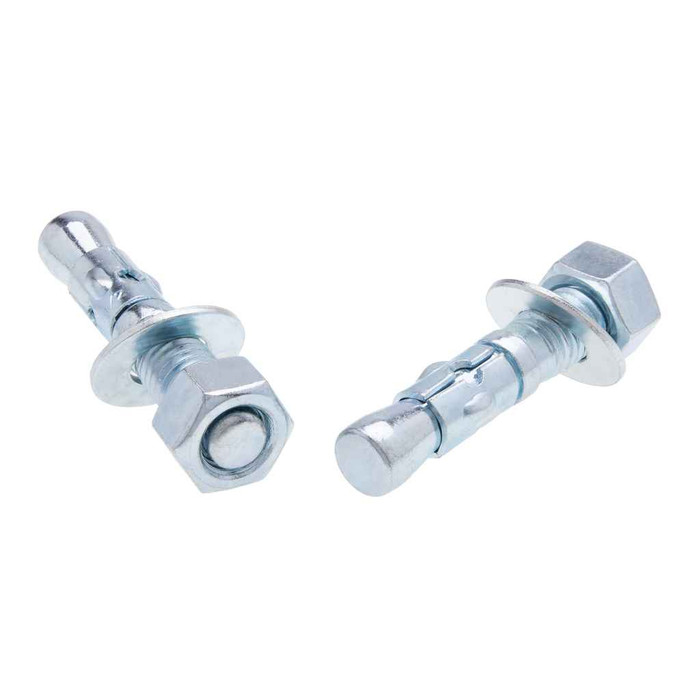

Anchors 3/4 X 6-1/4 Wedge Ancr St-zn U (Jar 10)
Manufacturer Resources
Product Specs
- Division:
- Electrical H1
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
- Product Subgroup:
- Anchors
Metallics JTS6614D – Frequently Asked Questions
1) What size hole do I drill for a Metallics JTS6614D 3/4 inch wedge anchor?
Wedge anchors drill to the same diameter as the anchor body, so the JTS6614D takes a 3/4 inch carbide bit in concrete. The anchor is 3/4 x 6-1/4 inches overall, so drill deep enough to take the embedment plus your fixture thickness, and clear the dust before setting. Set it by driving the anchor through the fixture hole until the nut and washer bear, then torque the nut to expand the clip.
2) Can I use the Metallics JTS6614D wedge anchor in block or brick instead of poured concrete?
No. The JTS6614D is a wedge anchor, and wedge anchors are for solid poured concrete only. Hollow block, brick, mortar joints, and grout will not hold the expanding clip and can blow out the wall. For hollow masonry use a sleeve anchor or a toggle rated for hollow base material instead.
3) How many anchors come in a jar of Metallics JTS6614D?
Ten anchors per jar. The pack type is a jar, so you are buying the 3/4 x 6-1/4 wedge anchors in a 10-count container rather than loose or bulk boxed. Each anchor ships with its nut and washer, which is standard on a wedge anchor.
4) Is the Metallics JTS6614D anchor zinc plated or stainless?
Steel with zinc plating, not stainless. That makes it a dry interior or protected-location anchor: mounting strut, transformers, panel backing, pipe hangers, and machine bases on a concrete floor or deck. For a wet, coastal, or chemically exposed location, specify a stainless wedge anchor instead of the zinc-plated one.
5) Why is the 6-1/4 inch length needed on a 3/4 inch wedge anchor?
The extra length is there to cover thick fixtures. On a wedge anchor, the usable grip equals the overall length minus the embedment you need in the concrete, so a 3/4 x 6-1/4 inch anchor is for mounting thick base plates, heavy strut channel, shims, or grout beds where a short anchor would not leave enough thread above the surface for the nut and washer. If your fixture is thin, a shorter 3/4 inch anchor avoids excess protruding thread.
6) Can a wedge anchor like the JTS6614D be removed or reused later?
No. Once the nut is torqued the clip expands permanently against the hole wall, so the JTS6614D is a one-time set. You can back off the nut and remove the fixture, but the anchor body stays in the concrete. If the fixture has to come off and go back repeatedly, use a threaded insert or a drop-in anchor with a removable bolt instead.
