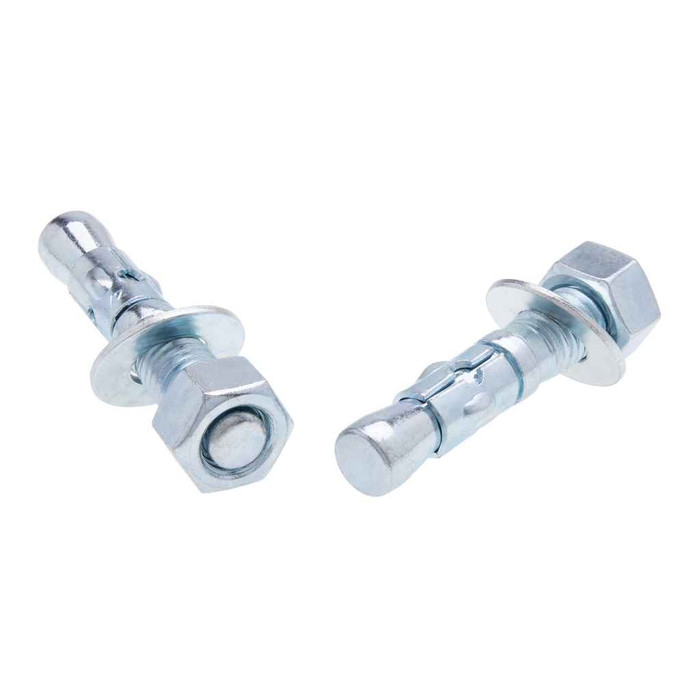

Anchors 5/8 x 7 Wdg SS (Box 10)
Manufacturer Resources
Product Specs
- Division:
- Electrical H1
- Pack Type:
- Box
- Product Group:
- Fasteners
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
- Product Subgroup:
- Anchors
Metallics TS507SS – Frequently Asked Questions
1) What drill bit do I need for a 5/8 inch wedge anchor?
A 5/8 inch carbide-tipped masonry bit. Wedge anchors are drilled with a hole the same nominal diameter as the anchor, so the 5/8 inch TS507SS goes into a 5/8 inch hole in solid concrete, drilled deeper than the embedment so dust has somewhere to go.
2) Will a wedge anchor work in block or brick, or only poured concrete?
Wedge anchors like the 5/8 x 7 TS507SS are for solid, poured concrete. Hollow CMU, brick, and grout-filled block are not the base material for a wedge anchor; in those you want a sleeve anchor or a screen-tube and adhesive system instead. In concrete, the anchor works by the expanding clip wedging against the hole wall, so the base material has to be solid and uncracked at the hole.
3) Can I use a stainless wedge anchor outdoors or in a wet area?
Yes. The TS507SS is stainless steel, which is the version to use for exterior mounting, wash-down areas, pool decks, coastal exposure, and anywhere a zinc-plated carbon steel anchor would rust and stain the concrete. Pair it with stainless or compatible hardware to avoid galvanic issues.
4) Is a 7 inch anchor overkill for mounting equipment, or do I need that length?
Length is chosen by the thickness of what you are fastening plus required embedment. A 7 inch 5/8 anchor is the one you reach for when you are going through a thick base plate, grout bed, or shim stack and still need deep embedment, for example strut racks, machinery bases, bollards, or structural standoffs. If you are only fastening a thin plate directly to the slab, a shorter 5/8 anchor leaves less stud sticking up and still gives the same diameter capacity.
5) Is the TS507SS a single anchor or a pack, and does it come with nuts and washers?
It is sold as a box of 10 anchors under part number TS507SS. Wedge anchors of this type come as a complete assembly, threaded stud with expansion clip, nut, and washer, ready to drive once the hole is drilled. Nothing else ships with it, so the hammer drill and 5/8 inch carbide bit are on you.
6) How do I install the Metallics 5/8 inch wedge anchor correctly?
Drill the 5/8 inch hole to depth, clean the dust out, then drive the anchor through the fixture until the expansion clip is below the surface of the concrete and fully in the hole. Tighten the nut to set the wedge. Because the clip expands against the hole wall, the hole must be drilled with a hammer drill and a 5/8 inch carbide bit, not oversized, and the anchor cannot be reused once it has been set and removed.
