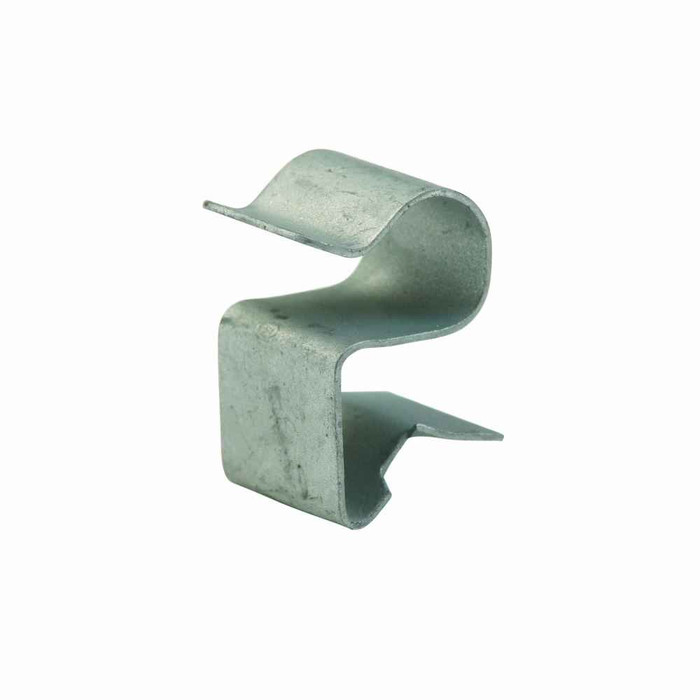

B-Line Eaton series cable supp...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$259.13
B-Line Eaton series cable support fasteners, Conduit and cable, Flange, 0.05lbs, Flexible conduit/cable fasteners, .13" Min, .25" Max mount size, .5"

B-Line Eaton series cable support fasteners, Conduit and cable, Flange, 0.05lbs, Flexible conduit/cable fasteners, .13" Min, .25" Max mount size, .5"

(No reviews yet) Write a Review

Model: BXM-1519
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$259.13
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series cable support fasteners, Conduit and cable, Flange, 0.05lbs, Flexible conduit/cable fasteners, .13" Min, .25" Max mount size, .5" Min, 0.718" Max cable diameter, 200 lbs load capacity, Zinc plated

Manufacturer Resources

Product Specs

Application:
Secures cable along flanges
Cable Diameter Max:
.718 in
Cable Diameter Min:
.5 in
Certifications:
CE
Mounting Dimensions Max:
0.25
Mounting Dimensions Min:
0.13
Mounting Method:
Flange
Product Category:
Conduit and cable
Product Height:
1 in
Product Length Depth:
1 in
Product Weight:
.015 lb
Product Width:
1 in
Department:
Electrical
Product Group:
Conduit & Fittings
Product Subgroup:
Conduit Accessories
Product Type:
Flexible conduit/cable fasteners
Product Details:
Flexible conduit/cable fasteners

B-LINE BXM-1519 – Frequently Asked Questions

1) How does this B-Line fastener attach - does it need a drilled hole or an anchor?
No drilling, no anchors. The BXM-1519 is a flange-mount clip: it clips onto the edge of a beam flange, strut, or similar steel edge and holds the cable against it. That makes it a tool-light install for overhead runs where you don't want to drill structural steel.
2) What flange thickness will the BXM-1519 clip fit over?
It's sized for flange edges from 0.13 inch to 0.25 inch thick. If the steel you're clipping to is thicker than a quarter inch, this fastener won't spring over it and you need a different mount size in the series.
3) How much weight can one of these flange cable clips carry?
Rated at 200 lbs load capacity. That's the fastener rating, not a licence to hang the whole bundle off one clip - space them so the cable weight between supports stays well inside it and the run doesn't sag.
4) Is the B-Line BXM-1519 clip corrosion protected for damp or exterior-adjacent areas?
The fastener is zinc plated, which suits dry and normally damp indoor environments like mechanical rooms, parking structures, and plant ceilings. For continuous wet, coastal, or chemically aggressive exposure, a stainless or heavier-coated support is the better call.
5) Does the BXM-1519 carry any listing or certification marking?
It carries CE marking. That's the certification held on record for this Eaton B-Line flange fastener.
