Eaton B-Line series hanging system, KwikWire wire rope, Toggle termination, 1/16" wire max, 18" wire length
Manufacturer Resources
Product Specs
- Certifications:
- cULus Listed
- Product Diameter:
- .06 in
- Product Height:
- 18 in
- Product Weight:
- .32 lb
- Wire Diameter Max:
- .062 in
- Wire Length:
- 18 in
- Department:
- Electrical
- Product Type:
- Toggle termination
- Product Model:
- KwikWire wire rope
- Product Details:
- Toggle termination
B-LINE BKT-063-18 – Frequently Asked Questions
1) How long is the wire on the KwikWire BKT-063-18 hanger?

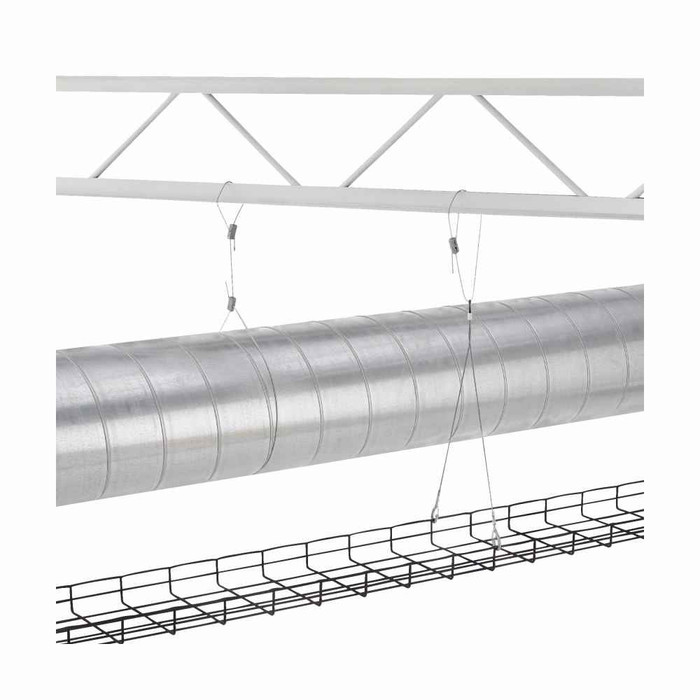

18 inches of wire rope. That is a short drop, suited to hanging a fixture, cable tray, or pipe close to the deck. For a longer suspension you need a KwikWire assembly with a longer cable length, since the wire on this one is fixed at 18 inches.
2) Is the B-Line KwikWire toggle hanger listed for electrical work?
It's cULus Listed, which covers both US and Canadian requirements. That matters on jobs where an inspector wants a listed support method for suspended lighting, cable tray, or raceway rather than field-improvised wire.
3) What does the toggle end on the BKT-063-18 do, and what kind of ceiling does it anchor to?
The BKT-063-18 terminates in a toggle, so the anchor end folds to pass through a drilled hole and then swings open behind the substrate to bear on the back face. That is the fitting you use on hollow structures, such as a deck or panel you can drill through but cannot reach behind. If your structure is solid, or you are hanging from beam flange or threaded rod, a different KwikWire termination type is the right call.
