B-Line Eaton series hanging system, KwikWire wire rope, Toggle termination, 1/16" wire max, 240" wire length

The toggle is the anchor end of the assembly. On this BKT-063-240K kit the termination is a toggle, meaning the end fitting folds to pass through a drilled hole or an opening in the structure above, then turns crosswise and bears on the far side. It is the fitting you use when you can reach only one side of the deck or panel, rather than a hook, eye, or loop that needs an existing attachment point.

Yes, the KwikWire hanging assembly is cULus Listed, so it carries both US and Canadian listing. For an inspector or a spec that calls for listed suspension hardware on lighting and electrical support, that is the credential on record for this item.

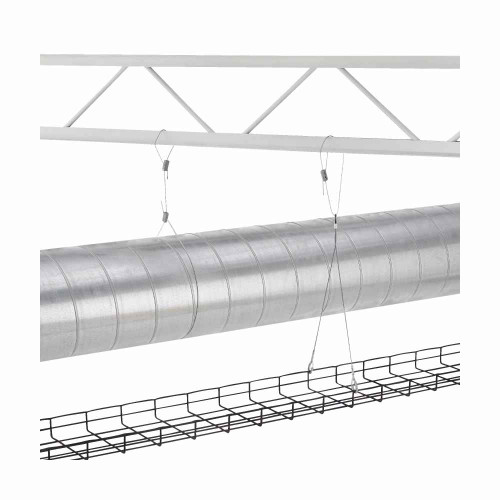

That is what it is built for. KwikWire is an Eaton B-Line suspension system for electrical work, using 1/16 inch aircraft-style wire rope in place of all-thread. The advantage on the job is speed: you set the toggle in the structure, drop the cable, and pull the fixture up to height at the gripper instead of cutting and threading rod to length. With 240 inches of wire on this kit you can cover long drops from a high deck.

Each BKT-063-240K is a single wire assembly: one toggle, one length of 240 inch cable, one gripper. A fixture suspended at two points needs two, a four-point troffer or tray section needs four. Order by suspension point, not by fixture.

No. The end fitting is the difference, and it decides where you can attach. This one is the toggle version, for passing through a hole in deck or panel and bearing on the back side. If your attachment point is an existing eye, beam clamp, or hanger, you want a hook or loop termination instead, in the same 1/16 inch wire size so the gripper matches.

2.56 lb per assembly. Twenty feet of wire plus the toggle and gripper hardware adds up quickly on a large order, so factor that if you are pricing freight on a few hundred points.
