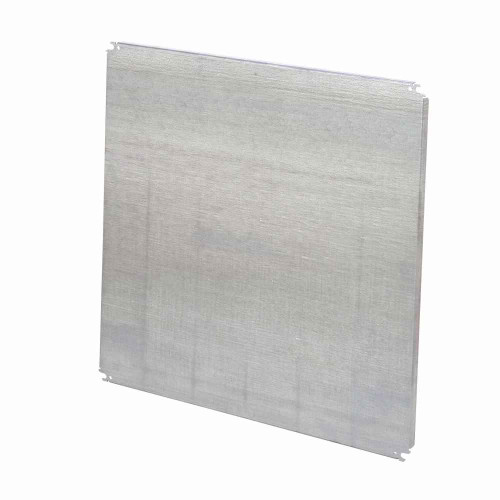

You may also like
Eaton B-Line series mounting panels, Used with Type 4, 4x, and 12 single door enclosures, Includes all mounting hardware, Swing panel mounting kit
Manufacturer Resources
Product Specs
- Certifications:
- UL Listed
- Product Height:
- 4.125 in
- Product Length Depth:
- 8.125 in
- Product Weight:
- 2.4 lb
- Product Width:
- 4.25 in
- Special Features:
- Used with Type 4, 4x, and 12 single door enclosures
- Department:
- Electrical
B-LINE NSPK – Frequently Asked Questions
1) What is the Eaton B-Line NSPK swing panel mounting kit used for?
The NSPK is a swing panel mounting kit for Eaton B-Line series mounting panels, used with Type 4, 4X, and 12 single door enclosures. It lets a panel swing out of the enclosure instead of sitting fixed on the back wall, so you can get behind the components for wiring and service. All mounting hardware needed to attach the kit comes with it.
2) Will the NSPK kit work on a double door electrical enclosure?
No. The NSPK swing panel mounting kit is specified for single door enclosures only, in Type 4, 4X, and 12 ratings. On a two-door enclosure the center post and door swing geometry are different, so you need a kit made for that configuration.
3) Do I need to buy screws or brackets separately for the B-Line NSPK swing panel kit?
No extra fasteners are needed. The NSPK kit ships with all mounting hardware. What it does not include is the swing panel itself, which is ordered separately to suit the enclosure size.
4) Is the B-Line NSPK mounting kit UL Listed?
Yes, the NSPK swing panel mounting kit is UL Listed, which matters if you are building a control panel that has to hold its enclosure rating on a job inspection.
5) Can I use this swing panel kit in a washdown or outdoor enclosure?
Yes, within limits. The NSPK is intended for Type 4, 4X, and 12 single door enclosures. Type 4 and 4X cover hosedown and corrosion-resistant outdoor duty, and Type 12 covers indoor dust and drip. Because the kit mounts inside the box and does not breach the enclosure wall, the enclosure keeps its rating.
6) How much space does the B-Line NSPK kit take up inside the enclosure?
The kit measures 4.125 in height, 4.25 in width and 8.125 in length/depth, and it weighs 2.4 lb. Allow for that hardware footprint along the hinge side of the enclosure when you lay out components, and leave clearance for the panel to swing clear of anything mounted on the back wall.
7) What is the exact part number to order for the B-Line swing panel mounting kit?
Order Eaton B-Line part number NSPK. That is the single catalog number for the swing panel mounting kit, and it is the number to give a distributor so you get the hardware set rather than a fixed back panel.
