B-Line Eaton series strut fitt...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$44,419.77

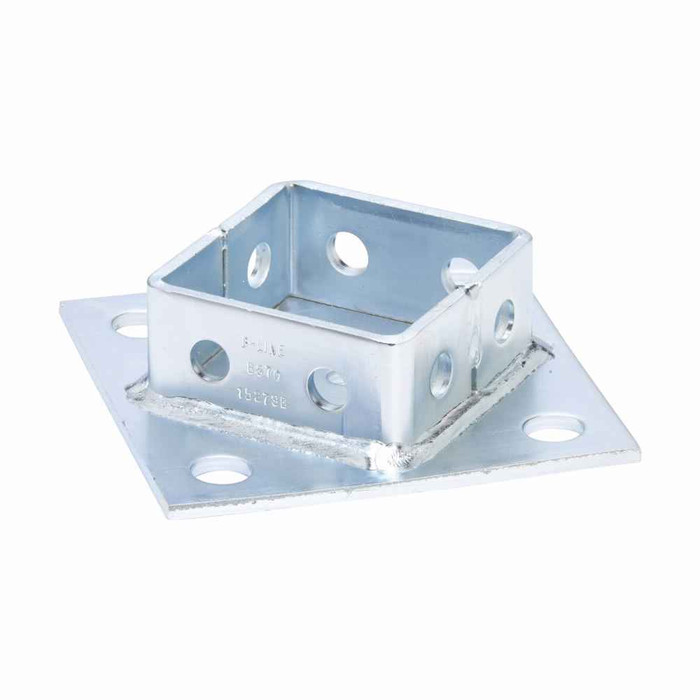

B-Line Eaton series strut fittings and accessories, 6" Height, 6" Length, 1.62" Width, 3.97lbs, Steel, Post base for four channel combinations, Electr

B-Line Eaton series strut fittings and accessories, 6" Height, 6" Length, 1.62" Width, 3.97lbs, Steel, Post base for four channel combinations, Electr

(No reviews yet) Write a Review

Model: B570ZN
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$44,419.77
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton B-Line series strut fittings and accessories, 6" Height, 6" Length, 1.62" Width, 3.97lbs, Steel, Post base for four channel combinations, Electro-plated zinc

Manufacturer Resources

Product Specs

Certifications:
Not Applicable
Product Height:
6 in
Product Length Depth:
6 in
Product Weight:
3.97 lb
Product Width:
1.62 in
Department:
Electrical
Product Group:
Mounting Hardware
Product Subgroup:
Channels
Product Type:
Post base for four channel combinations
Product Finish:
Electro-plated
Product Details:
Post base for four channel combinations
Product Material:
Steel
Product Length:
6 in

B-LINE B570ZN – Frequently Asked Questions

1) What is the Eaton B-Line B570ZN used for?
The B570ZN is a strut post base sized for four-channel combinations, meaning it anchors a built-up post made of four strut channels to a floor or slab. It is the base plate at the bottom of the post, not the channel itself.
2) Will the B-Line B570ZN post base work for a single piece of strut channel?
No. The B570ZN is dimensioned for a four-channel post combination, so a single run of strut will not sit correctly on it. For a single channel you want a single-channel post base instead.
3) What are the dimensions and weight of the B-Line B570ZN post base?
It measures 6 inches height, 6 inches length/depth, and 1.62 inches width, and weighs 3.97 lb. Use the 6 x 6 footprint when you lay out anchor locations on the slab, and the 3.97 lb figure when you are counting a pallet of them for a shipment or a bid.
4) Is the B570ZN strut post base suitable for outdoor or wet locations?
It is steel with an electro-plated zinc finish, which is a dry indoor-duty coating. For exterior, rooftop, or washdown work, specify a hot-dip galvanized or stainless post base rather than the zinc-plated version.
5) Does the B-Line B570ZN post base come with anchors or bolts?
The B570ZN is supplied as the steel base fitting only. Concrete anchors, the channel nuts, and the bolts that tie the strut to the base are separate items you order alongside it, sized to your channel series and slab.
6) What is the exact part number to order this B-Line four-channel post base?
Order Eaton B-Line B570ZN. The ZN suffix is the electro-plated zinc finish, so if a drawing calls for a different coating on the same base you will be specifying a different suffix.
7) Does the B570ZN carry a UL listing or other certification?
No certification applies to this fitting. It is a mechanical support component, so ratings on the electrical equipment it supports are what your inspector will look at, not the base.
