Spec Sheet
Product Specs
- Action:
- Momentary
- Actuator:
- Extended, Dual button
- Bezel:
- Silver
- Button Color:
- Top Green, Bottom Red
- Environmental Rating:
- IP66, NEMA 4X, 13
- Etching Code:
- GB1, GB2
- Illumination:
- Illuminated
- Inscription:
- Top START, Bottom STOP
- Notes:
- Includes contact block mounting adapter.
- Operating Cycles:
- Light 100,000 hours, Button 200,000 operations
- Series:
- M22
- Department:
- Electrical
- Product Type:
- Double Pushbutton with Center Light
- Product Size:
- 22.5 mm
- Product Length:
- 2.15 IN
- Product Details:
- Double Pushbutton with Center Light
- Product Height:
- .52 IN
- Product Weight:
- .995 LB
- Product Width:
- 1.17 IN
B-LINE M22-DDL-GR-GB1-GB0 – Frequently Asked Questions
1) Does the B-Line M22-DDL-GR-GB1-GB0 double pushbutton come with contact blocks?
No. The M22-DDL-GR-GB1-GB0 is the operator only, the actuator head with the green START and red STOP buttons and the center light. It does include a contact block mounting adapter, but you still have to order the contact blocks and the LED light element separately to make a working station.
2) What panel hole size does the M22 double pushbutton operator need?
It mounts in a standard 22.5 mm panel cutout, the common metric control station bore. The actuator body measures 2.15 by 1.17 by .52 inches, so allow for that footprint behind and around the hole when buttons are ganged in a row.
3) Can this M22 START/STOP pushbutton be used in a washdown or outdoor enclosure?
The M22 double pushbutton operator is rated IP66 and NEMA 4X, 13, so it stands up to hose-down washdown, dust, and corrosive or oily environments when installed in an enclosure of matching rating. NEMA 4X also covers corrosion resistance, which is what food processing and wastewater panels usually call for.
4) Do the buttons on this M22 operator latch or return when released?
Momentary action, both buttons. Press and the contacts change state, release and they return. If you need a maintained or twist-release stop, that is a different M22 actuator, not this one.

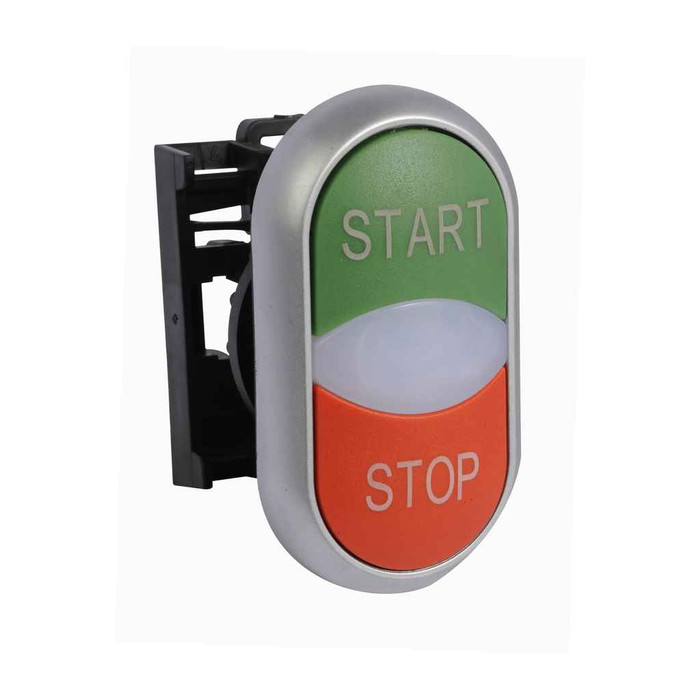

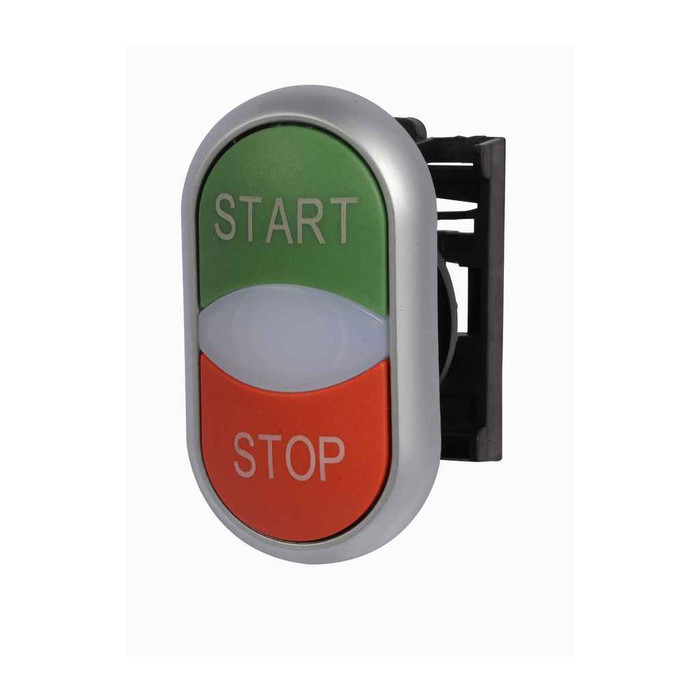

5) What does the center light on the M22-DDL-GR-GB1-GB0 do and is the lamp included?
It is an illuminated double pushbutton, with the indicator sitting between the top green START and bottom red STOP buttons, typically wired as a running or power-on indication. The light element itself is a separate M22 LED module ordered behind the operator.
6) How long will these M22 pushbuttons hold up in a high-cycle machine station?
The buttons are rated for 200,000 operations and the light for 100,000 hours. For a start/stop station cycled a few dozen times a shift, that is a long service life; for a station hit hundreds of times an hour, plan on it as a wear part.
7) Are the buttons on this M22 operator flush or raised?
Extended dual buttons, so they stand proud of the silver bezel and can be hit with a gloved hand. Extended actuators are easier to find by feel but also easier to bump, which matters if the station sits where operators brush past it.
8) Is the START/STOP legend printed or engraved on this M22 pushbutton?
The legend is laser etched, carried under etching codes GB1 and GB2, reading START on the top green button and STOP on the bottom red. Etched markings do not wear off the way printed labels do in a washdown area.
