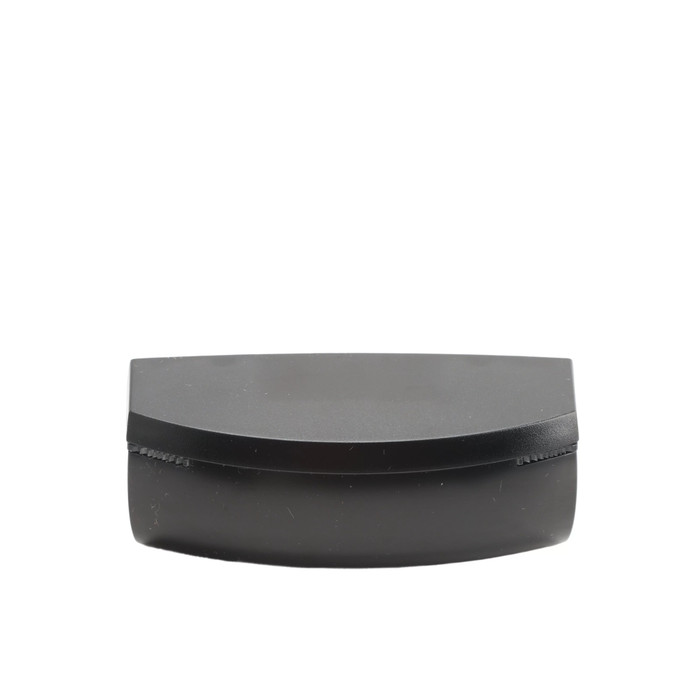

BEA 10EAGLE ARTEK Microwave Motion Detector with 7' to 10' Mounting Range

BEA 10EAGLE ARTEK Microwave Motion Detector with 7' to 10' Mounting Range

Advanced Radar Technology Motion Sensor for Automatic Door Systems

The BEA 10EAGLE ARTEK is a professional-grade microwave motion detector designed for all types of automatic doors with a 7' to 10' mounting range capability. This radar-based motion sensor features a slim and compact design that ensures discreet integration while delivering superior field performance with improved filters that reduce false detections and energy costs. The EAGLE ARTEK offers flexible parameters and simple push-button settings for easy installation and setup.

Professional Features & Benefits

• Mounting Range Flexibility: 7' to 10' mounting range accommodates various installation heights for optimal coverage in different applications.
• Advanced Radar Technology: Microwave detection provides reliable motion sensing with superior performance compared to traditional sensor technologies.
• False Detection Reduction: Improved filters help minimize false activations that lead to increased energy costs and unnecessary door operations.
• Adjustable Detection Field: Detection field shape can be adjusted without manually changing the antenna, providing installation flexibility.
• Compact Integration: Slim and compact design ensures discreet installation that blends seamlessly with architectural elements.
• Simple Configuration: Easy installation and setup with flexible parameters and intuitive push-button settings for quick commissioning.
• Versatile Installation Options: Variety of installation accessories available making the EAGLE ARTEK suitable for any environment.
• Commercial-Grade Reliability: Engineered for demanding commercial applications requiring consistent automatic door activation performance.

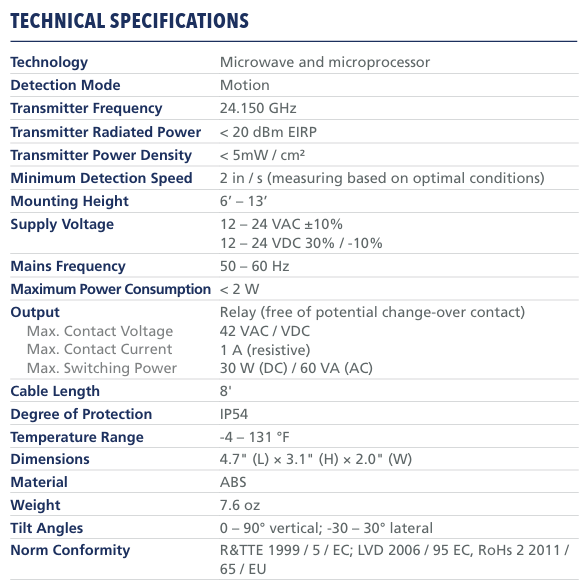

Technical Specifications

• Technology: Microwave Doppler Radar
• Detection Mode: Motion
• Transmitter Frequency: 24.150 GHz
• Transmitter Radiated Power: < 20 dBm EIRP
• Transmitter Power Density: < 5 mW / cm2
• Min. Detection Speed: 2 in / s (measuring based on optimal conditions)
• Mounting Height: Eagle: 72 in - 156 in (6 ft - 13 ft) | Eagle HM: 156 in - 198 in (13 ft - 16.5 ft)
• Supply Voltage: 12 - 24 VAC +/-10%; 12 - 24 VDC 30% / -10%
• Mains Frequency: 50 - 60 Hz
• Maximum Power Consumption: < 2 W
• Output: Relay (free of potential change-over contact)
• Max. Contact Current: 1 A (resistive)
• Max. Contact Voltage: 42 VAC / VDC
• Max. Switching Power: 30 W (DC) / 60 VA (AC)
• Cable Length: Eagle: 96 in (8 ft) | Eagle HM: 96 in (8 ft)
• Degree of Protection: IP54
• Tilt Angles: 0 deg. - 90 deg. vertical; -30 deg. - 30 deg. lateral
• Norm Conformance: R&TTE 1999/5/EC; EMC 2004/108/EC; LVD 2006/95/EC; RoHS 2 2011/65/EU

Installation & Operation

1. Verify electrical requirements match available power supply and confirm current capacity before proceeding with installation.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit at the appropriate height within the 7' to 10' mounting range ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings using the simple push-button interface and adjust detection field parameters per application requirements.
6. Restore power and test all functions including normal operation, motion detection sensitivity, and integration with automatic door systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

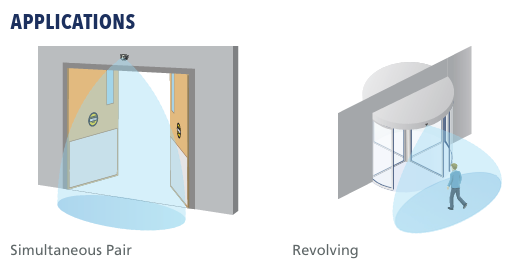

Professional Applications

• Commercial Building Automatic Door Systems
• Retail Store Entrance Automation
• Healthcare Facility Access Points
• Educational Institution Entry Systems
• Industrial Facility Personnel Access
• Multi-Tenant Residential Building Entrances
• Government and Municipal Building Access

Why Choose BEA Quality?

BEA motion detection products deliver professional-grade reliability with advanced microwave radar technology and microprocessor control for superior field performance. The EAGLE ARTEK series combines improved filtering technology with flexible installation options to reduce false detections and energy costs. Engineered for demanding commercial applications where dependable automatic door activation is essential.
