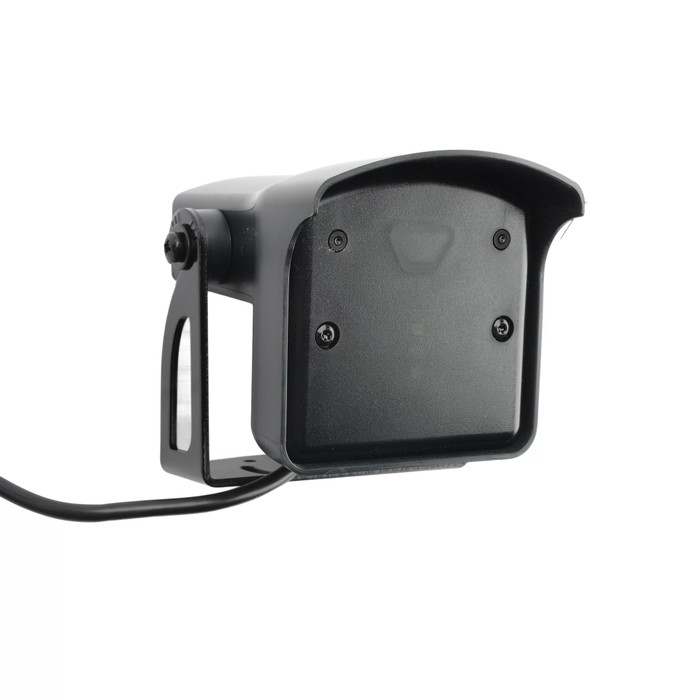

BEA 10FALCON FALCON Motion Sensor with Microwave Doppler Radar Technology for Industrial Applications

BEA 10FALCON FALCON Motion Sensor with Microwave Doppler Radar Technology for Industrial Applications

Premier Microwave Activation Solution for Industrial Doors and Gates

The BEA 10FALCON FALCON Motion Sensor delivers professional-grade motion detection using advanced microwave doppler radar technology for mounting heights from 11.5' to 23'. This industrial-grade sensor operates on 12 to 24V AC/DC power and includes 33' of cable for flexible installation. Housed in a NEMA 4 rated enclosure, the FALCON sensor is engineered to withstand harsh industrial environments while providing reliable motion detection for automatic doors, vehicle gates, and loading dock applications.

Professional Features & Benefits

• Flexible Mounting Height: Designed for 11.5' to 23' mounting heights to accommodate various industrial facility configurations and clearance requirements.
• Extended Cable Length: Includes 33' of cable for versatile installation positioning and reduced need for additional wiring runs.
• Dual Voltage Compatibility: 12 to 24V AC/DC operation provides flexibility for integration with existing power systems and control panels.
• Microwave Doppler Radar Technology: Advanced radar detection provides reliable motion sensing with multiple detection options for precise application tuning.
• NEMA 4 Rated Enclosure: Weather-resistant housing designed for harsh industrial environments including outdoor and exposed installations.
• Multiple Detection Options: Configurable detection patterns allow customization for specific application requirements and zone coverage.
• Industrial-Grade Construction: FALCON FAMILY design engineered specifically for demanding industrial applications including automatic doors, vehicle gates, and loading dock systems.

Technical Specifications

• Technology: Microwave Doppler Radar
• Radiated Frequency: 24.150 GHz
• Transmitter Radiated Power: < 20 dBm EIRP
• Radiated Power Density: < 5 mW / cm2
• Detection Mode: Motion
• Detection Zone (W x D): Falcon: 156 x 192 in (13 x 16 ft) @ 192 in | Falcon XL: 156 x 78 in (13 x 6.5 ft) @ 98.4 in | Falcon Wide: 360 x 132 in (30 x 11 ft) @ 252 in
• Tilt Angles: 0 deg. - 180 deg.
• Output: Relay (free of potential change-over contact)
• Max. Contact Voltage: 42 VAC / VDC
• Max. Contact Current: 1 A (resistive)
• Max. Switching Power: 30 W (DC); 60 VA (AC)
• Minimum Detection Speed: 2 in / s
• LEDs: Green: Value indication | Red: Detection state & parameter indication
• Mains Frequency: 50 - 60 Hz
• Supply Voltage: 12 - 24 VAC; +/-10% | 12 - 24 VDC; 30% / -10%
• Max Power Consumption: < 2 W
• Mounting Height: Falcon: 138 - 276 in (11.5 - 23 ft) | Falcon XL: 78 - 138 in (6.5 - 11.5 ft) | Falcon Wide: 138 - 252 in (11.5 - 21 ft)
• Dimensions: 3.75 in (W) x 4 in (H) x 5 in (D)
• Materials: ABS & Polycarbonate
• Temperature Range: -22 deg. F - 140 deg. F
• Degree of Protection: NEMA 4 / IP65
• Norm Conformance: EMC: 2004/108/EC; R&TTE: 1999/5/EC

Installation & Operation

1. Verify electrical requirements match available power supply. Confirm 12 to 24V AC/DC voltage and current capacity before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit at the specified height between 11.5' and 23' ensuring adequate clearance for detection zone coverage and future service requirements.
4. Route and connect the included 33' cable according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure detection options and sensitivity settings per application requirements and desired coverage area.
6. Restore power and test all functions including motion detection response, detection zone coverage, and integration with connected door or gate systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Automatic Industrial Door Systems
• Vehicle Gate and Barrier Control
• Loading Dock Safety Systems
• Warehouse Entry Detection
• Industrial Facility Access Points
• Vehicle Detection Systems
• Warning Indication Applications

Why Choose BEA Quality?

BEA FALCON FAMILY motion sensors deliver industrial-grade reliability with NEMA 4 rated construction designed for harsh environments. The microwave doppler radar technology provides consistent detection performance across the 11.5' to 23' mounting range with multiple detection options for application-specific tuning. Engineered for demanding industrial applications where dependable motion detection is essential for safety and operational efficiency.
