BEA 10FALCONW FALCON Wide Motion Sensor with Microwave Doppler Radar Technology

BEA 10FALCONW FALCON Wide Motion Sensor with Microwave Doppler Radar Technology

Industrial-Grade Motion Detection for Wide Area Coverage

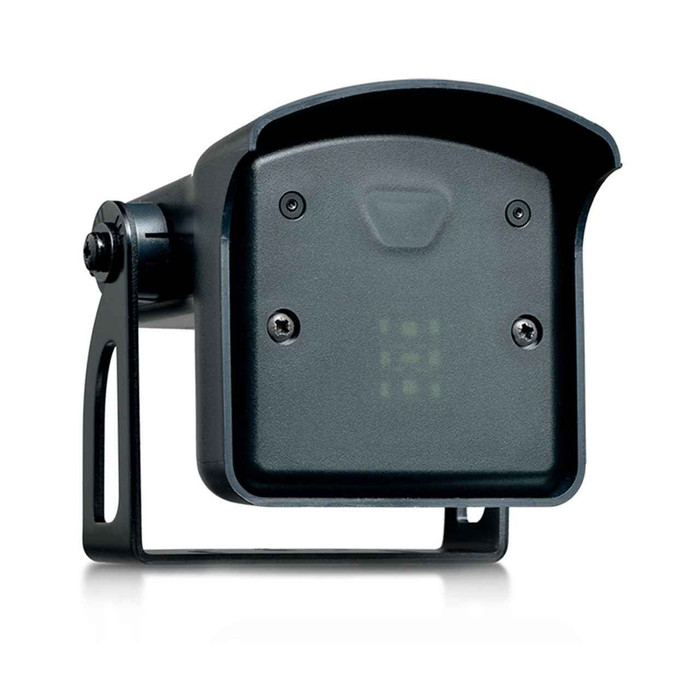

The BEA 10FALCONW FALCON Wide Motion Sensor delivers professional microwave activation for industrial doors, gates, and warning applications. Featuring mounting heights from 11.5' to 21', this radar-based sensor provides wide detection area coverage with bidirectional, unidirectional approach, and unidirectional depart detection options. The unit includes a 30' cable and remote controlled adjustments with tilt angles from 0 to 180 degrees for precise positioning in demanding commercial environments.

Professional Features & Benefits

• Flexible Mounting Height: 11.5' to 21' mounting range accommodates various industrial installation requirements and ceiling configurations.
• Wide Detection Coverage: FALCON WIDE design provides extended detection area for large openings and vehicle access points.
• Microwave Doppler Radar Technology: Advanced radar detection ensures reliable motion sensing in harsh industrial environments with superior performance over infrared alternatives.
• Multiple Detection Modes: Bidirectional, unidirectional approach, and unidirectional depart options provide application-specific configuration flexibility.
• Remote Controlled Adjustments: Convenient remote adjustment capability eliminates the need for ladder access during setup and fine-tuning.
• Adjustable Tilt Angle: 0 to 180 degree tilt range allows precise detection zone positioning for optimal coverage patterns.
• NEMA 4 Rated Enclosure: Weather-resistant housing designed for harsh indoor and outdoor industrial environments.
• Extended Cable Length: 30' cable provides installation flexibility for remote mounting locations and control panel connections.

Technical Specifications

• Technology: Microwave Doppler Radar
• Radiated Frequency: 24.150 GHz
• Transmitter Radiated Power: < 20 dBm EIRP
• Radiated Power Density: < 5 mW / cm2
• Detection Mode: Motion
• Detection Zone (W x D): Falcon: 156 x 192 in (13 x 16 ft) @ 192 in | Falcon XL: 156 x 78 in (13 x 6.5 ft) @ 98.4 in | Falcon Wide: 360 x 132 in (30 x 11 ft) @ 252 in
• Tilt Angles: 0 deg. - 180 deg.
• Output: Relay (free of potential change-over contact)
• Max. Contact Voltage: 42 VAC / VDC
• Max. Contact Current: 1 A (resistive)
• Max. Switching Power: 30 W (DC); 60 VA (AC)
• Minimum Detection Speed: 2 in / s
• LEDs: Green: Value indication | Red: Detection state & parameter indication
• Mains Frequency: 50 - 60 Hz
• Supply Voltage: 12 - 24 VAC; +/-10% | 12 - 24 VDC; 30% / -10%
• Max Power Consumption: < 2 W
• Mounting Height: Falcon: 138 - 276 in (11.5 - 23 ft) | Falcon XL: 78 - 138 in (6.5 - 11.5 ft) | Falcon Wide: 138 - 252 in (11.5 - 21 ft)
• Dimensions: 3.75 in (W) x 4 in (H) x 5 in (D)
• Materials: ABS & Polycarbonate
• Temperature Range: -22 deg. F - 140 deg. F
• Degree of Protection: NEMA 4 / IP65
• Norm Conformance: EMC: 2004/108/EC; R&TTE: 1999/5/EC

Installation & Operation

1. Verify electrical requirements match available power supply and confirm mounting height falls within the 11.5' to 21' specification range.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit at the specified height ensuring adequate clearance for the 30' cable routing and future service access.
4. Route and connect the 30' cable according to manufacturer wiring diagrams using appropriate connections for the industrial application.
5. Configure detection mode (bidirectional, unidirectional approach, or unidirectional depart) and adjust tilt angle from 0 to 180 degrees per application requirements.
6. Restore power and test all detection functions using the remote controlled adjustment features to optimize coverage patterns.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Automatic Industrial Door Activation
• Vehicle Gate and Barrier Control Systems
• Loading Dock Safety and Detection
• Warehouse and Distribution Center Access
• Industrial Facility Vehicle Detection
• Commercial Building Perimeter Monitoring
• Warning Indication Systems

Why Choose BEA Quality?

BEA FALCON FAMILY sensors deliver industrial-grade reliability with NEMA 4 rated construction designed for harsh indoor and outdoor environments. The microwave doppler radar technology provides superior motion detection performance compared to infrared alternatives, ensuring dependable operation in demanding commercial and industrial applications where precise motion sensing is critical.
