BEA 10FALCONXL FALCON XL Motion Sensor with Microwave Doppler Radar Technology for Industrial Applications

Premier Microwave Activation Solution for Industrial Doors and Gates

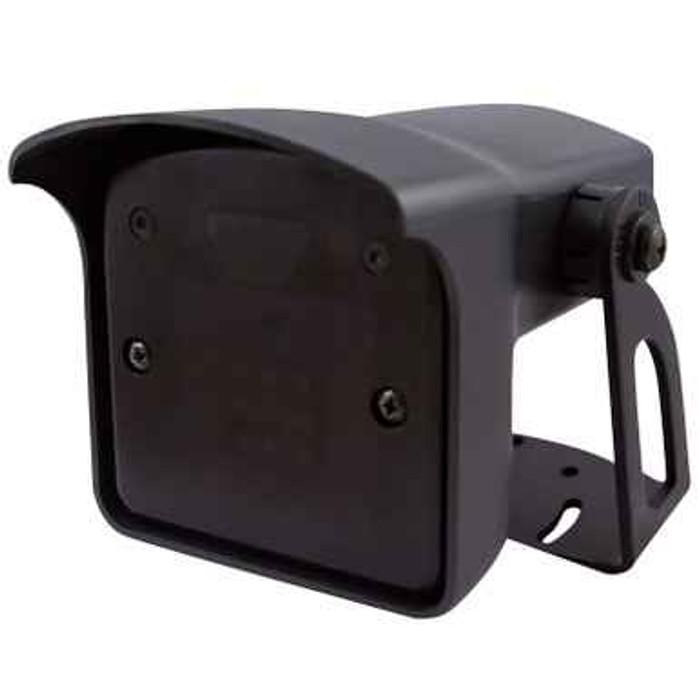

The BEA 10FALCONXL FALCON XL Motion Sensor delivers professional-grade motion detection using advanced microwave doppler radar technology for mounting heights from 6.5' to 11.5'. This industrial-grade sensor operates on 12 to 24 V AC/DC power and includes 33' of cable for flexible installation. Housed in a NEMA 4 rated enclosure, the FALCON XL is engineered to withstand harsh environments while providing reliable motion detection for automatic industrial doors, vehicle gates, and loading dock applications.

Professional Features & Benefits

  • Flexible Mounting Height: Designed for 6.5' to 11.5' mounting heights to accommodate various industrial installation requirements.
  • Extended Cable Length: Includes 33' of cable for convenient wiring and flexible positioning in large industrial spaces.
  • Dual Voltage Compatibility: 12 to 24 V AC/DC operation provides versatility for integration with existing power systems.
  • Microwave Doppler Radar Technology: Advanced radar detection provides reliable motion sensing in challenging industrial environments.
  • NEMA 4 Rated Protection: Weather-resistant enclosure designed to operate in harsh indoor and outdoor industrial conditions.
  • Multiple Detection Options: Configurable detection patterns optimize performance for specific application requirements.
  • FALCON FAMILY Series: Part of BEA's premier industrial sensor family including FALCON, FALCON XL, and FALCON WIDE models for comprehensive coverage options.

Technical Specifications

  • Technology: Microwave Doppler Radar
  • Radiated Frequency: 24.150 GHz
  • Transmitter Radiated Power: < 20 dBm EIRP
  • Radiated Power Density: < 5 mW / cm2
  • Detection Mode: Motion
  • Detection Zone (W x D): Falcon: 156 x 192 in (13 x 16 ft) @ 192 in | Falcon XL: 156 x 78 in (13 x 6.5 ft) @ 98.4 in | Falcon Wide: 360 x 132 in (30 x 11 ft) @ 252 in
  • Tilt Angles: 0 deg. - 180 deg.
  • Output: Relay (free of potential change-over contact)
  • Max. Contact Voltage: 42 VAC / VDC
  • Max. Contact Current: 1 A (resistive)
  • Max. Switching Power: 30 W (DC); 60 VA (AC)
  • Minimum Detection Speed: 2 in / s
  • LEDs: Green: Value indication | Red: Detection state & parameter indication
  • Mains Frequency: 50 - 60 Hz
  • Supply Voltage: 12 - 24 VAC; +/-10% | 12 - 24 VDC; 30% / -10%
  • Max Power Consumption: < 2 W
  • Mounting Height: Falcon: 138 - 276 in (11.5 - 23 ft) | Falcon XL: 78 - 138 in (6.5 - 11.5 ft) | Falcon Wide: 138 - 252 in (11.5 - 21 ft)
  • Dimensions: 3.75 in (W) x 4 in (H) x 5 in (D)
  • Materials: ABS & Polycarbonate
  • Temperature Range: -22 deg. F - 140 deg. F
  • Degree of Protection: NEMA 4 / IP65
  • Norm Conformance: EMC: 2004/108/EC; R&TTE: 1999/5/EC

Installation & Operation

  1. Verify electrical requirements match available power supply. Confirm 12 to 24 V AC/DC voltage and current capacity before proceeding.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Mount the unit at the specified height between 6.5' and 11.5' ensuring adequate clearance for wiring access, ventilation, and future service requirements.
  4. Route and connect the 33' cable according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
  5. Configure detection options and operational settings per application requirements for optimal motion sensing performance.
  6. Restore power and test all functions including normal operation, detection patterns, and integration with connected door or gate systems.
  7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

  • Automatic Industrial Door Systems
  • Vehicle Gate and Barrier Control
  • Loading Dock Safety Systems
  • Warehouse Entry Detection
  • Industrial Facility Access Points
  • Vehicle Detection Systems
  • Warning Indication Applications

Weatherized Construction

The FALCON XL features NEMA 4 rated enclosure construction specifically designed for harsh industrial environments. This weatherized design enables reliable operation in both indoor and outdoor applications where exposure to moisture, dust, and temperature extremes is a concern.

Why Choose BEA Quality?

BEA FALCON FAMILY motion sensors deliver professional-grade reliability with NEMA 4 rated construction and advanced microwave doppler radar technology. The FALCON XL is specifically engineered for demanding industrial applications where dependable motion detection is essential for safety and operational efficiency. BEA's premier sensor technology provides the performance and durability required for critical industrial automation systems.

Product Specs

Product Type:
Motion Sensor
Series:
FALCON FAMILY
Subcategory:
Sensors, Switches, Relays and Timers
Commercial/Residential:
Commercial
Electronic:
Yes
Product Group:
Electronic Access Controls
Product Subgroup:
Sensors, Switches, Relays and Timers
Technology:
Microwave Doppler Radar
Product Category:
Electronic Access Control
Department:
Door Hardware

BEA BEA-10FALCONXL – Frequently Asked Questions

1) What mounting height does the BEA FALCON XL motion sensor need, and what do I use if my door header is higher?
The FALCON XL mounts between 78 and 138 inches (6.5 to 11.5 ft). Above that, the standard FALCON covers 138 to 276 inches (11.5 to 23 ft) and the FALCON WIDE covers 138 to 252 inches (11.5 to 21 ft). Mounting height is the first thing to settle on a microwave sensor, because the detection field is aimed from the header down and a unit hung outside its range will not put the pattern where the traffic is.
2) How big an area does the BEA 10FALCONXL detect, and will it cover a wide loading dock opening?
At a 98.4 inch mounting height the FALCON XL throws a 156 x 78 inch field, which is 13 ft wide by 6.5 ft deep. That is a single-lane pattern. For a wide opening, the FALCON WIDE gives 360 x 132 in (30 x 11 ft) at 252 in, and the standard FALCON gives 156 x 192 in (13 x 16 ft) at 192 in when you need depth rather than width. Pick by the opening width first, then confirm your header height supports that model.
3) Can the BEA FALCON XL sensor be mounted outdoors on an exterior dock door or gate?
Yes. The enclosure is NEMA 4 / IP65 and the unit is rated from -22 to 140 deg F, so wash-down, driven rain, dust and cold-storage temperatures are within its range. The housing is ABS and polycarbonate. That rating is why it gets used on vehicle gates and loading docks rather than an indoor-only sensor.
4) What voltage does the BEA 10FALCONXL run on and can I power it from my existing door operator?
The FALCON XL takes 12 to 24 VAC (+/-10%) or 12 to 24 VDC (+30% / -10%) at 50 to 60 Hz, and draws under 2 W. Most automatic door and gate operators have a 24 V accessory output that covers it, so in practice you are running it off the operator rather than pulling a separate supply. Confirm your operator's accessory terminal is inside that window before you land wires.
5) What kind of output does the BEA FALCON XL sensor give, and will it drive my gate controller input?
Output is a dry relay contact, a potential-free change-over, so you get both normally open and normally closed and it drops into almost any operator or controller input without matching voltages. Contact limits are 42 VAC/VDC, 1 A resistive, 30 W DC or 60 VA AC. That is a signal contact, not a load contact, so do not switch a motor or a strike directly through it. Anything heavier goes through an interposing relay.
6) Should I use a microwave motion sensor like the FALCON XL or an active infrared presence sensor on my industrial door?
Microwave doppler radar, which is what the FALCON XL uses, detects movement, not a stationary object. It reacts to anything crossing the field at 2 in/s or faster, which is what you want for activation: a truck, a forklift or a person approaching the opening. It will not hold a door open for something parked in the doorway. If your job is presence protection in the door path, that is a different sensor type. Use the FALCON XL as the activation device and add presence safety separately where the application calls for it.
7) How much cable comes with the BEA 10FALCONXL and do I need a junction box at the header?
33 feet of cable ships with the sensor, which is normally enough to get from a header-mounted unit down to an operator or control panel without splicing. Physical footprint is 3.75 in W x 4 in H x 5 in D, so plan the mounting surface and the clearance for the tilt adjustment around that.
8) Can I aim the BEA FALCON XL sensor away from the door to stop cross traffic false triggers?
The head tilts through 0 to 180 degrees, so you can pitch the field down and out to keep it off passing traffic, and the detection pattern itself is configurable. Two LEDs help during setup: green for value indication and red for detection state and parameter indication, so you can walk the zone and watch the red LED to confirm where the field actually lands before you close it up.
9) Is the BEA FALCON XL a commercial-duty sensor or a residential garage door part?
This is commercial equipment, used for automatic industrial doors, vehicle gates, loading dock systems, warehouse entry and access points. The NEMA 4 housing, the dry-contact output and the 12 to 24 V AC/DC input are all built around commercial operator and gate controller wiring, not a residential garage opener's proprietary accessory terminals.
