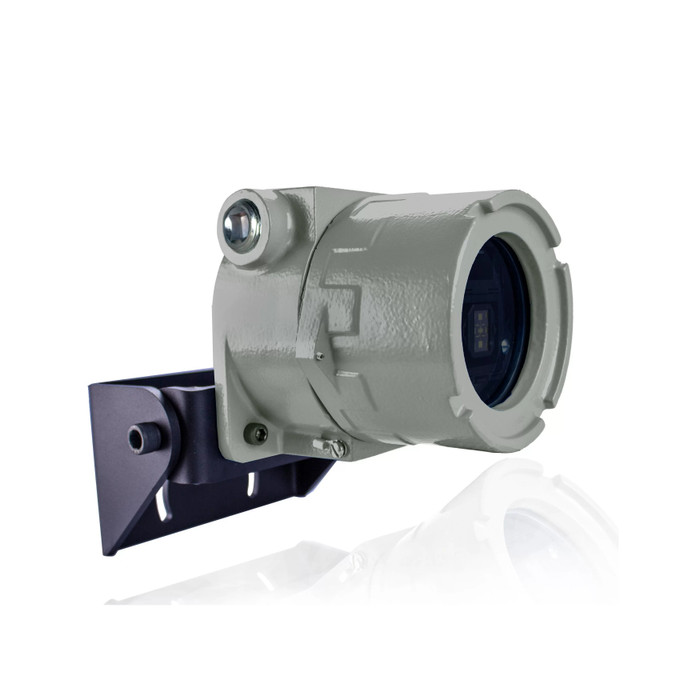

BEA 10FALCONEX100 FALCON EX Explosion-Proof Motion Sensor with Microwave Radar Technology

BEA 10FALCONEX100 FALCON EX Explosion-Proof Motion Sensor with Microwave Radar Technology

Professional Explosion-Proof Motion Detection for Hazardous Environments

The BEA FALCON EX motion sensor combines advanced microwave radar technology with explosion-proof and flame-proof housing designed for demanding industrial applications. This professional-grade sensor operates on 12 to 24V AC/DC power and features standard mounting heights from 11-1/2 feet to 23 feet. The NEMA 4X waterproof enclosure achieves UL Class I, Div. 1, Groups B, C, D; Class II, Div. 1 & 2, Groups E, F, G; and Class III certifications for safe operation in chemical manufacturing, petroleum refining, and agricultural environments.

Professional Features & Benefits

• Explosion-Proof Housing: NEMA 4X waterproof rated enclosure with IP66 protection designed for hazardous location compliance and maximum safety.
• Flexible Mounting Heights: Standard mounting range from 11-1/2 feet to 23 feet accommodates various industrial facility configurations and detection requirements.
• Microwave Radar Technology: Advanced Doppler radar detection provides reliable motion sensing performance in challenging environmental conditions.
• Dual Voltage Operation: 12 to 24V AC/DC power compatibility offers flexible installation options for existing electrical systems.
• Hazardous Location Certified: UL Class I, Div. 1, Groups B, C, D; Class II, Div. 1 & 2, Groups E, F, G; and Class III certifications ensure safe operation in explosive atmospheres.
• Extended Cable Length: 100 ft cable provides installation flexibility for remote mounting locations and control panel connections.
• Industrial-Grade Construction: Flame-proof housing design withstands harsh industrial environments including chemical exposure and extreme temperatures.

Technical Specifications

• Technology: Microwave Doppler Radar
• Radiated Frequency: 24.150 GHz
• Transmitter Radiated Power: < 20 dBm EIRP
• Radiated Power Density: < 5 mW / cm2
• Detection Mode: Motion
• Detection Zone (W x D): Falcon EX 100: 156 x 192 in (13 x 16 ft) @ 192 in | Falcon EX XL 100: 156 x 78 in (13 x 6.5 ft) @ 98.4 in | Falcon EX W 100: 360 x 132 in (30 x 11 ft) @ 252 in
• Tilt Angles: -90 deg. - 30 deg. in elevation
• Output: Relay (free of potential change-over contact)
• Max. Contact Voltage: 42 VAC / VDC
• Max. Contact Current: 1 A (resistive)
• Max. Switching Power: 30 W (DC); 60 VA (AC)
• Minimum Detection Speed: 2 in / s
• LED Signals: Green: Value indication | Red: Detection state & parameter indication
• Mains Frequency: 50 - 60 Hz
• Supply Voltage: 12 - 24 VAC; +/-10% | 12 - 24 VDC; 30% / -10%
• Maximum Power Consumption: < 2 W
• Mounting Height: Falcon EX 100: 138 - 276 in (11.5 - 23 ft) | Falcon EX XL 100: 78 - 138 in (6.5 - 11.5 ft) | Falcon EX W 100: 138 - 252 in (11.5 - 21 ft)
• Dimensions (Housing & Bracket): 7.5 in (W) x 5.5 in (H) x 9 in (D)
• Electrical Access NPT Pipe Thread: 3/4 in
• Weight: 11 lbs
• Cable Length: 100 ft or 30 ft
• Housing / Bracket Material: Copper-free Aluminum / Aluminum
• Temperature Range: -22 deg. F - 140 deg. F
• Degree of Protection: UL Class I, Div. 1, Groups B,C,D; Class II, Div. 1&2, Groups E,F,G; Class III; CENELEC: EExd IIC; NEMA 4X, IP66
• Norm Conformance: R&TTE: 1999/5/EC; EMC: 2004/108/EC

Installation & Operation

1. Verify electrical requirements match available power supply. Confirm 12 to 24V AC/DC voltage and current capacity before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures for hazardous locations.
3. Mount the unit at the specified height between 11-1/2 feet and 23 feet ensuring adequate clearance for detection pattern and future service requirements.
4. Route the 100 ft cable through appropriate explosion-proof conduit and use certified hazardous location connectors and wiring methods.
5. Configure operational settings per application requirements and verify proper detection field coverage.
6. Restore power and test all functions including normal operation, detection sensitivity, and integration with connected access control systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting for hazardous location applications.

Professional Applications

• Chemical Manufacturing Facilities
• Petroleum Refining Operations
• Agricultural Processing Plants
• Pharmaceutical Production Areas
• Paint and Coating Manufacturing
• Grain Handling and Storage Facilities
• Industrial Solvent Processing

Why Choose BEA Quality?

BEA FALCON EX motion sensors deliver professional-grade reliability with explosion-proof construction certified for the most demanding hazardous location applications. The microwave radar technology and NEMA 4X housing provide dependable performance in chemical manufacturing, petroleum refining, and agricultural environments where safety and reliability are critical. Engineered for industrial applications where explosive atmospheres require specialized detection equipment.
