BEA BEA 10EMB - Angled Mounting Bracket for EAGLE Family Motion Sensors 10EMB

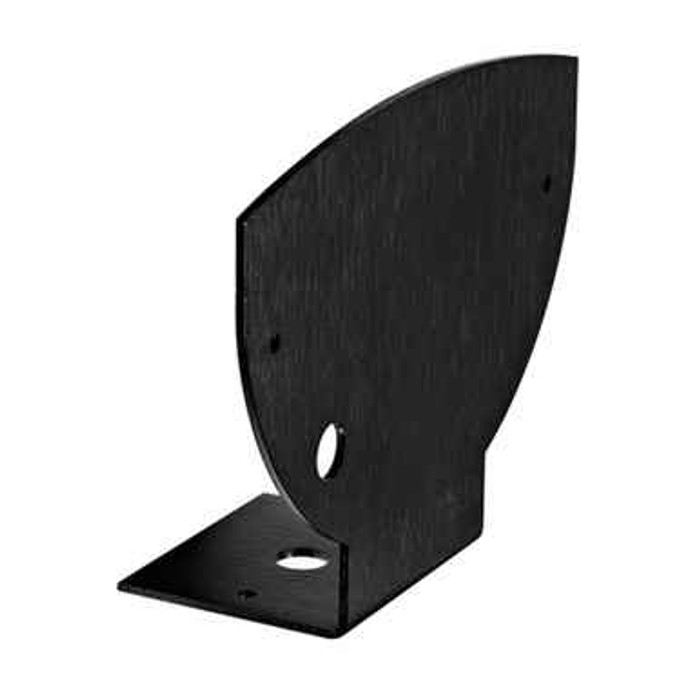

BEA 10EMB Angled Mounting Bracket for EAGLE Family Motion Sensors

(No reviews yet) Write a Review

Model: BEA-10EMB

In Stock (leaves warehouse same day if ordered before 3pm ET)

$29.58
$28.45
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

BEA 10EMB Angled Mounting Bracket for EAGLE Family Motion Sensors

Professional Mounting Solution for Space-Constrained Applications

The BEA 10EMB angled mounting bracket provides a specialized mounting solution for EAGLE family motion sensors in applications where standard overhead mounting space is not available. This professional-grade bracket enables proper sensor positioning and optimal detection coverage even in challenging installation environments. Designed specifically for the EAGLE series, this bracket ensures reliable sensor performance while accommodating architectural constraints.

Professional Features & Benefits

  • Space-Saving Design: Angled configuration allows installation in applications without required space above the door for regular mounting.
  • EAGLE Series Compatibility: Specifically engineered for use with EAGLE family motion sensors for guaranteed fit and performance.
  • Optimal Sensor Positioning: Angled design maintains proper detection coverage while working within space limitations.
  • Professional Installation: Enables compliant sensor mounting in challenging architectural environments.
  • Durable Construction: Built to support motion sensor weight and maintain stable positioning over time.
  • Versatile Application: Ideal for retrofit installations and space-constrained new construction projects.

Technical Specifications

  • Technology: Microwave Doppler Radar
  • Detection Mode: Motion
  • Transmitter Frequency: 24.150 GHz
  • Transmitter Radiated Power: < 20 dBm EIRP
  • Transmitter Power Density: < 5 mW / cm2
  • Min. Detection Speed: 2 in / s (measuring based on optimal conditions)
  • Mounting Height: Eagle: 72 in - 156 in (6 ft - 13 ft) | Eagle HM: 156 in - 198 in (13 ft - 16.5 ft)
  • Supply Voltage: 12 - 24 VAC +/-10%; 12 - 24 VDC 30% / -10%
  • Mains Frequency: 50 - 60 Hz
  • Maximum Power Consumption: < 2 W
  • Output: Relay (free of potential change-over contact)
  • Max. Contact Current: 1 A (resistive)
  • Max. Contact Voltage: 42 VAC / VDC
  • Max. Switching Power: 30 W (DC) / 60 VA (AC)
  • Cable Length: Eagle: 96 in (8 ft) | Eagle HM: 96 in (8 ft)
  • Degree of Protection: IP54
  • Tilt Angles: 0 deg. - 90 deg. vertical; -30 deg. - 30 deg. lateral
  • Norm Conformance: R&TTE 1999/5/EC; EMC 2004/108/EC; LVD 2006/95/EC; RoHS 2 2011/65/EU

Installation & Operation

This mounting bracket is designed for use with compatible EAGLE family motion sensors. Refer to the parent device installation instructions and manufacturer documentation for proper integration. Ensure compatibility with existing hardware before installation.

Professional Applications

  • Commercial Building Automatic Door Systems
  • Retail Store Entry Points
  • Healthcare Facility Access Control
  • Educational Institution Safety Systems
  • Industrial Facility Monitoring
  • Retrofit Installation Projects
  • Space-Constrained New Construction

Why Choose BEA Quality?

BEA motion sensor accessories deliver professional-grade reliability with precision engineering designed for demanding commercial applications. The 10EMB angled mounting bracket provides the flexibility needed to achieve proper sensor installation even in challenging architectural environments. Engineered for dependable performance where standard mounting solutions are not feasible.

Manufacturer Resources

BEA Product Catalog

Product Specs

Product Type:
Mounting Bracket
Subcategory:
Parts and Accessories
Commercial/Residential:
Commercial
Electronic:
Yes
Product Group:
Electronic Access Controls
Product Subgroup:
Parts and Accessories
Series:
EAGLE
Product Category:
Electronic Access Control
Department:
Door Hardware

BEA BEA-10EMB – Frequently Asked Questions

1) What is the BEA 10EMB bracket used for?
The 10EMB is an angled mounting bracket for BEA EAGLE family motion sensors. It is for openings where there isn't enough space above the door to mount the sensor the normal way. The angle holds the sensor at a position that keeps the detection pattern usable when a header, transom, or low soffit rules out standard overhead mounting.
2) Will the 10EMB bracket work with any BEA motion sensor, or only EAGLE models?
It is built for the EAGLE family specifically, including the EAGLE and EAGLE HM. It is not a universal header bracket, so if the sensor on the door is from another BEA line, check that it is an EAGLE before ordering this one.
3) What mounting height does an EAGLE sensor need, and does that change my bracket decision?
The standard EAGLE mounts from 72 to 156 inches (6 to 13 feet); the EAGLE HM covers 156 to 198 inches (13 to 16.5 feet). Pick the sensor by header height first. The 10EMB is what you add when the height is workable but there is no clear flat surface above the door to take the sensor in its normal orientation.
4) Can I aim the sensor after mounting it on the angled bracket?
Yes. The EAGLE head itself adjusts 0 to 90 degrees vertically and -30 to +30 degrees laterally, so once the bracket sets the base angle you still have full aiming range to place the detection field where you want it on the approach.
5) Can I use this on a retrofit where the old sensor was surface mounted on the header?
That is one of the main cases for it. On retrofits where the existing header is occupied by the operator, has a transom, or has no usable flat face, the angled bracket gets the EAGLE into position without cutting new overhead space. Confirm the replacement sensor is an EAGLE, since the bracket is cut for that family.
6) Is the 10EMB bracket suitable for an exterior entrance?
The EAGLE sensor it carries is rated IP54, which covers dust and splashing water typical of a covered commercial entrance. The bracket is a mounting accessory, so give it the same protection from direct weather that you would give the sensor.
7) Is the 10EMB bracket rated for commercial use?
Yes, it is a commercial-duty item, sold for automatic door systems in retail, healthcare, education, and industrial facilities where the EAGLE microwave motion sensor is the activation device.
