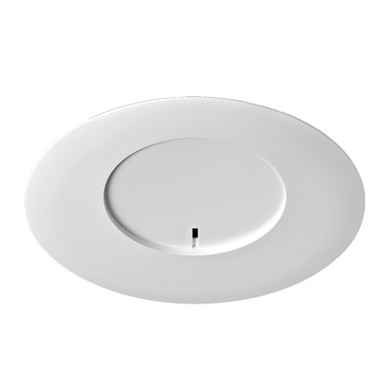

BEA BEA 10ECA - Recessed Ceiling Enclosure for EAGLE Family Motion Sensors 10ECA

BEA 10ECA EAGLE Series Recessed Ceiling Enclosure for Motion Sensors

(No reviews yet) Write a Review

Model: BEA-10ECA

In Stock (leaves warehouse same day if ordered before 3pm ET)

$60.96
$44.27
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

BEA 10ECA EAGLE Series Recessed Ceiling Enclosure for Motion Sensors

Professional Ceiling Mount Adapter for EAGLE Motion Detection Systems

The BEA 10ECA is a specialized recessed ceiling enclosure designed specifically for BEA’s EAGLE family microwave motion sensors. This professional-grade ceiling adapter enables clean, flush-mount installation of EAGLE series motion detection devices in commercial ceiling applications. The enclosure provides secure mounting while maintaining optimal sensor performance and aesthetic integration with ceiling systems.

Professional Features & Benefits

  • EAGLE Series Compatibility: Specifically engineered for BEA’s EAGLE family microwave motion sensors for guaranteed fit and performance.
  • Recessed Installation Design: Flush-mount configuration provides clean ceiling integration while protecting sensor components.
  • Commercial-Grade Construction: Durable enclosure materials designed for professional access control installations.
  • Optimal Sensor Performance: Enclosure design maintains proper microwave sensor detection patterns and range.
  • Professional Appearance: Clean ceiling integration enhances facility aesthetics while providing reliable motion detection.
  • Easy Installation: Purpose-built design simplifies mounting and sensor integration procedures.

Technical Specifications

  • Technology: Microwave Doppler Radar
  • Detection Mode: Motion
  • Transmitter Frequency: 24.150 GHz
  • Transmitter Radiated Power: < 20 dBm EIRP
  • Transmitter Power Density: < 5 mW / cm2
  • Min. Detection Speed: 2 in / s (measuring based on optimal conditions)
  • Mounting Height: Eagle: 72 in - 156 in (6 ft - 13 ft) | Eagle HM: 156 in - 198 in (13 ft - 16.5 ft)
  • Supply Voltage: 12 - 24 VAC +/-10%; 12 - 24 VDC 30% / -10%
  • Mains Frequency: 50 - 60 Hz
  • Maximum Power Consumption: < 2 W
  • Output: Relay (free of potential change-over contact)
  • Max. Contact Current: 1 A (resistive)
  • Max. Contact Voltage: 42 VAC / VDC
  • Max. Switching Power: 30 W (DC) / 60 VA (AC)
  • Cable Length: Eagle: 96 in (8 ft) | Eagle HM: 96 in (8 ft)
  • Degree of Protection: IP54
  • Tilt Angles: 0 deg. - 90 deg. vertical; -30 deg. - 30 deg. lateral
  • Norm Conformance: R&TTE 1999/5/EC; EMC 2004/108/EC; LVD 2006/95/EC; RoHS 2 2011/65/EU

Installation & Operation

This ceiling adapter is designed for use with compatible BEA EAGLE family motion sensors. Refer to the parent device installation instructions and manufacturer documentation for proper integration. Ensure compatibility with existing hardware before installation.

Professional Applications

  • Commercial Building Access Control Systems
  • Retail Automatic Door Applications
  • Healthcare Facility Motion Detection
  • Educational Institution Safety Systems
  • Industrial Facility Monitoring
  • Office Building Entry Systems
  • Multi-Tenant Commercial Properties

Why Choose BEA Quality?

BEA ceiling adapters deliver professional-grade reliability with purpose-built design for EAGLE series motion sensor integration. Engineered for demanding commercial applications where dependable motion detection and clean aesthetic presentation are essential. The specialized enclosure design ensures optimal sensor performance while providing secure ceiling-mount installation.

Manufacturer Resources

BEA Product Catalog

Product Specs

Product Type:
Ceiling Adapter
Subcategory:
Parts and Accessories
Commercial/Residential:
Commercial
Electronic:
Yes
Product Group:
Electronic Access Controls
Product Subgroup:
Parts and Accessories
Series:
EAGLE
Product Category:
Electronic Access Control
Department:
Door Hardware

BEA BEA-10ECA – Frequently Asked Questions

1) Does the BEA 10ECA come with a motion sensor, or do I order the sensor separately?
The 10ECA is the recessed ceiling enclosure only. It's the housing that lets a BEA EAGLE family microwave motion sensor sit flush in the ceiling, so the sensor itself is a separate order. If you're specifying an opening from scratch, you need both the EAGLE sensor and this enclosure; if you already have the sensor on the job, the 10ECA is just the ceiling mounting hardware.
2) Will the BEA 10ECA ceiling enclosure work with any overhead motion sensor, or only BEA EAGLE?
EAGLE only. The 10ECA is built specifically for BEA's EAGLE family microwave motion sensors, and there's no cross-brand fit claim behind it. If the header or ceiling unit you're replacing is another manufacturer's overhead presence or motion sensor, this enclosure is the wrong part.
3) How high can the ceiling be if I recess a BEA EAGLE sensor in the 10ECA enclosure?
That's decided by which EAGLE you mount in it. The standard EAGLE is rated for mounting heights of 72 to 156 inches (6 to 13 feet), and the EAGLE HM covers 156 to 198 inches (13 to 16.5 feet). So a typical 9 or 10 foot commercial ceiling takes the standard EAGLE; a warehouse or atrium ceiling above 13 feet needs the HM version.
4) What power supply and wiring do I need for a ceiling-mounted BEA EAGLE motion sensor?
The EAGLE runs on 12 to 24 VAC (+/-10%) or 12 to 24 VDC, at 50 to 60 Hz mains frequency, and draws under 2 watts, so it powers off the door operator's low-voltage supply rather than a dedicated line. Output is a dry relay contact (free of potential change-over) rated 1 A resistive, 42 VAC/VDC max, with switching power up to 30 W DC or 60 VA AC. Factory cable is 96 inches (8 feet), which is what you have to reach the operator or control from the ceiling opening, so plan your junction box within that run.
5) Should I recess the EAGLE sensor in a ceiling enclosure or surface mount it on the header?
Recessing with the 10ECA is what you pick when the sensor has to sit flush in a finished ceiling, typically a lobby, retail entry, or healthcare corridor where a surface box hanging off the header is not acceptable. The trade-off is that the enclosure has to be cut into the ceiling and the sensor's aiming happens inside it. Surface mounting on the door header is the simpler route on back-of-house and industrial openings where appearance doesn't drive the job, and it avoids ceiling coordination entirely.
6) Can I still aim the EAGLE sensor after it's recessed in the ceiling?
Yes. The EAGLE adjusts 0 to 90 degrees vertically and -30 to +30 degrees laterally, so you can angle the detection field toward the approach path after the enclosure is set in the ceiling. That range is what lets one ceiling position cover an off-center approach instead of forcing you to move the cut.
7) Is a recessed EAGLE ceiling sensor suitable for a covered entry or a wash-down area?
The EAGLE carries an IP54 degree of protection, which covers dust and splashing water, so a covered vestibule or an entry canopy is within its rating. IP54 is not a submersion or pressure-wash rating, so a direct hose-down cleaning routine is outside what it's rated for.
8) Will a BEA EAGLE microwave sensor pick up someone walking slowly toward the door?
The EAGLE is microwave Doppler radar in motion detection mode, with a minimum detection speed of 2 inches per second under optimal conditions. That catches normal and slow walking approaches, but it is motion-only, so a person who stops in the field goes undetected. On openings where someone stands still in the doorway (wheelchair users at a slow approach, carts being loaded), pair it with a presence or safety sensor rather than relying on the microwave alone.
9) Is the BEA 10ECA ceiling enclosure rated for commercial installations?
Yes, it's a commercial-duty part, catalogued for electronic access control work on automatic doors in retail, healthcare, education, and multi-tenant office buildings. The EAGLE sensor it houses conforms to R&TTE 1999/5/EC, EMC 2004/108/EC, LVD 2006/95/EC, and RoHS 2 2011/65/EU.
10) Will a recessed EAGLE microwave sensor interfere with other radar sensors on nearby doors?
The EAGLE transmits at 24.150 GHz with radiated power under 20 dBm EIRP and power density under 5 mW/cm2. That's low-power, narrow-band microwave, so it's the standard frequency band for automatic door radar. Where two openings sit close together, aim the units using the sensor's tilt adjustment so their detection fields don't overlap into each other's approach path.
