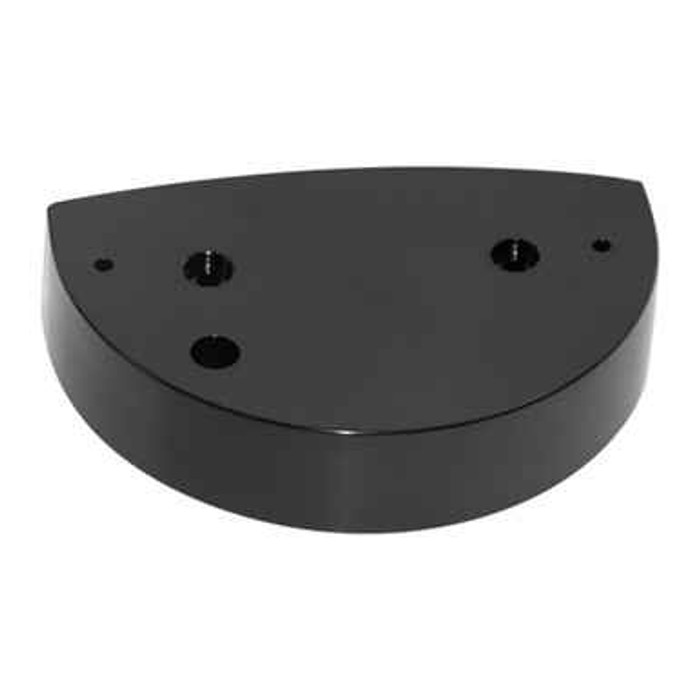

BEA BEA 10EAGLESPACER - Spacer Bracket for EAGLE Family Motion Sensors, For Some Bi-Fold Applications 10EAGLESPACER

BEA 10EAGLESPACER EAGLE Family Motion Sensor Spacer Bracket for Bi-Fold Door Applications

(No reviews yet) Write a Review

Model: BEA-10EAGLESPACER
From the EAGLE Collection

In Stock (leaves warehouse same day if ordered before 3pm ET)

$34.68
$31.27
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

BEA 10EAGLESPACER EAGLE Family Motion Sensor Spacer Bracket for Bi-Fold Door Applications

Professional Motion Sensor Mounting Accessory

The BEA 10EAGLESPACER is a specialized spacer bracket designed for EAGLE Family motion sensors in applications where door frames or other objects interfere with sensor positioning. This mounting accessory enables proper sensor placement for bi-fold door applications and other installations where standard mounting may be obstructed from below the sensor.

Professional Features & Benefits

  • Interference Solution: Specifically designed to overcome door frame or object interference from below the sensor for optimal positioning.
  • EAGLE Family Compatibility: Engineered for use with BEA EAGLE series motion sensors for seamless integration.
  • Bi-Fold Door Applications: Optimized for bi-fold door installations where standard mounting may not provide adequate clearance.
  • Professional Installation: Provides proper sensor spacing and alignment for reliable motion detection performance.
  • Commercial-Grade Construction: Built for demanding commercial electronic access control applications.

Technical Specifications

  • Technology: Microwave Doppler Radar
  • Detection Mode: Motion
  • Transmitter Frequency: 24.150 GHz
  • Transmitter Radiated Power: < 20 dBm EIRP
  • Transmitter Power Density: < 5 mW / cm2
  • Min. Detection Speed: 2 in / s (measuring based on optimal conditions)
  • Mounting Height: Eagle: 72 in - 156 in (6 ft - 13 ft) | Eagle HM: 156 in - 198 in (13 ft - 16.5 ft)
  • Supply Voltage: 12 - 24 VAC +/-10%; 12 - 24 VDC 30% / -10%
  • Mains Frequency: 50 - 60 Hz
  • Maximum Power Consumption: < 2 W
  • Output: Relay (free of potential change-over contact)
  • Max. Contact Current: 1 A (resistive)
  • Max. Contact Voltage: 42 VAC / VDC
  • Max. Switching Power: 30 W (DC) / 60 VA (AC)
  • Cable Length: Eagle: 96 in (8 ft) | Eagle HM: 96 in (8 ft)
  • Degree of Protection: IP54
  • Tilt Angles: 0 deg. - 90 deg. vertical; -30 deg. - 30 deg. lateral
  • Norm Conformance: R&TTE 1999/5/EC; EMC 2004/108/EC; LVD 2006/95/EC; RoHS 2 2011/65/EU

Installation & Operation

This spacer bracket is designed for use with compatible BEA EAGLE Family motion sensors. Refer to the parent device installation instructions and manufacturer documentation for proper integration. Ensure compatibility with existing hardware before installation.

Professional Applications

  • Commercial Building Automatic Door Systems
  • Retail Store Entrance Solutions
  • Healthcare Facility Access Points
  • Educational Institution Entry Systems
  • Industrial Facility Motion Detection
  • Bi-Fold Door Installations
  • Electronic Access Control Upgrades

Why Choose BEA Quality?

BEA electronic access control components deliver professional-grade reliability for demanding commercial applications. The 10EAGLESPACER bracket provides the precise positioning solution needed for optimal EAGLE Family motion sensor performance in challenging installation environments. Engineered for commercial applications where dependable motion detection is essential.

Manufacturer Resources

BEA Product Catalog

Product Specs

Product Type:
Spacer Bracket
Subcategory:
Parts and Accessories
Commercial/Residential:
Commercial
Electronic:
Yes
Product Group:
Electronic Access Controls
Product Subgroup:
Parts and Accessories
Series:
EAGLE
Collection:
EAGLE
Product Category:
Electronic Access Control
Department:
Door Hardware

BEA BEA-10EAGLESPACER – Frequently Asked Questions

1) What does the BEA 10EAGLESPACER bracket actually do on a bi-fold door installation?
The 10EAGLESPACER is a mounting spacer for BEA EAGLE Family motion sensors, used where a door frame or another object below the sensor gets in the way of proper aim. On bi-fold doors the leaves and frame often intrude into the detection field from underneath; the bracket offsets the sensor so it can be positioned and tilted correctly. It is a mounting accessory only, not a sensor.
2) Will the 10EAGLESPACER fit my BEA sensor, or is it only for the EAGLE series?
It is built for the BEA EAGLE Family sensors, including the Eagle and Eagle HM. If the sensor on the header is a different BEA line, this bracket is not the accessory for it.
3) Does adding the spacer bracket change the mounting height range for an EAGLE sensor?
The sensor's own height range still governs the install: Eagle mounts at 72 to 156 inches (6 to 13 ft), and Eagle HM at 156 to 198 inches (13 to 16.5 ft). The bracket is there to clear obstructions and let you set the aim within that range, not to extend it.
4) How much tilt adjustment do I have when aiming an EAGLE sensor on this bracket?
The EAGLE sensor head adjusts 0 to 90 degrees vertically and -30 to +30 degrees laterally. On a bi-fold opening where the frame blocks the field from below, the spacer plus that lateral range is usually what gets the pattern off the moving leaf.
5) Do I need extra wiring or a different power supply when I add the spacer bracket?
No change to the electrical side. The EAGLE runs on 12 to 24 VAC or 12 to 24 VDC, draws under 2 W, and ships with a 96 inch (8 ft) cable. The bracket adds a small amount of offset, so confirm that 8 ft still reaches your controller from the new position before you cut anything.
6) Is the 10EAGLESPACER suitable for an exterior or wash-down entrance?
The EAGLE sensor it supports is rated IP54, which covers dust and splashing water typical of a covered commercial entrance. Treat the bracket as part of that assembly and keep the installation within the sensor's protection rating.
7) Is this bracket rated for commercial automatic door use or is it a light-duty part?
It's a commercial electronic access control accessory, used on automatic door systems in retail entrances, healthcare access points, schools, and industrial facilities. Not a residential item.
8) Can the EAGLE switch my door operator relay directly through this install?
The EAGLE output is a relay with a potential-free change-over contact rated 1 A resistive, 42 VAC/VDC max, 30 W DC or 60 VA AC switching. That handles a standard operator activation input; anything heavier needs an interposing relay. Mounting on the spacer bracket does not affect the output.
