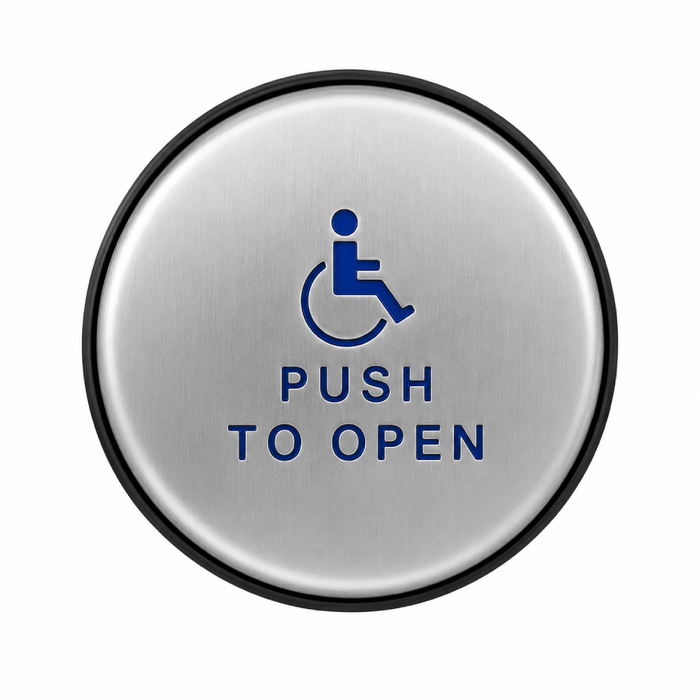

BEA 10EMR6X Panther Family 6" Round Wireless Push Plate with 433 MHz Technology

BEA 10EMR6X Panther Family 6" Round Wireless Push Plate with 433 MHz Technology

Professional Wireless Access Control Solution

The BEA 10EMR6X Panther Family push plate combines 6" round design with integrated 433 MHz wireless technology for enhanced installation flexibility. This weather-rated push plate features IP65 housing for outdoor environments and wash-down applications, with concealed fasteners for vandal resistance. ADA-compliant design enhances accessibility while eliminating hardwired installation requirements.

Professional Features & Benefits

• 6" Round Profile: Slim profile design provides optimal activation area while maintaining compact footprint for versatile mounting applications.
• 433 MHz Wireless Technology: Integrated wireless transmitter eliminates wiring requirements and reduces installation time while providing reliable signal transmission.
• Weather-Resistant Construction: IP65 rated housing creates weather resistant barrier enabling outdoor mounting and wash-down applications.
• Vandal-Resistant Design: Concealed fasteners minimize vandalism and unauthorized tampering for enhanced security.
• ADA Compliance: Meets accessibility requirements with variety of popular faceplate graphic options for clear identification.
• Installation Flexibility: Wireless design offers greater mounting flexibility in areas where hardwired push plates cannot be mounted.
• Integrated Mounting System: Includes integrated wireless transmitter and mounting box for complete installation solution.

Technical Specifications

• Transmitter Frequency: 433 MHz or 900 MHz
• Power (433 MHz): (1) 12 V Type A23
• Power (900 MHz): (2) CR2032
• Faceplate Material: 16 Gauge, 304 2B Stainless Steel
• Housing Material: ABS Plastic
• Mounting Options: Surface or bollard mount
• Dimensions (6 Inch Round): 6.33 in (dia.) x 1.45 in (D)
• Dimensions (4.75 Inch Round): 5.12 in (dia.) x 1.42 in (D)
• Dimensions (4.75 Inch Square): 5.12 in (W) x 5.12 in (H) x 1.42 in (D)
• Weight (6 Inch Round): 1.2 lbs
• Weight (4.75 Inch Round): 1.14 lbs
• Weight (4.75 Inch Square): 1.04 lbs
• Degree of Protection: NEMA 4 / IP65
• Certification: FCC IC Part 15 Approved

Installation & Operation

1. Verify wireless receiver compatibility with 433 MHz frequency before proceeding. Confirm signal range requirements for installation location.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including any configurable options per application requirements.
6. Restore power and test all functions including normal operation, alarm/alert functions, and integration with connected systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Security Systems
• Retail Loss Prevention
• Healthcare Facility Access Control
• Educational Institution Safety Systems
• Industrial Facility Monitoring
• Emergency Exit Compliance
• Outdoor Access Control Points

Weather-Resistant Design

IP65 rated housing provides comprehensive weather protection enabling reliable operation in outdoor environments and wash-down applications. The weather-resistant barrier protects internal components from moisture intrusion while maintaining consistent wireless signal transmission performance.

Why Choose BEA Quality?

BEA Panther Family push plates deliver professional-grade wireless access control with IP65 weather-resistant construction and vandal-resistant concealed fasteners. The integrated 433 MHz wireless technology eliminates installation complexity while providing reliable signal transmission for demanding commercial applications. Engineered for outdoor environments and high-traffic areas where dependable wireless performance is essential.
